Work Procedure

G06997270Courtesy of NISSAN NORTH AMERICA, INC.

*1:

When the same malfunction is detected in two consecutive trips, MIL will illuminate.
  1. CHECK DTC

    Check DTC.

    Is any DTC detected?

    YES

    Repair malfunction(s) and erase DTC. Refer to On Board Diagnosis Function , CONSULT Function .

    NO

    GO TO 2.

  2. CHECK PERMANENT DTC

    SYMBOL With CONSULT

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select "PERMANENT DTC STATUS" mode with CONSULT.

    SYMBOL With GST

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select Service $0A with GST.

    Is any permanent DTC detected?

    YES

    GO TO 3.

    NO

    END

  3. PERFORM DTC CONFIRMATION PROCEDURE

    Perform "DTC CONFIRMATION PROCEDURE" for DTCs which are the same as permanent DTCs stored in ECM. Refer to DTC Index .

    GO TO 4.

  4. CHECK PERMANENT DTC

    SYMBOL With CONSULT

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select "PERMANENT DTC STATUS" mode with CONSULT.

    SYMBOL With GST

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select Service $0A with GST.

    Is any permanent DTC detected?

    YES

    GO TO 1.

    NO

    END

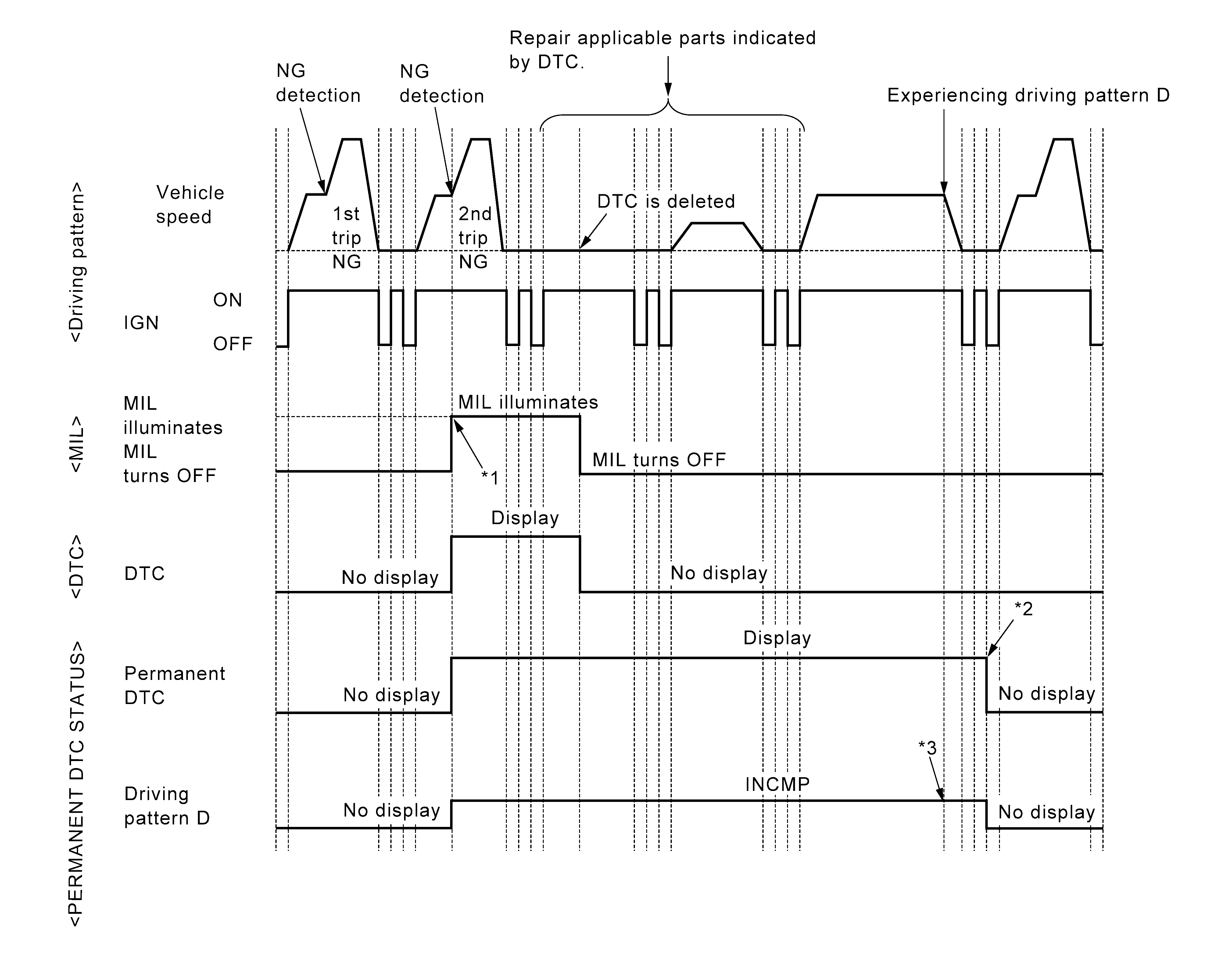

GNSILL0193149-149Courtesy of NISSAN NORTH AMERICA, INC.

*1:

When the same malfunction is detected in two consecutive trips, MIL will illuminate.

*2:

After experiencing driving pattern D, permanent DTC is erased.

*3:

Indication does not change unless the ignition switch is turned from ON to OFF twice even after experiencing driving pattern D.
NOTE: Drive the vehicle according to only driving patterns indicating "INCMP" in driving patterns D on the "PERMANENT DTC STATUS" screen.
  1. CHECK DTC

    Check DTC.

    Is any DTC detected?

    YES

    Repair malfunction(s) and erase DTC. Refer to CONSULT Function .

    NO

    GO TO 2.

  2. CHECK PERMANENT DTC

    SYMBOL With CONSULT

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select "PERMANENT DTC STATUS" mode with CONSULT.

    SYMBOL With GST

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select Service $0A with GST.

    Is any permanent DTC detected?

    YES

    GO TO 3.

    NO

    END

  3. DRIVE DRIVING PATTERN D
    CAUTION:
    • Always drive at a safe speed.
    • Never erase self-diagnosis results.
    • If self-diagnosis results are erased during the trip of driving pattern D, the counter of driving pattern D is reset.

    Drive the vehicle according to driving pattern D. Refer to Driving Pattern .

    GO TO 4.

  4. CHECK PERMANENT DTC

    SYMBOL With CONSULT

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select "PERMANENT DTC STATUS" mode with CONSULT.

    SYMBOL With GST

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select Service $0A with GST.

    Is any permanent DTC detected?

    YES

    GO TO 1.

    NO

    END



NOTE: Drive the vehicle according to only driving patterns indicating "INCMP" in driving patterns B and D on the "PERMANENT DTC STATUS" screen.
  1. CHECK DTC

    Check DTC.

    Is any DTC detected?

    YES

    Repair malfunction(s) and erase DTC. Refer to CONSULT Function .

    NO

    GO TO 2.

  2. CHECK PERMANENT DTC-1

    SYMBOL With CONSULT

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select "PERMANENT DTC STATUS" mode with CONSULT.

    SYMBOL With GST

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select Service $0A with GST.

    Is any permanent DTC detected?

    YES

    GO TO 3.

    NO

    END

  3. ERASE PERMANENT DTC-1
    1. Start the engine.
    2. Maintain the following conditions for 10 seconds or more.

      Accelerator pedal position

      : 0.0/8

      Selector lever

      : "D" POSITION

      Brake pedal

      : Depressed

      Vehicle speed

      : 0 km/h (0 MPH)

    GO TO 4.

  4. ERASE PERMANENT DTC-2
    1. Drive the vehicle.
    2. Maintain the following conditions for 30 seconds or more.

      Accelerator pedal position

      : 1.2/8

      Vehicle speed

      : 60 km/h (38 MPH) or more
    3. Stop the vehicle.

    GO TO 5.

  5. ERASE PERMANENT DTC-3
    1. Drive the vehicle.
    2. Maintain the following conditions for 30 seconds or more.

      Accelerator pedal position

      : 2.4/8

      Vehicle speed

      : 80km/h (50PH) or more
    3. Stop the vehicle.

    GO TO 4.

  6. ERASE PERMANENT DTC-4
    1. Drive the vehicle.
    2. Maintain the following conditions.

      Accelerator pedal position

      : Fully depressed

      Vehicle speed

      : 80km/h (50PH) or more
    3. Stop the vehicle.

    .

  7. CHECK PERMANENT DTC-2

    SYMBOL With CONSULT

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select "PERMANENT DTC STATUS" mode with CONSULT.

    SYMBOL With GST

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select Service $0A with GST.

    Is any permanent DTC detected?

    YES

    GO TO 1.

    NO

    END
