Exploded View

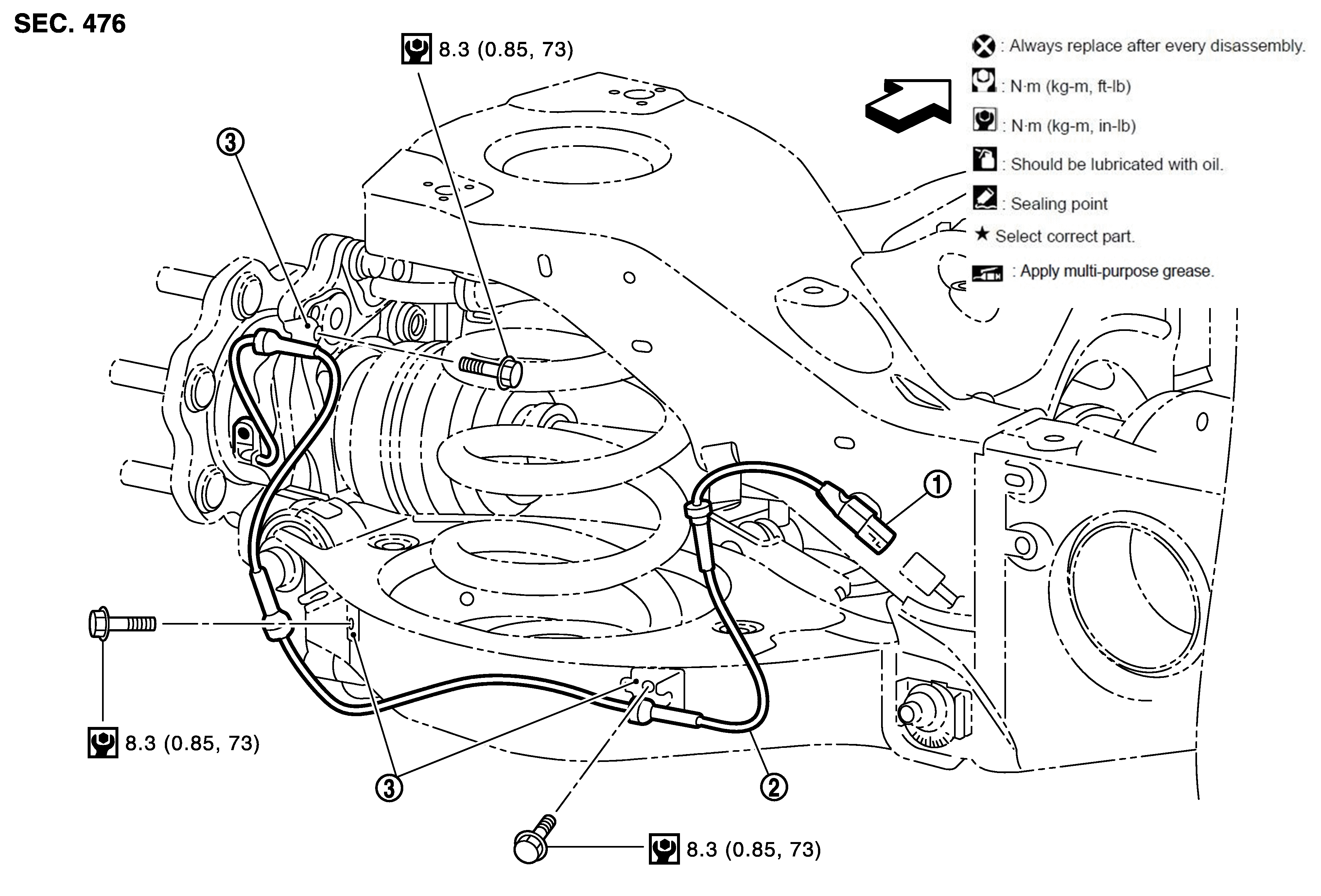

Fig 1: Rear Wheel Sensor With Torque Specifications
GNSJPFIC0200GB-200SYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear LH wheel sensor harness connector

SYMBOL

Rear LH wheel sensor

SYMBOL

Bracket

SYMBOL : Vehicle front

SYMBOL

: N.m (kg-m, in-lb)
NOTE: Rear RH wheel sensor is symmetrically opposite of LH.
