Exploded View

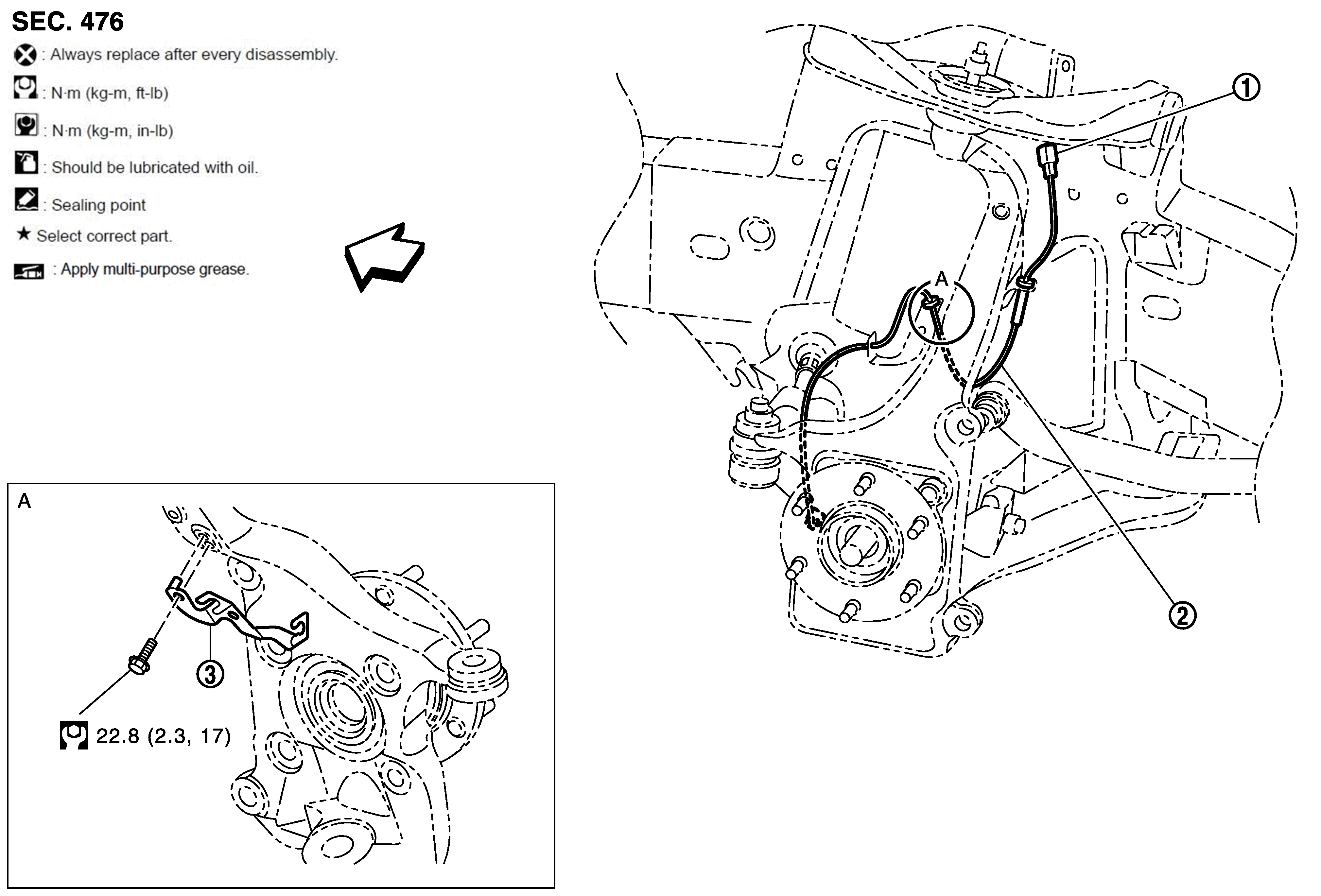

Fig 1: Front Wheel Sensor With Torque Specifications
GNSJPFIC0199GB-199SYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Front LH wheel sensor harness connector

SYMBOL

Front LH wheel sensor

SYMBOL

Bracket

SYMBOL : Vehicle front

SYMBOL

: N.m (kg-m, ft-lb)

NOTE: Front RH wheel sensor is symmetrically opposite of LH.
