EXHAUST SYSTEM : Exploded View

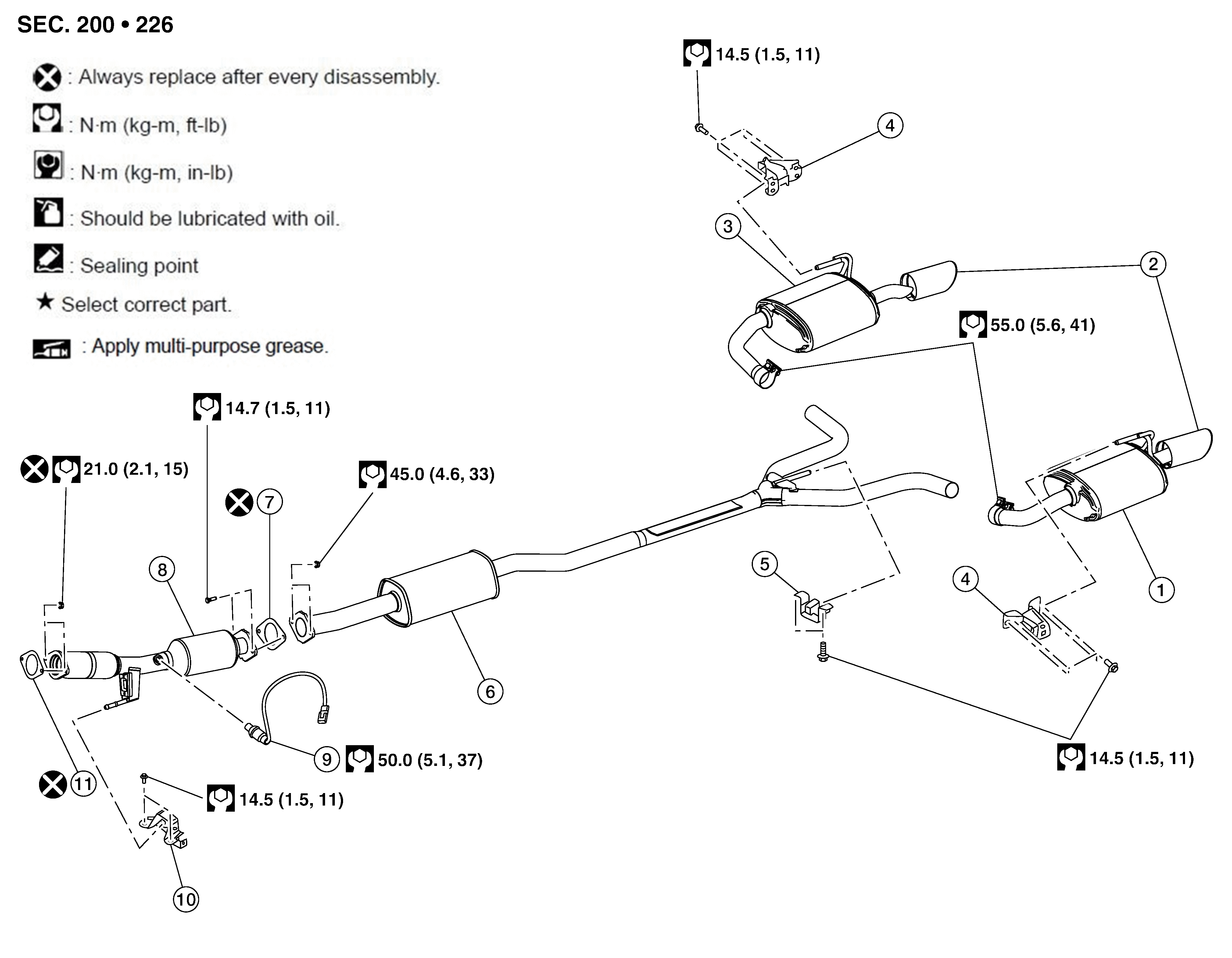

Fig 1: Exhaust System Components With Torque Specifications - FWD Models With PR25DD Engine

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear muffler (LH)	2.	Exhaust finishers [except S grade (not serviceable)]	3.	Rear muffler (RH)
4.	Rear muffler bracket	5.	Center exhaust hanger	6.	Center exhaust tube
7.	Gasket	8.	Front exhaust tube	9.	Heated oxygen sensor 2
10.	Front exhaust hanger	11.	Gasket
