System Diagram
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.

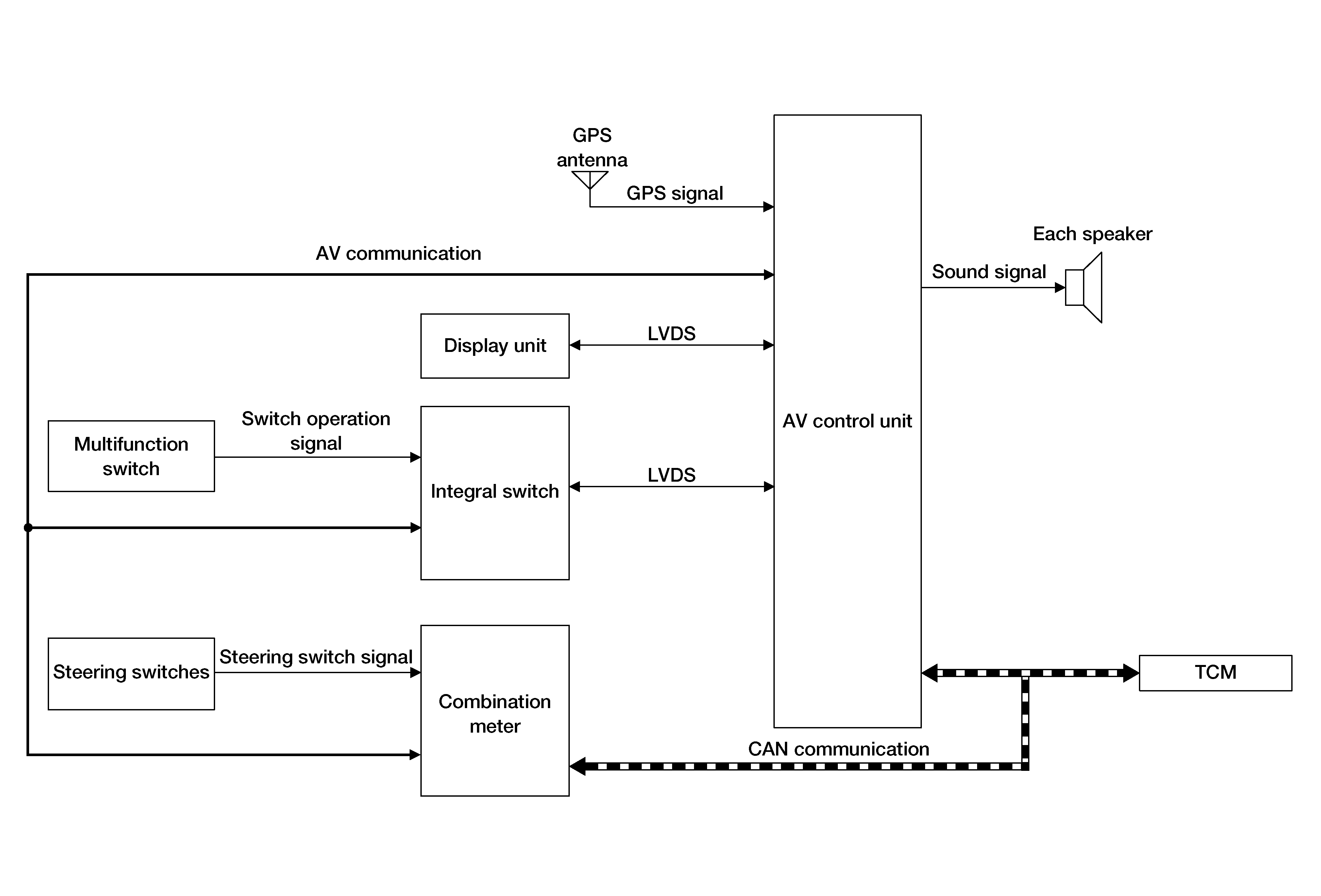

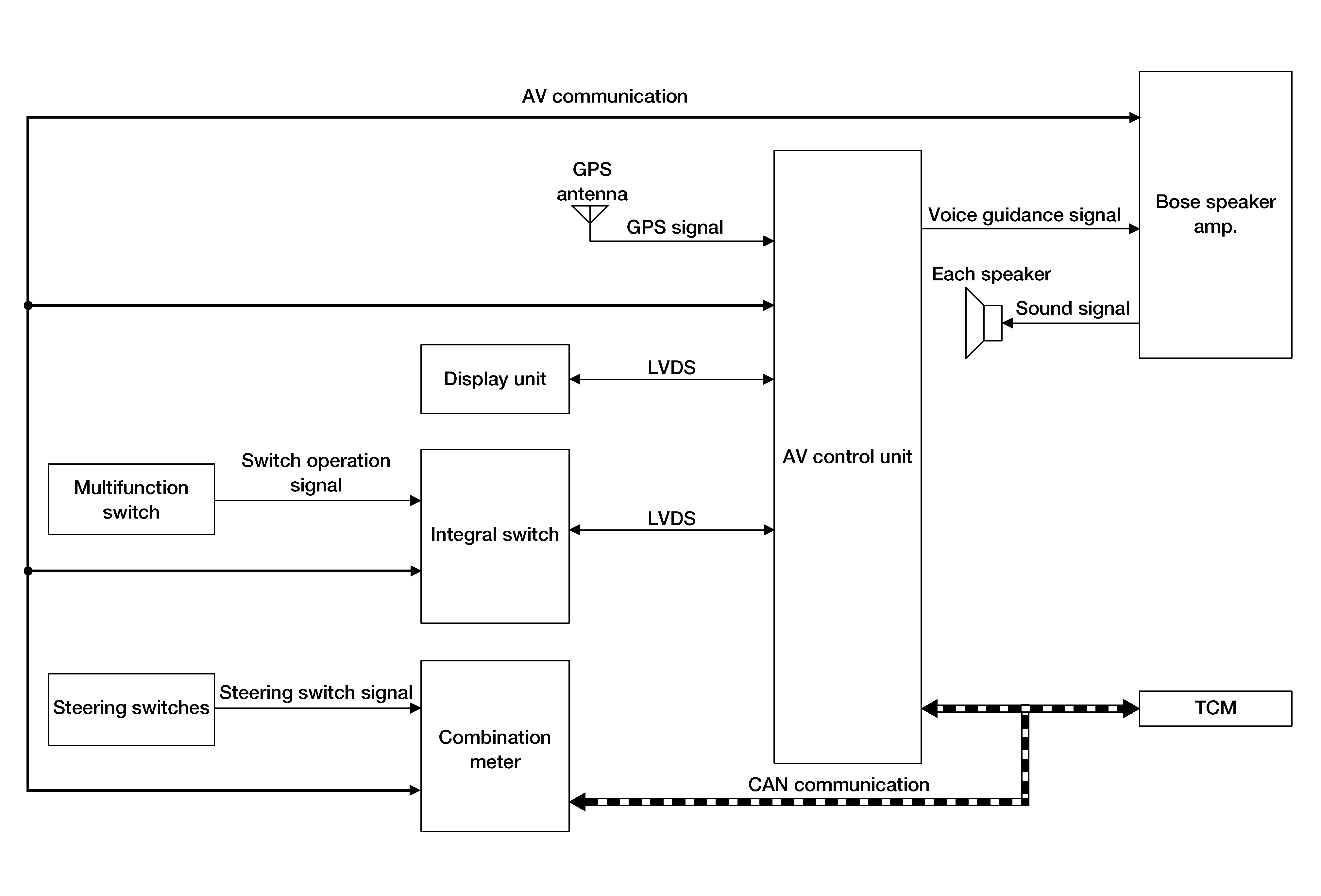

Courtesy of NISSAN NORTH AMERICA, INC.
AV Control Unit Input Signal (CAN Communication)
|
Transmit unit
|
Signal name
|
|
Combination meter
|
Parking brake switch signal
|
|
TCM
|
Shift position signal (Reverse signal)
|
