Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

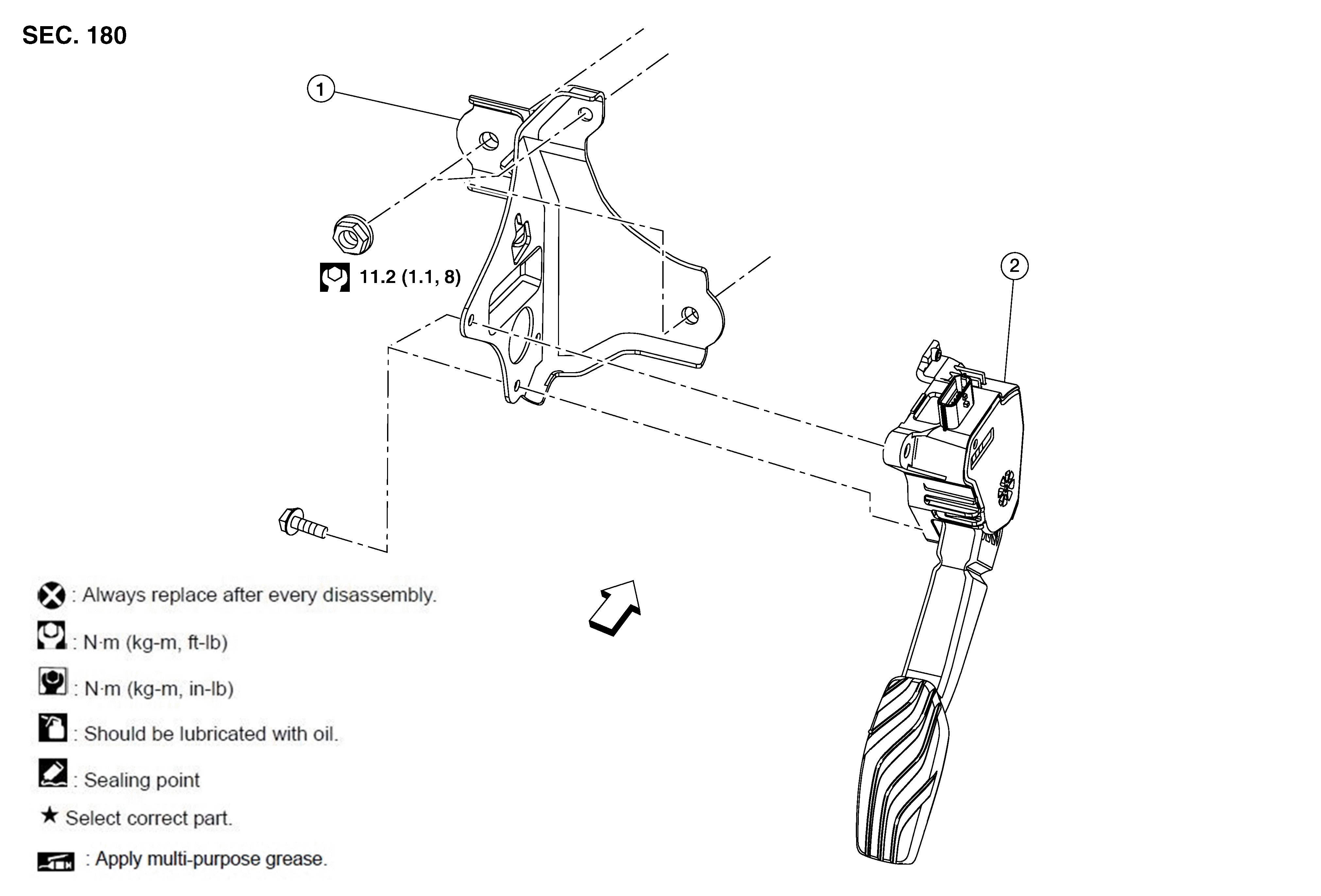

Fig 1: Accelerator Control System W/O Distance Control Assist System With Torque Specifications
GNSALBIA0166Z-166Courtesy of NISSAN NORTH AMERICA, INC.

1.

Accelerator pedal assembly bracket

2.

Accelerator pedal assembly

SYMBOL

Front
