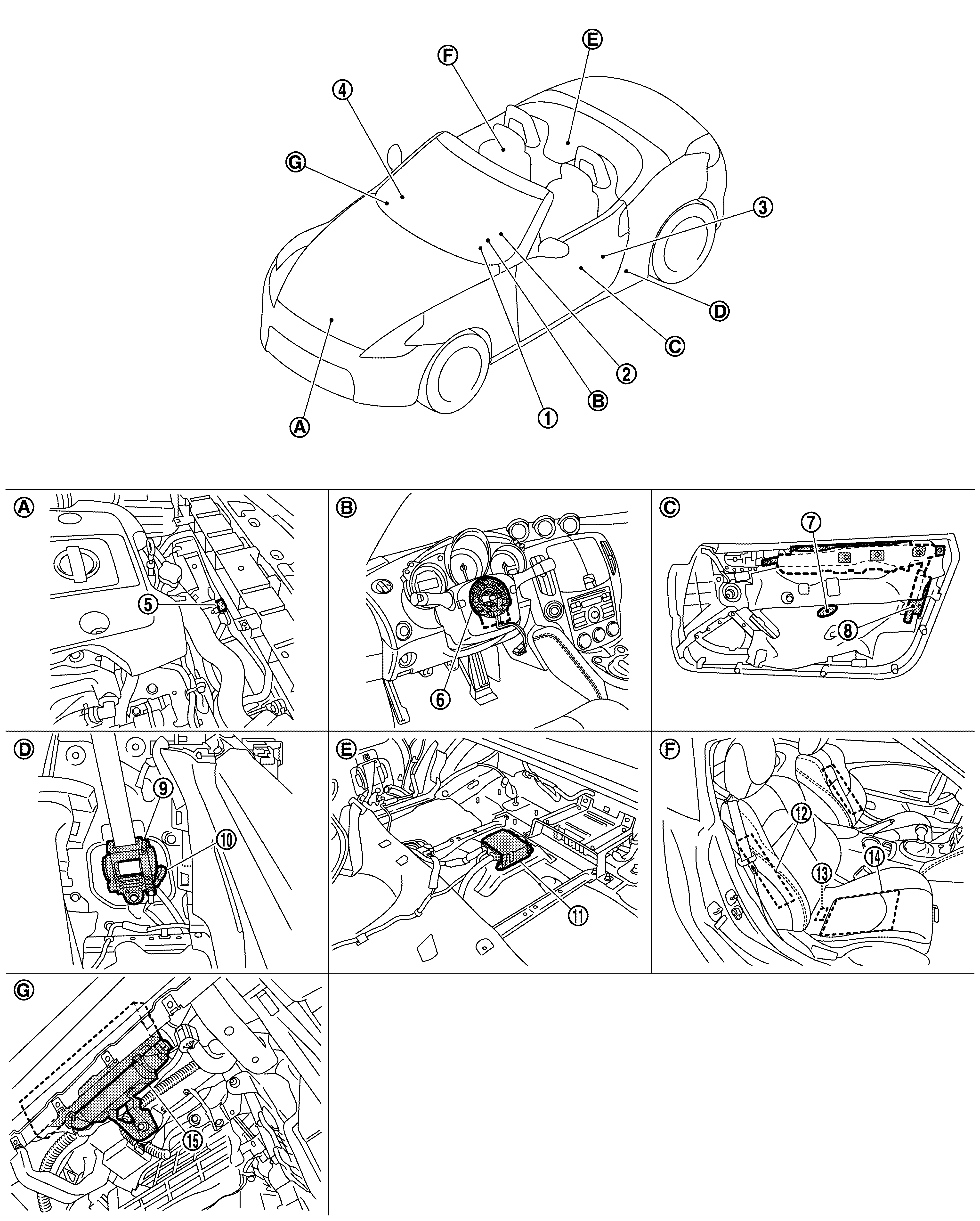

Roadster models
|
1. |
Combination meter |
2. |
Driver air bag module |
3. |
Seat belt buckle switch (Driver side) |
|
4. |
Passenger air bag OFF indicator |
5. |
Crash zone sensor |
6. |
Combination switch (spiral cable) |
|
7. |
Front door satellite sensor LH |
8. |
Door-mounted curtain air bag module LH |
9. |
Seat belt pre-tensioner LH |
|
10. |
Satellite sensor LH |
11. |
Air bag diagnosis sensor unit |
12. |
Side air bag module RH |
|
13. |
Occupant Classification System control unit |
14. |
Occupant Classification System seat sensor mat |
15. |
Passenger air bag module |
|
A. |
Radiator core support assembly |
B. |
View with steering wheel removed |
C. |
Behind door finisher assembly |
|
D. |
Behind rear side finisher |
E. |
Behind seatback center finisher |
F. |
Passenger seat |
|
G. |
Behind glove box assembly |
||||
|
Component |
Function |
|
Air bag diagnosis sensor unit |
Detects a collision and supplies power supply for deployment to air bag module and pre-tensioner seat belt. |
|
Air bag module
|
Receives signal from air bag diagnosis sensor unit and deploys air bag. |
|
Seat belt pre-tensioner |
Receives signal from air bag diagnosis sensor unit and deploys seat belt pre-tensioner. |
|
Seat belt buckle switch |
Controls deployment timing based on seat belt fastened or unfastened condition. |
|
Crash zone sensor |
Transmits signal to air bag diagnosis sensor unit when a frontal collision occurs. |
|
Satellite sensor (LH/RH) |
Transmits signal to air bag diagnosis sensor unit when a side collision occurs. |
|
Occupant Classification System control unit |
Detects passenger seat occupant and judges whether or not passenger seat air bag is deployed. |
|
Combination meter (air bag warning lamp) |
Indicates air bag malfunctioning and deployment by blinking and illuminating air bag warning lamp. |
|
Passenger air bag OFF indicator |
Indicates whether or not passenger air bag is in the activation mode based on the judgement of Occupant Classification System. |
|
Combination switch (spiral cable) |
Supplies power supply to driver air bag module on steering wheel. |
|
Front door satellite sensor (LH/RH) |
Transmits signal to air bag diagnosis sensor unit when a side collision occurs. |
