System Description

Courtesy of NISSAN NORTH AMERICA, INC.

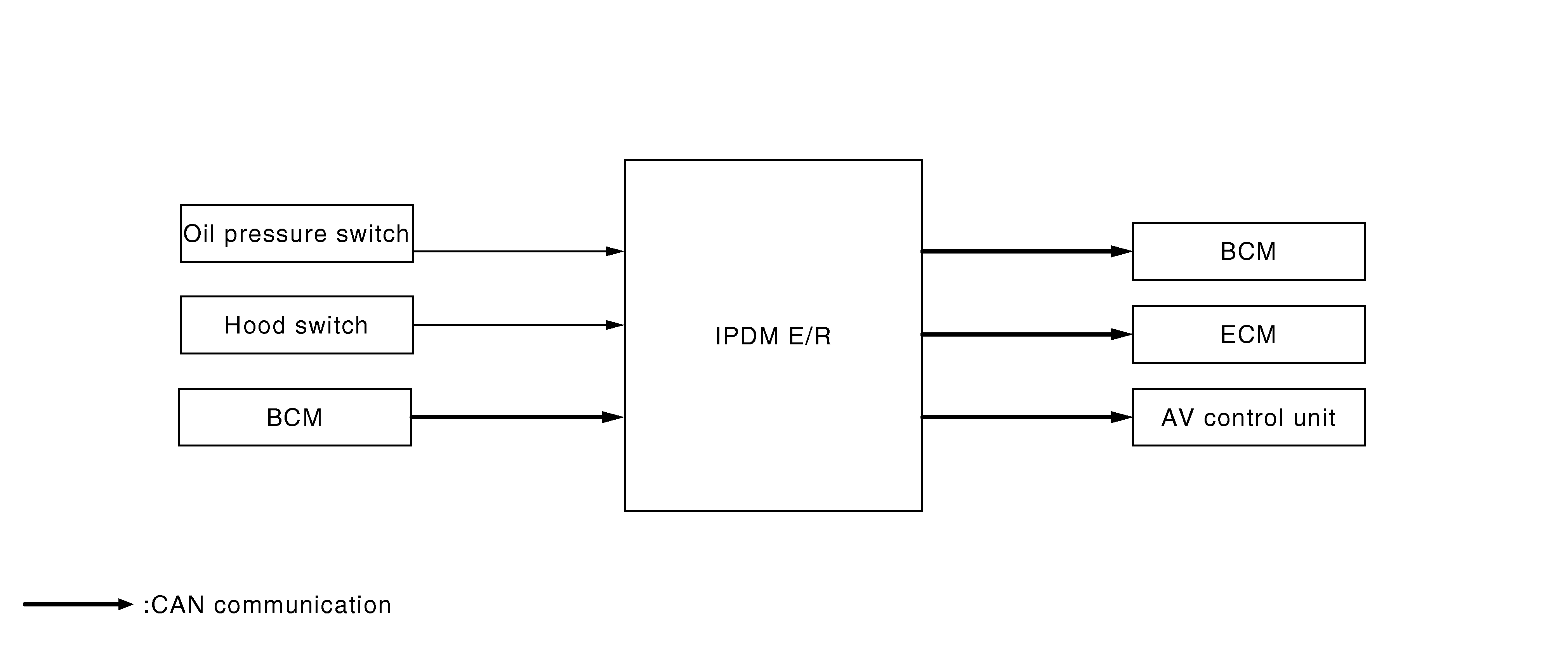

IPDM E/R reads the status of the oil pressure switch and transmits the oil pressure switch signal to BCM via CAN communication. Refer to System Description .
IPDM E/R reads the status of the hood switch and transmits the hood switch signal to BCM via CAN communication. Refer to System Description .
IPDM E/R receives the rear window defogger control signal from BCM via CAN communication and transmits it to ECM and AV control unit via CAN communication. Refer to System Description .
