System Description

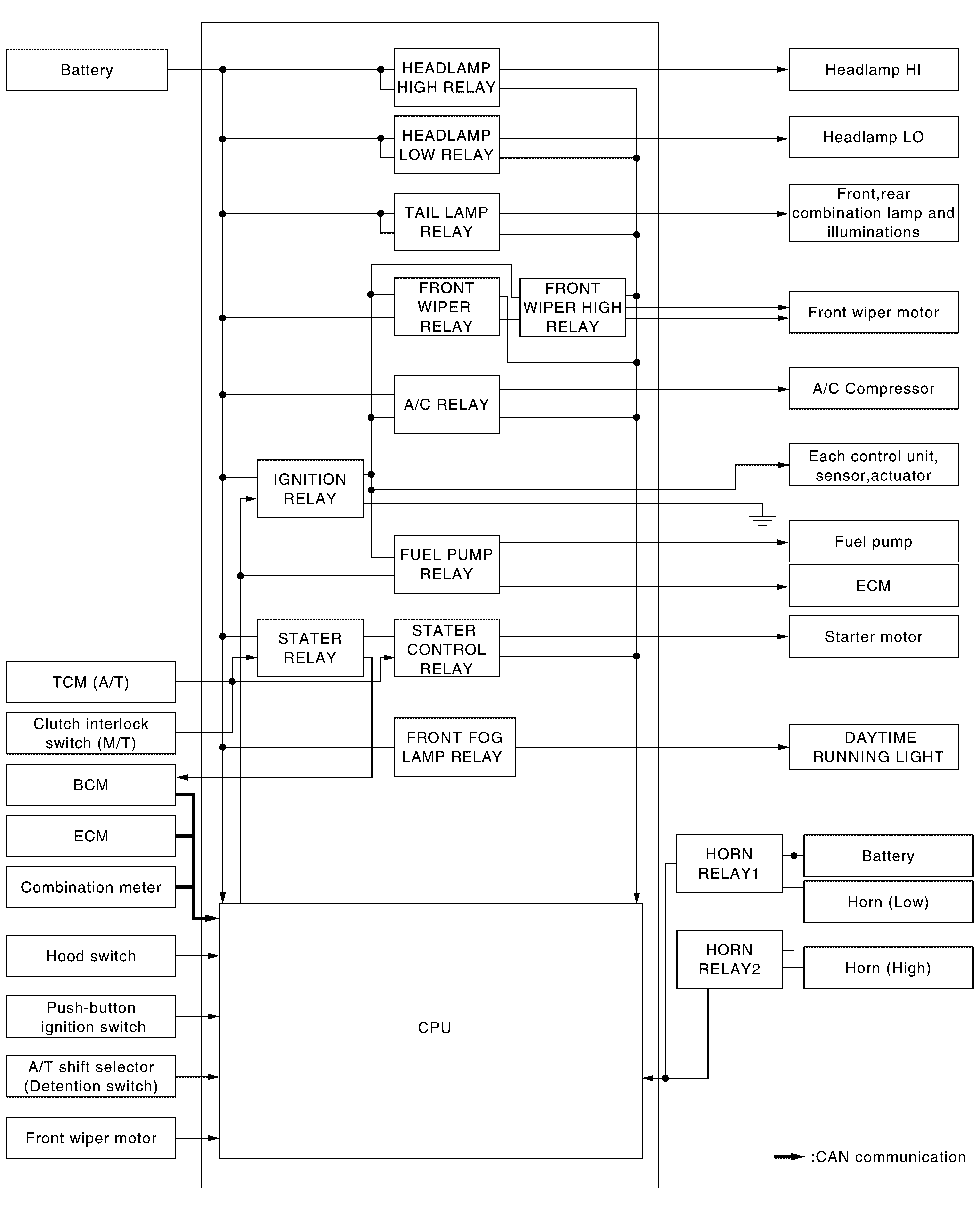

IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication.
|
Control relay |
Input/output |
Transmit unit |
Control part |
Reference |
|
|
BCM (CAN) |
|
Refer to System Description . |
|
Tail lamp relay |
Position light request signal |
BCM (CAN) |
|
Refer to System Description . |
|
Illuminations |
Refer to System Description . |
|||
|
Front wiper request signal |
BCM (CAN) |
Front wiper |
Refer to System Description . |
|
Front wiper stop position signal |
Front wiper motor |
|||
|
|
BCM (CAN) |
|
Refer to System Description . |
|
Starter control relay signal |
BCM (CAN) |
Starter motor |
Refer to Component Description . Refer to Component Description . |
|
Starter relay control signal |
TCM |
|||
|
Clutch interlock switch |
||||
|
A/C relay |
A/C compressor request signal |
ECM (CAN) |
A/C compressor (magnet clutch) |
Refer to System Description . |
|
Ignition relay |
Ignition switch ON signal |
BCM (CAN) |
Ignition relay |
Refer to Component Description . |
|
Vehicle speed signal |
Combination meter (CAN) |
|||
|
Push-button ignition switch signal |
Push-button ignition switch |
|||
|
Front fog lamp relay |
Daytime running light request signal |
BCM (CAN) |
Daytime running light |
Refer to System Description . |
