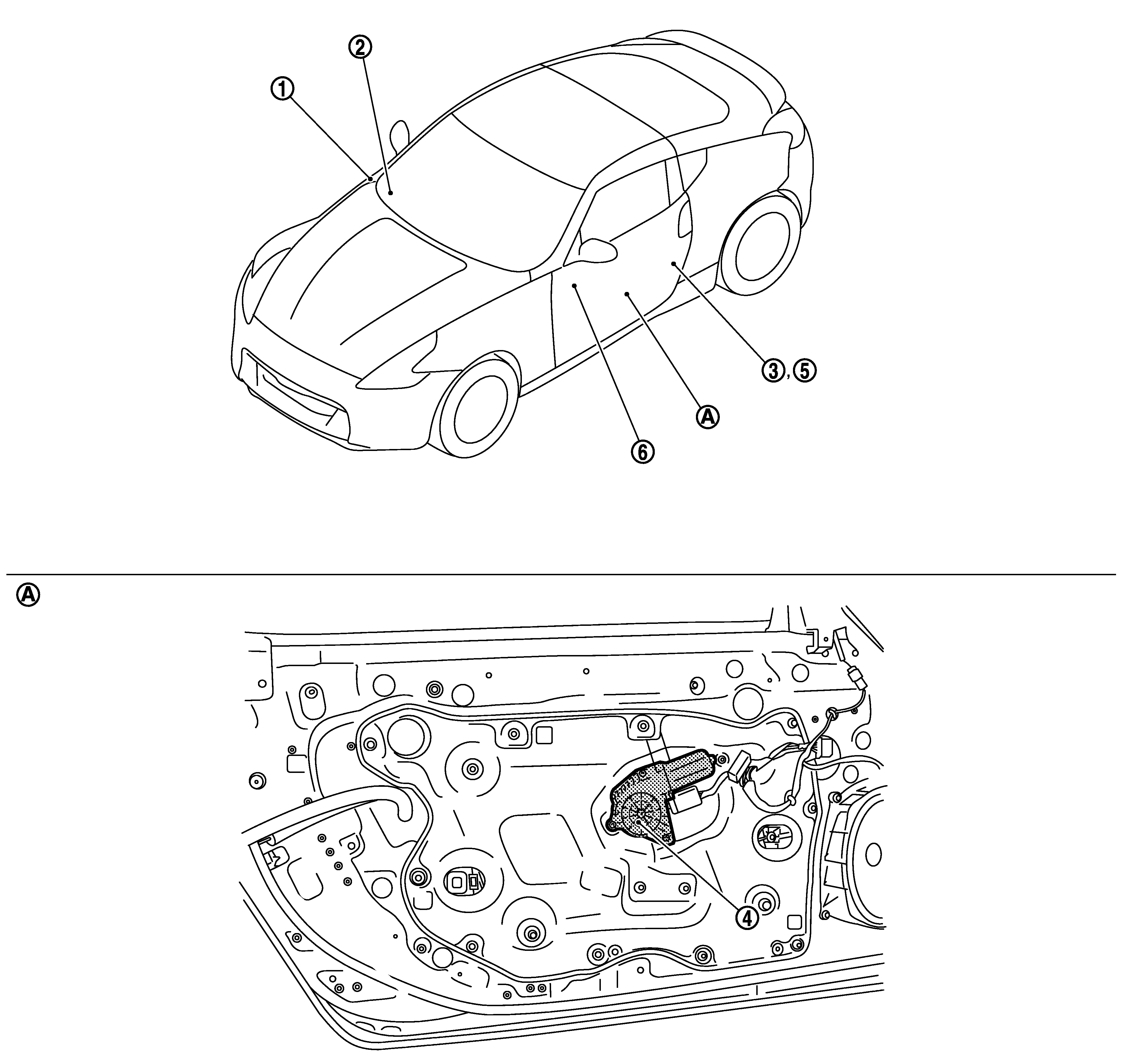

Component Location

1.

BCM M118, M119, M122, M123

Refer to Component Location .

2.

Remote keyless entry receiver M104

Refer to Component Location .

3.

Driver side door lock assembly

(door key cylinder switch) D15

4.

Driver side power window motor D10

5.

Driver side door switch B16

6.

Power window main switch D8

A.

View with door finisher removed

Component

Function

BCM

• Supplies power to power window switches.
• Controls retained power function

Power window main switch

• Directly controls all power window motors in all doors.
• Controls anti-pinch operation of power window.

Power window sub-switch

• Controls anti-pinch operation of power window.
• Controls power window motor of passenger door.

Power window motor

• Integrates the encoder and window motor.
• Starts operating with signals from each power window switch.
• Transmits power window motor rotation as a pulse signal to power window switch.

Driver side door lock assembly (door key cylinder switch)

Transmits operation condition of key cylinder switch to power window main switch.

Remote keyless entry receiver

Receives lock/unlock signal from intelligent key, and then transmits to BCM.

Door switch

Detects door open/close condition and transmits to BCM.
