Switches And Their Control Functions
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

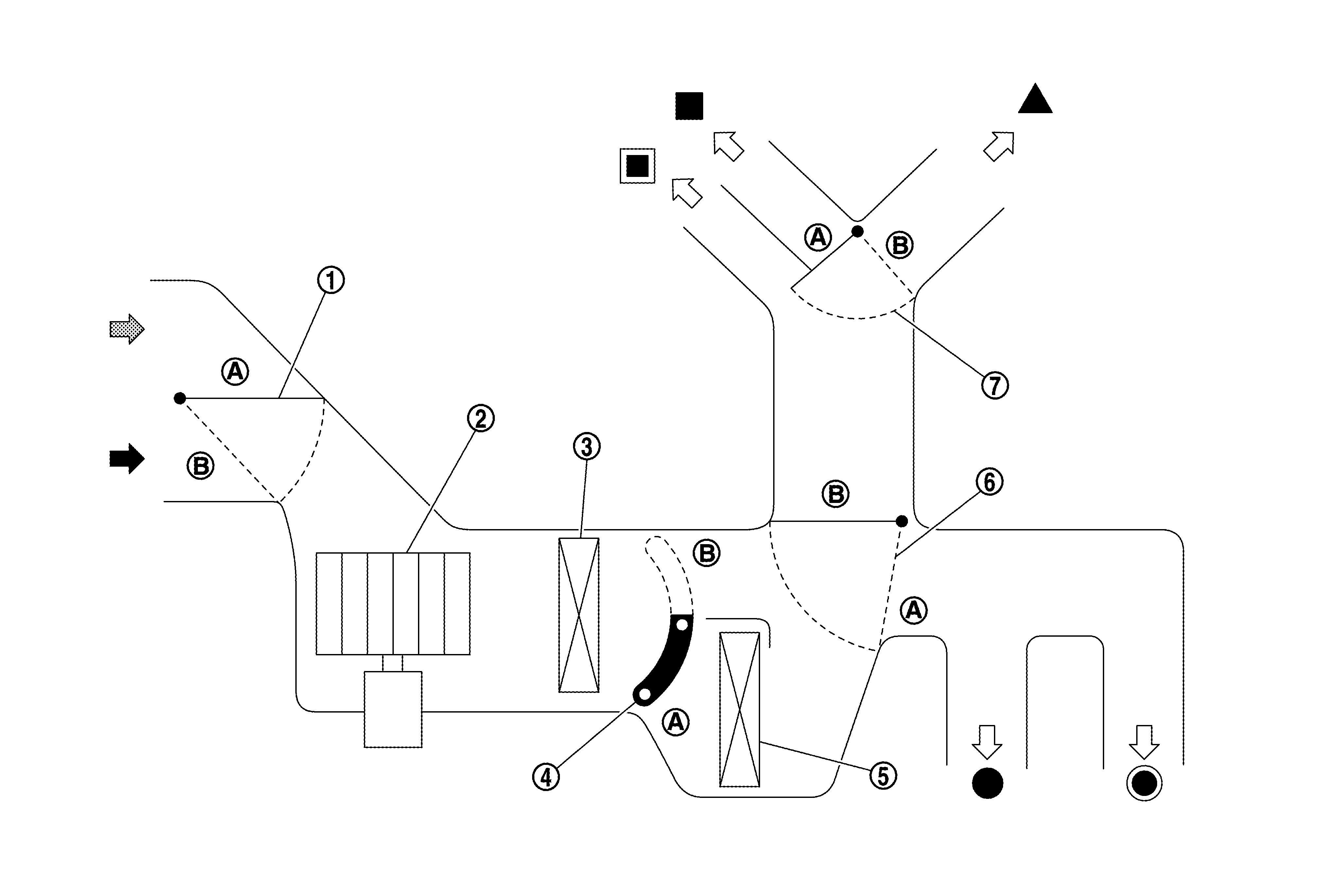

| 1. | Intake door | 2. | Blower motor | 3. | Evaporator |
| 4. | Air mix door | 5. | Heater core | 6. | Foot door |
| 7. | Ventilator and defroster door | ||||
| Fresh air intake | Recirculation air | Defroster | |||
| Center ventilator | Side ventilator | ||||
| Foot | Rear foot* |
* : With rear foot duct
| Switch/Dial position |
Door position | ||||
|---|---|---|---|---|---|
| Ventilator and defroster door |
Foot door | Intake door | Air mix door | ||
| MODE dial | B | A | - | - | |
| A - B | |||||
| A | A - B | ||||
| A - B | |||||
| A | |||||
| Air intake lever | - | - | A | ||
| B | |||||
| Temperature control dial | Full cold | - | A | ||
| Full hot | B | ||||
