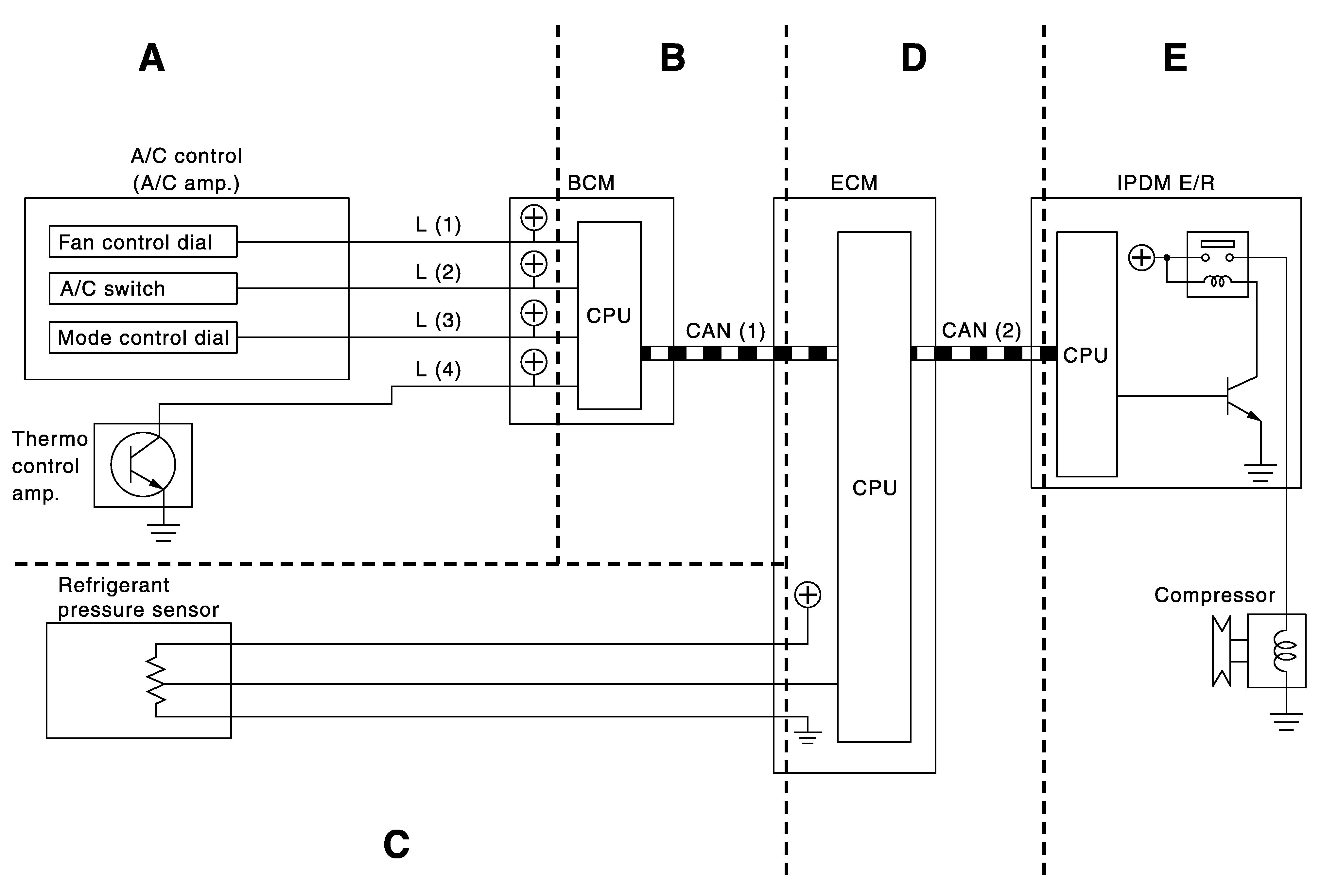

Functional Circuit Diagram
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| L (1) |
: Fan ON signal |
CAN (1) |
: A/C ON signal |
| L (2) |
: A/C switch signal |
|
: Blower fan ON signal |
| L (3) |
: Defroster position switch 2 |
CAN (2) |
: A/C compressor request signal |
| L (4) |
: Thermo control amp. ON signal |
|
: A/C compressor feedback signal |
