Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

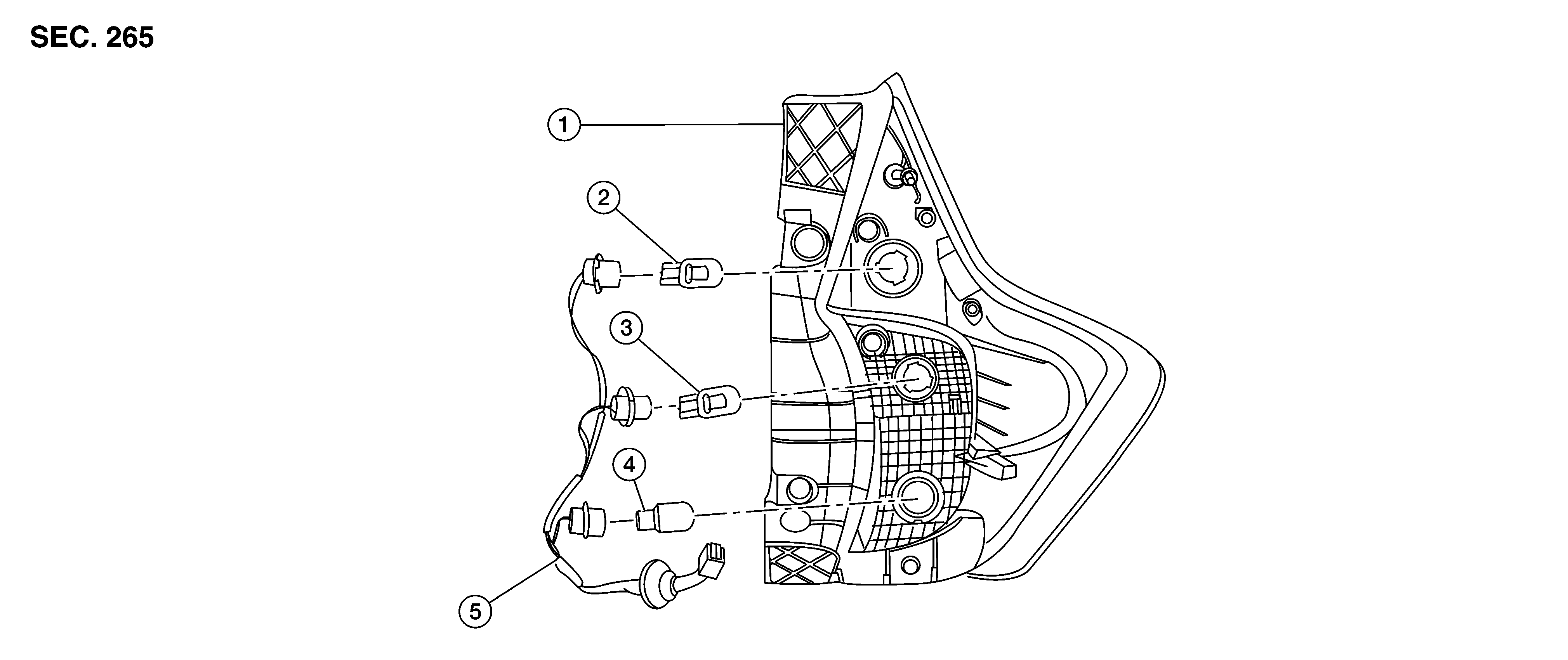

GNSAWLIA2166ZZ-166Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear combination lamp 2. Stop/tail lamp bulb 3. Back-up lamp bulb
4. Rear turn signal lamp bulb 5. Harness connector
