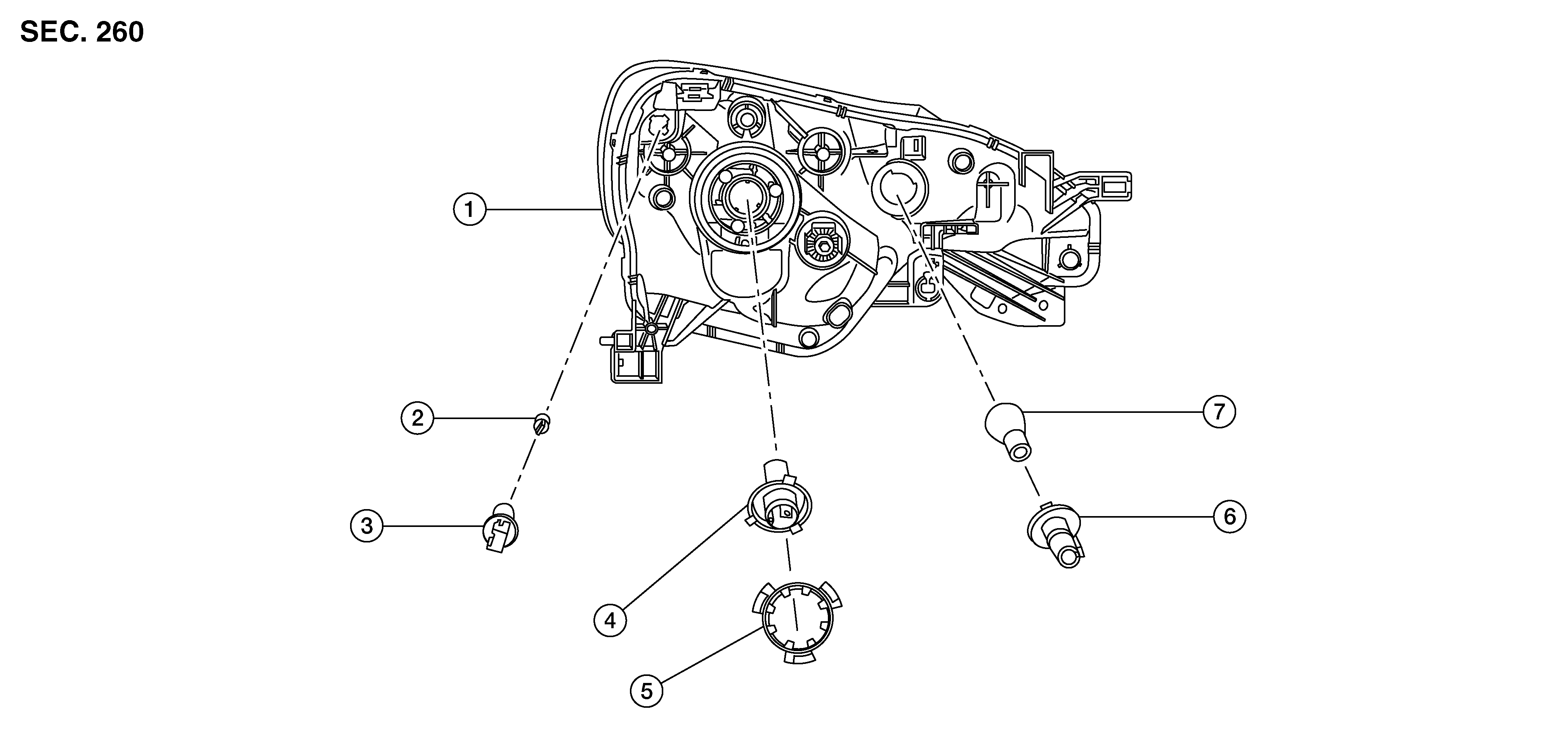

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Front combination lamp |
2. |
Side marker lamp bulb |
3. |
Side marker lamp socket |
| 4. |
Headlamp bulb |
5. |
Lock ring |
6. |
Front turn signal/Parking lamp bulb socket |
| 7. |
Front turn signal/Parking lamp bulb |
|
|
|
|
