Exploded View
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
CVT Models
| 1. | Engine mounting (RH) stay | 2. | Engine mount (RH) stay | 3. | Engine mounting insulator (RH) |
| 4. | Rear engine mounting bracket | 5. | Rear torque rod | 6. | Engine mounting bracket (LH) |
| 7. | Engine mounting bracket (LH) | 8. | Engine mounting insulator (LH) | 9. | Mass damper |
| A. | Front mark | B. | Transaxle (lower) | C. | CVT models |
CAUTION:
Check that the stud bolt (* 2) is tight at the specified torque before tightening the nut (* 1) shown. [Stud bolt (* 2) may be loosened after loosening the nut (* 1)]

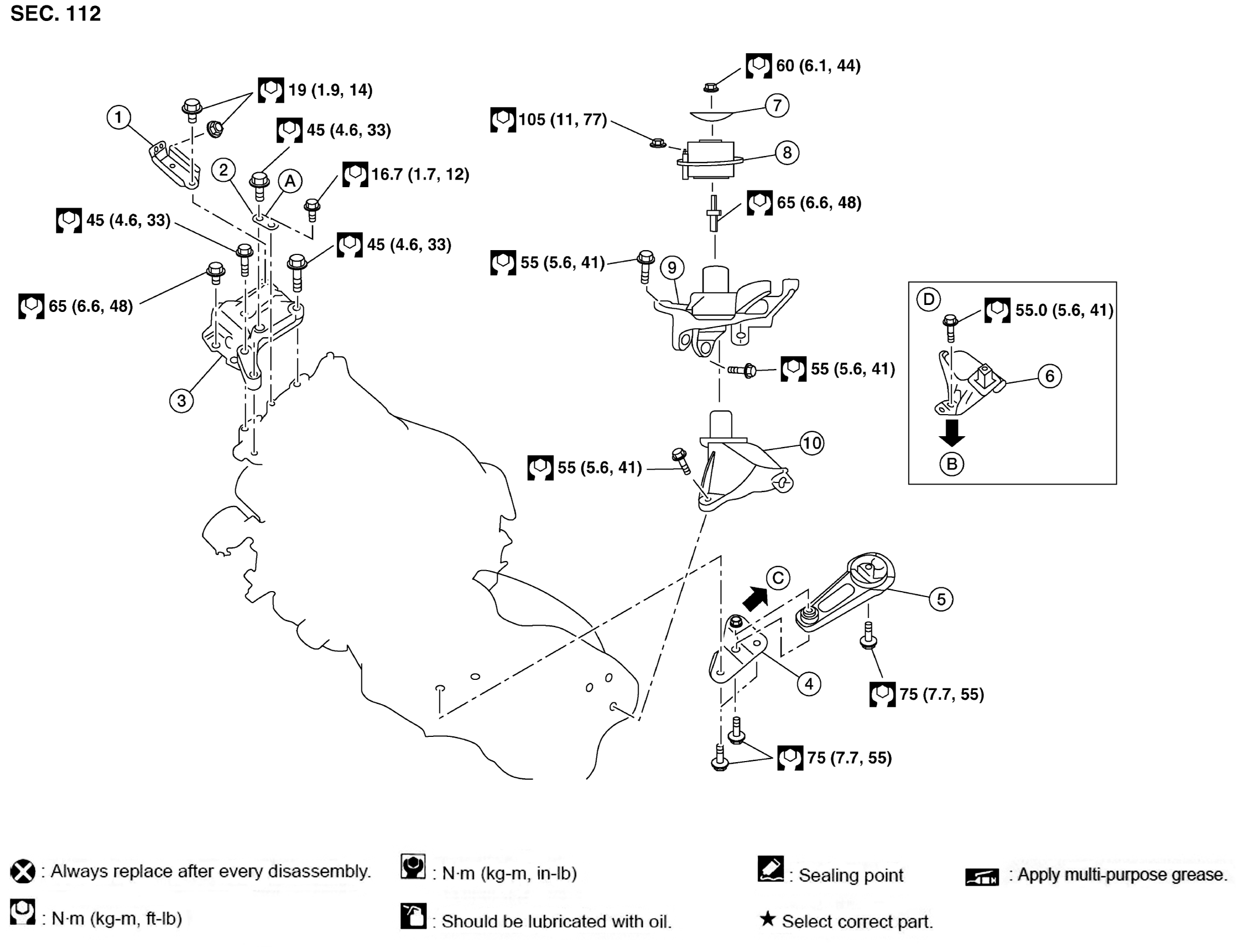

MT Models
| 1. | Engine mounting (RH) stay | 2. | Engine mount (RH) stay | 3. | Engine mounting insulator (RH) |
| 4. | Rear engine mounting bracket | 5. | Rear torque rod | 6. | Engine mounting bracket (LH) |
| 7. | Mass damper | 8. | Engine mounting insulator (LH) | 9. | Engine mounting bracket (LH) |
| 10. | Engine mount bracket (LH) | A. | Front mark | B. | Transaxle (upper) |
| C. | Transaxle (lower) | D. | M/T models |
CAUTION:
Check that the stud bolt (* 2) is tight at the specified torque before tightening the nut (* 1) shown. [Stud bolt (* 2) may be loosened after loosening the nut (* 1)]
