Flywheel Deflection (M/T Models)

WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

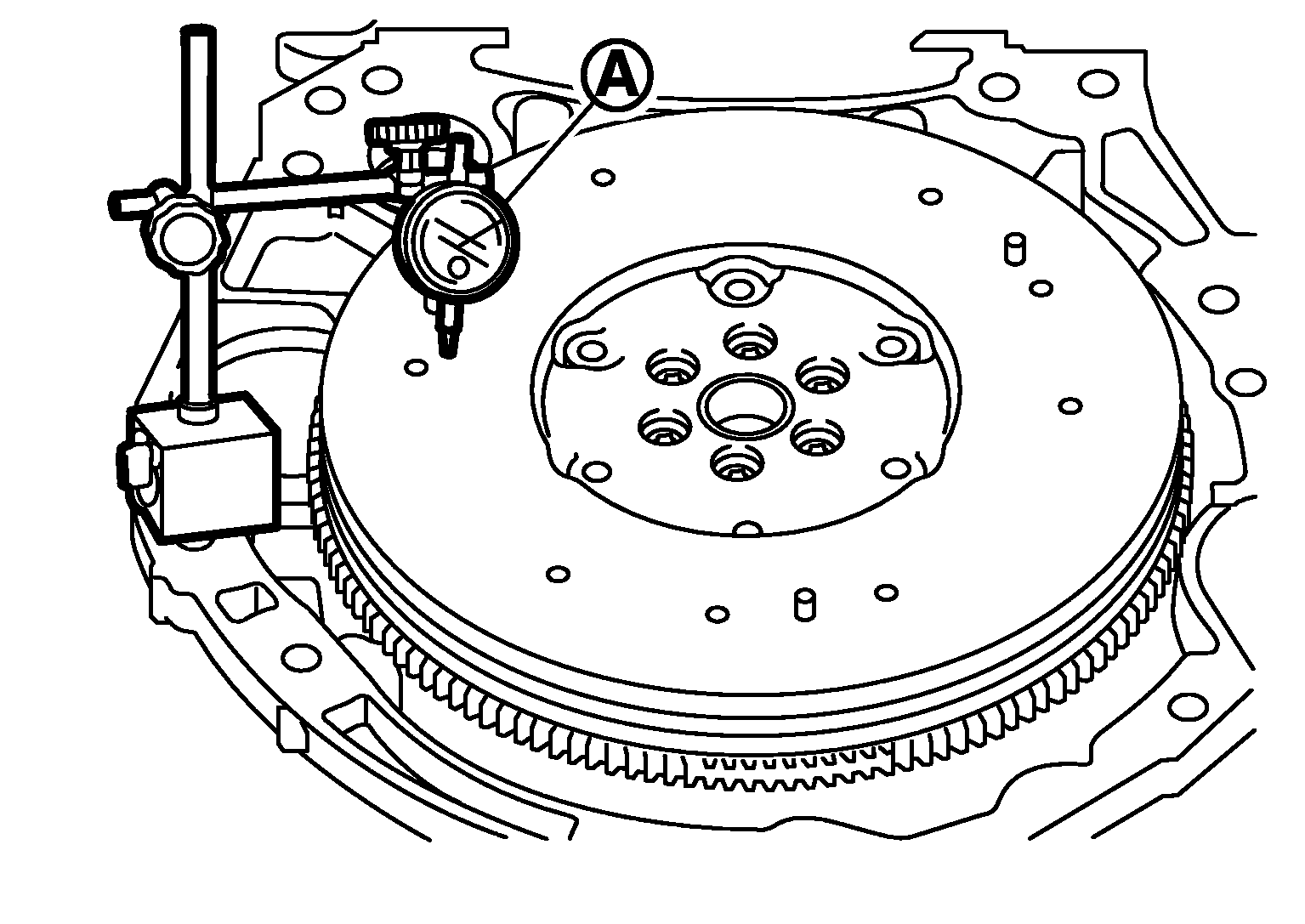

Measure the deflection of flywheel contact surface to torque with a suitable tool (A).

Courtesy of NISSAN NORTH AMERICA, INC.
Measure the deflection at 210 mm (8.27 in) diameter.

Limit : 0.45 mm (0.0177 in) or less.
If measured value is out of the standard, replace flywheel.
If a trace of burn or discoloration is found on the surface, clean it with sandpaper.

CAUTION:

When measuring, keep magnetic fields (such as dial indicator stand) away from signal plate of the rear end of crankshaft.
