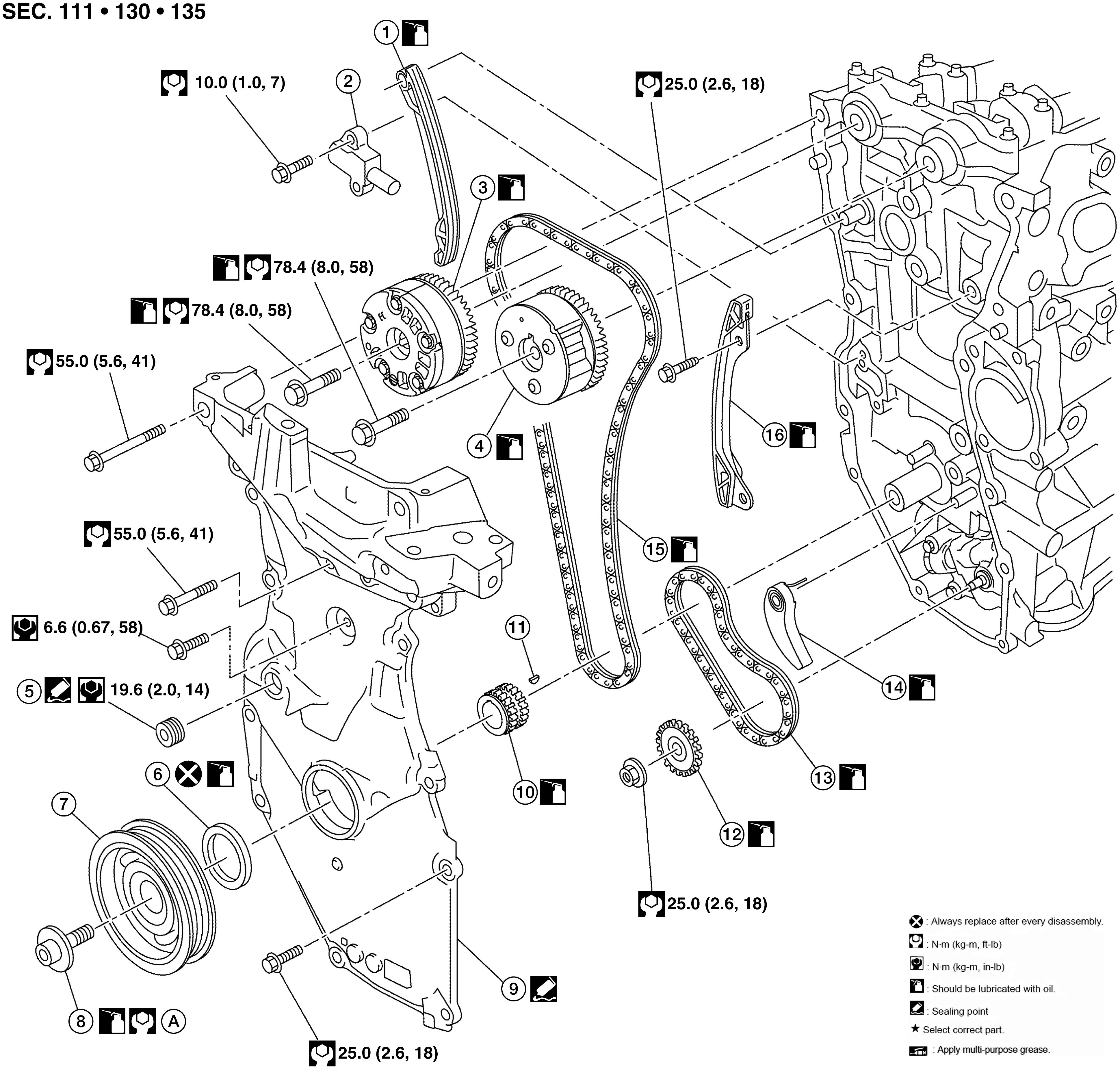

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Timing chain slack guide | 2. | Timing chain tensioner | 3. | Camshaft sprocket (EXH) |
| 4. | Camshaft sprocket (INT) | 5. | Plug | 6. | Front oil seal |
| 7. | Crankshaft pulley | 8. | Crankshaft pulley bolt | 9. | Front cover |
| 10. | Crankshaft sprocket | 11. | Crankshaft sprocket key | 12. | Oil pump sprocket |
| 13. | Oil pump drive chain | 14. | Oil pump drive chain tensioner | 15. | Timing chain |
| 16. | Timing chain tension guide | A. | Refer to INSTALLATION below |
