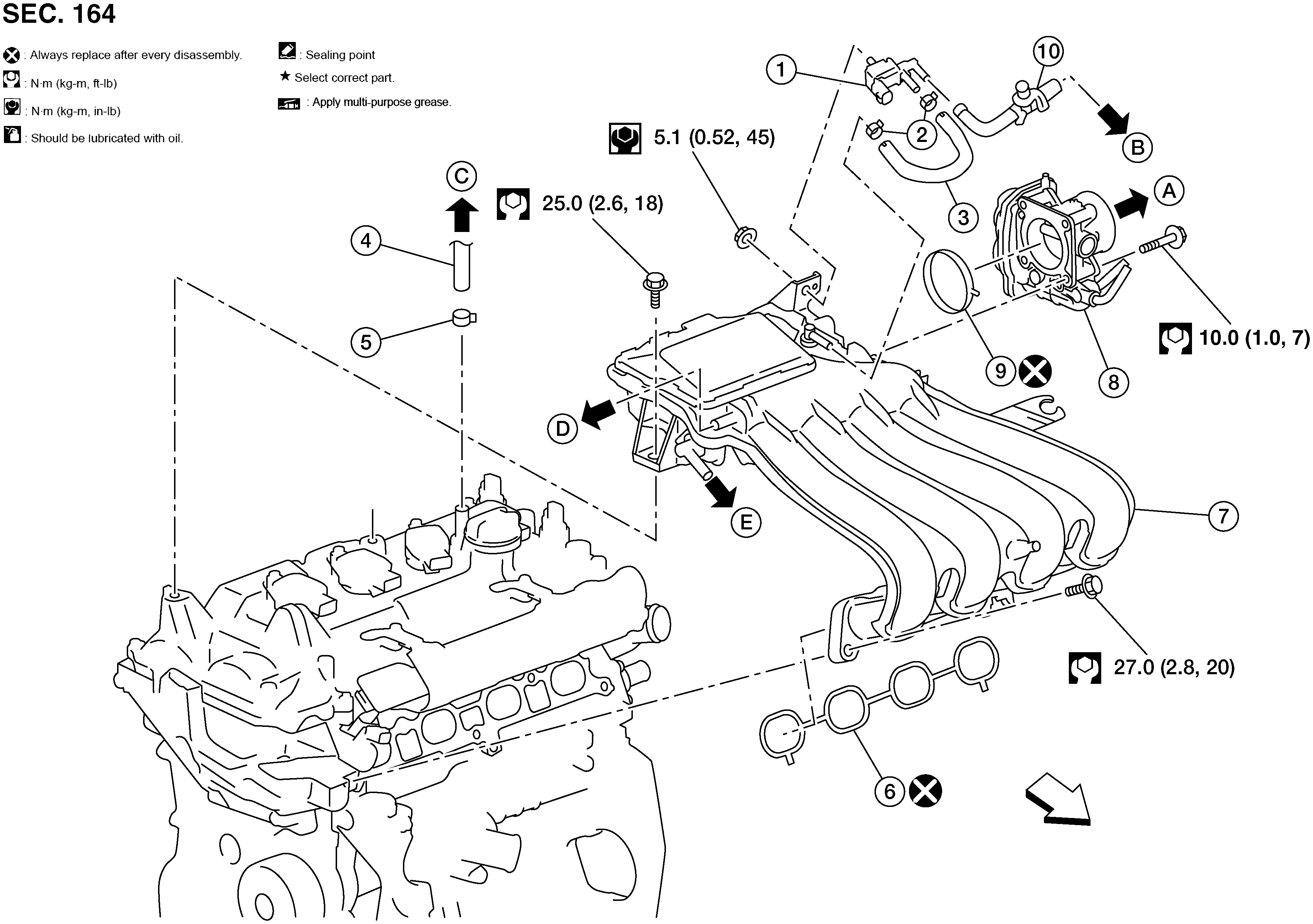

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | EVAP canister purge volume control solenoid valve | 2. | Hose clamp | 3. | Vacuum hose |
| 4. | PCV hose | 5. | Hose clamp | 6. | Intake manifold gasket |
| 7. | Intake manifold | 8. | Electric throttle control actuator | 9. | Electric throttle control actuator gasket |
| 10. | EVAP service port | A. | To air duct | B. | To centralized under-floor piping |
| C. | To air duct | D. | To brake booster | E. | To PCV valve in rocker cover |
| Front |
