2-Pole Lift
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, fuel lines and sill spoiler.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 |

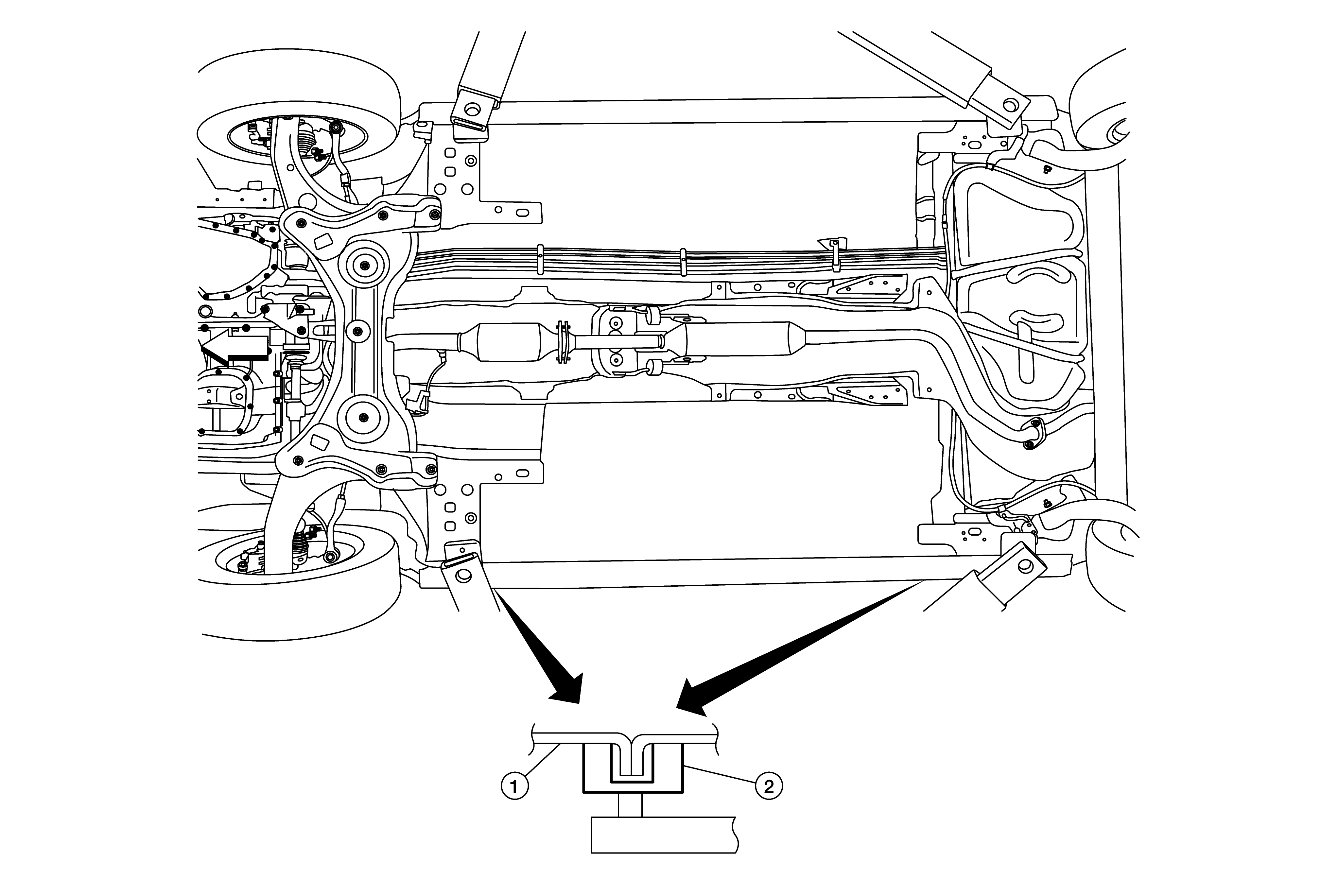

Vehicle front |
|
|
|
|
| 1. |
Sill |
2. |
Lift pad |
|
|
