Combination Meter

WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

The combination meter has a built-in buzzer (1) and sounds the following warnings, according to signals from each switch and unit:

Light reminder warning
Parking brake release warning chime
Seat belt warning
Key warning chime (without Intelligent Key system)

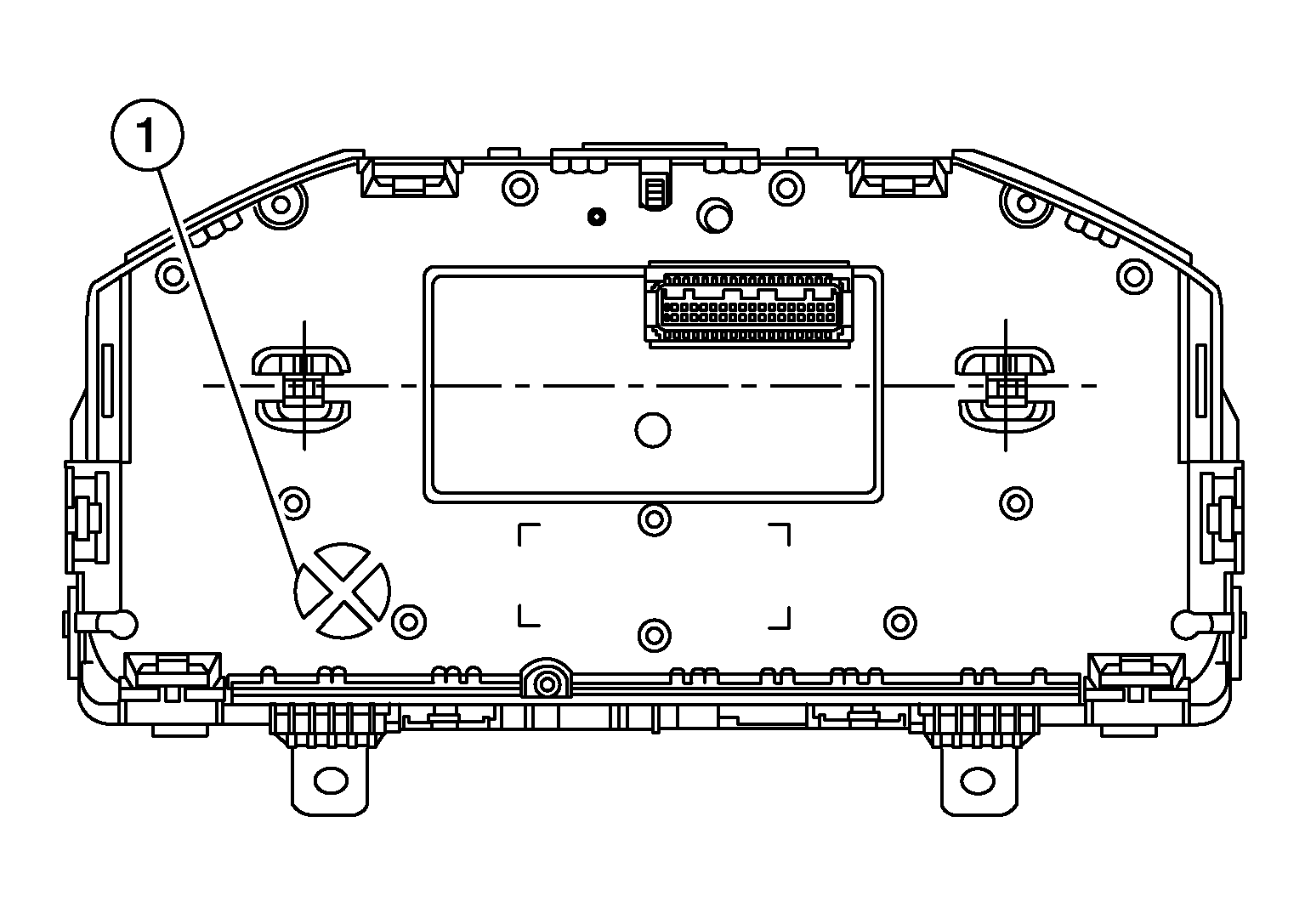

TYPE A

Courtesy of NISSAN NORTH AMERICA, INC.

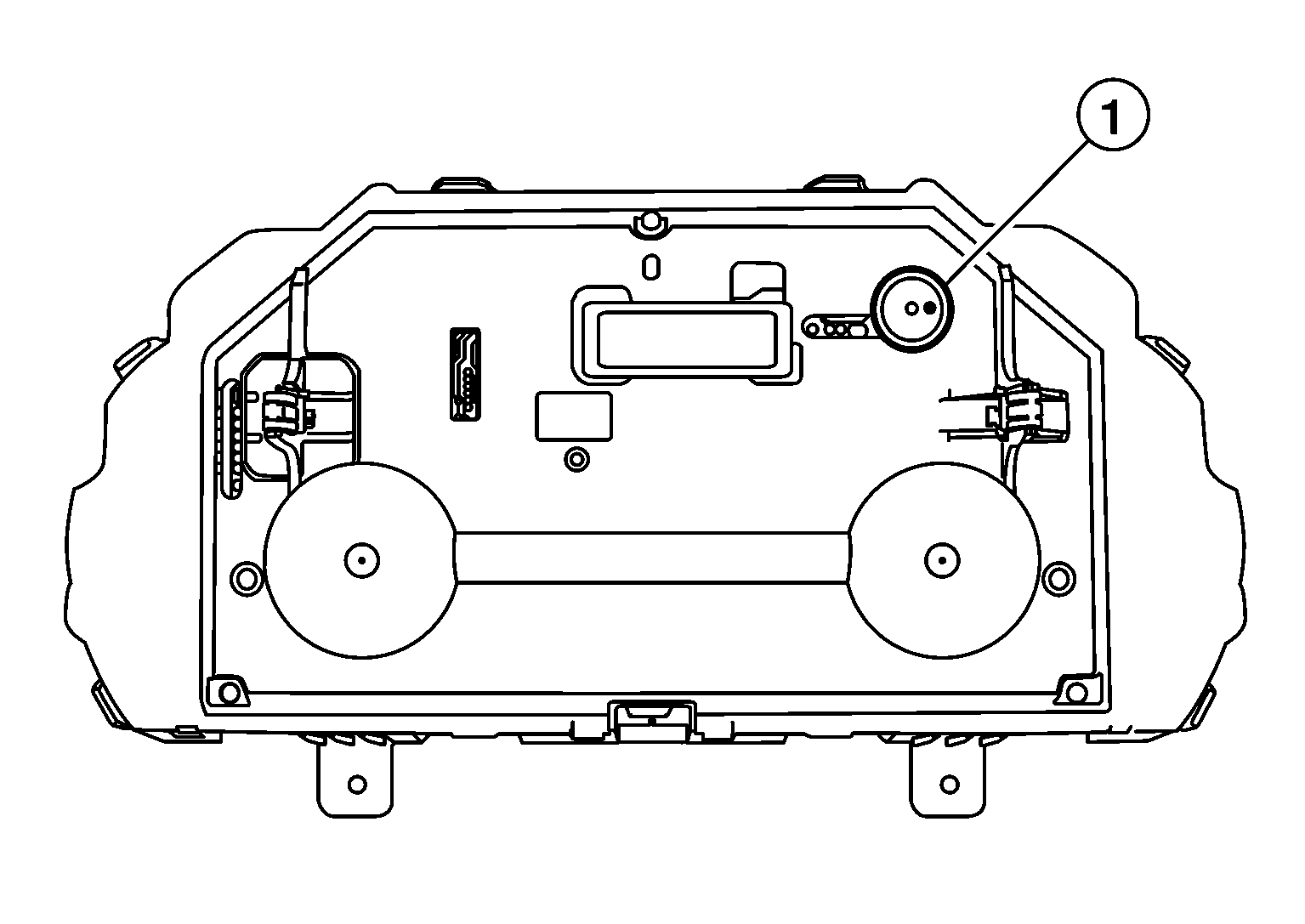

TYPE B

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

To identify combination meter type, refer to INFORMATION .
