Component Location
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

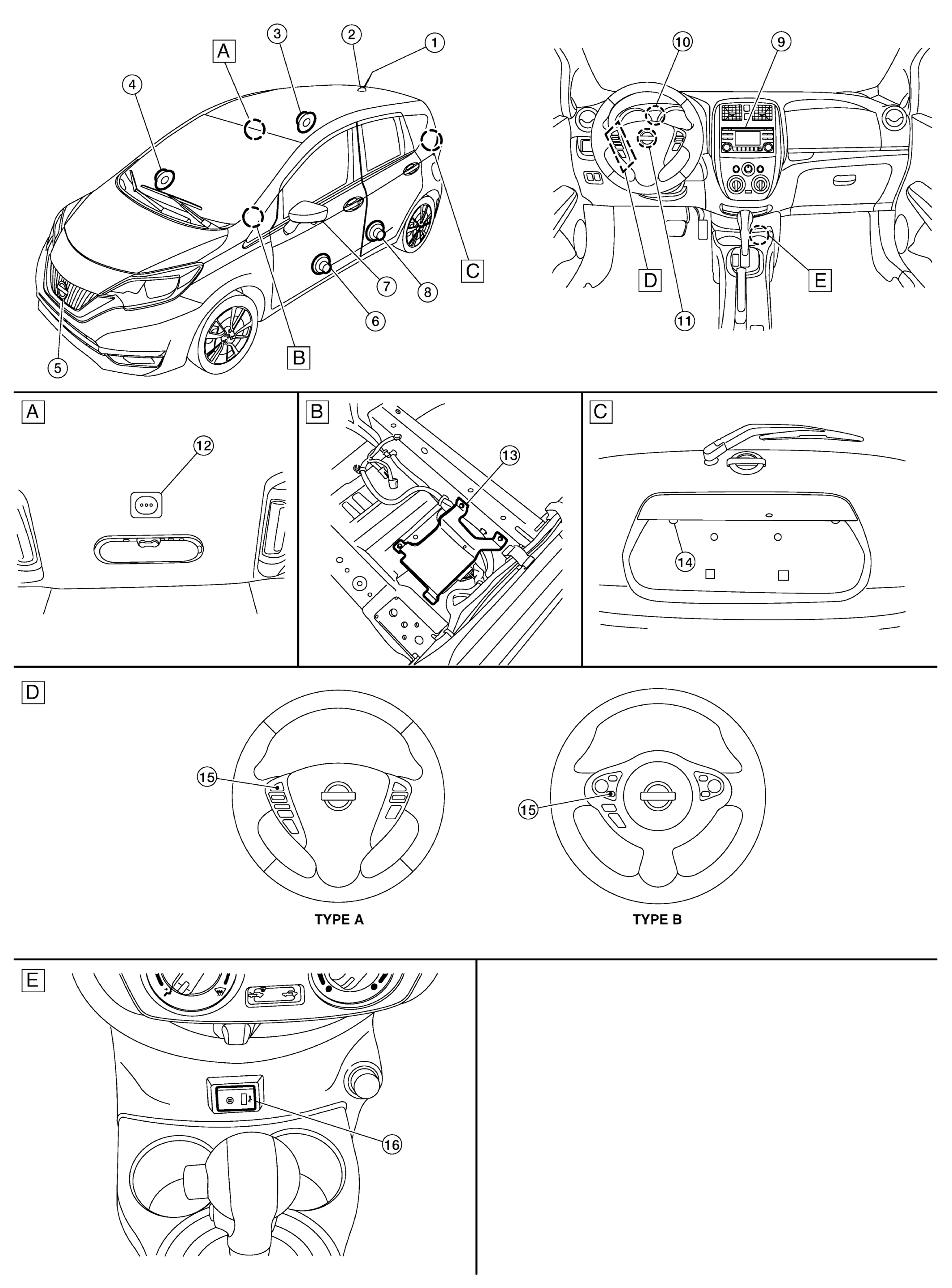

| A. | Front of headliner | B. | View with passenger seat removed | C. | Center of back door |
| D. | Steering wheel audio control switches | E. | Center console lower |
| No. | Component | Function |
|---|---|---|
| 1. | Rod antenna | Refer to ROD ANTENNA, ANTENNA AMP., SATELLITE ANTENNA AND ANTENNA FEEDER . |
| 2. | Antenna base (antenna amp. and satellite antenna) | |
| 3. | Rear door speaker RH | Refer to SPEAKERS . |
| 4. | Front door speaker RH | |
| 5. | Front camera | Refer to FRONT CAMERA . |
| 6. | Front door speaker LH | Refer to SPEAKERS . |
| 7. | Side camera | Refer to SIDE CAMERAS . |
| 8. | Rear door speaker LH | Refer to SPEAKERS . |
| 9. | AV control unit | Refer to AV CONTROL UNIT . |
| 10. | GPS antenna | Refer to GPS ANTENNA . |
| 11. | Steering angle sensor | Refer to STEERING ANGLE SENSOR . |
| 12. | Microphone | Refer to MICROPHONE . |
| 13. | Around View® * Monitor control unit (if equipped) | Refer to AROUND VIEW MONITOR CONTROL UNIT . |
| 14. | Rear view camera | Refer to REAR VIEW CAMERA . |
| 15. | Steering wheel audio control switches | Refer to STEERING WHEEL AUDIO CONTROL SWITCHES . |
| 16. | USB interface and AUX in jack | Refer to USB INTERFACE AND AUX IN JACK . |
* : Around View Monitor is a parking aid/convenience feature. Around View Monitor cannot completely eliminate blind spots. Around View Monitor may not detect every object and does not warn of moving objects. Always check surroundings before moving vehicle. Around View Monitor is not a substitute for proper backing procedures. Always turn to check what is behind you before backing up.
