Component Location

WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

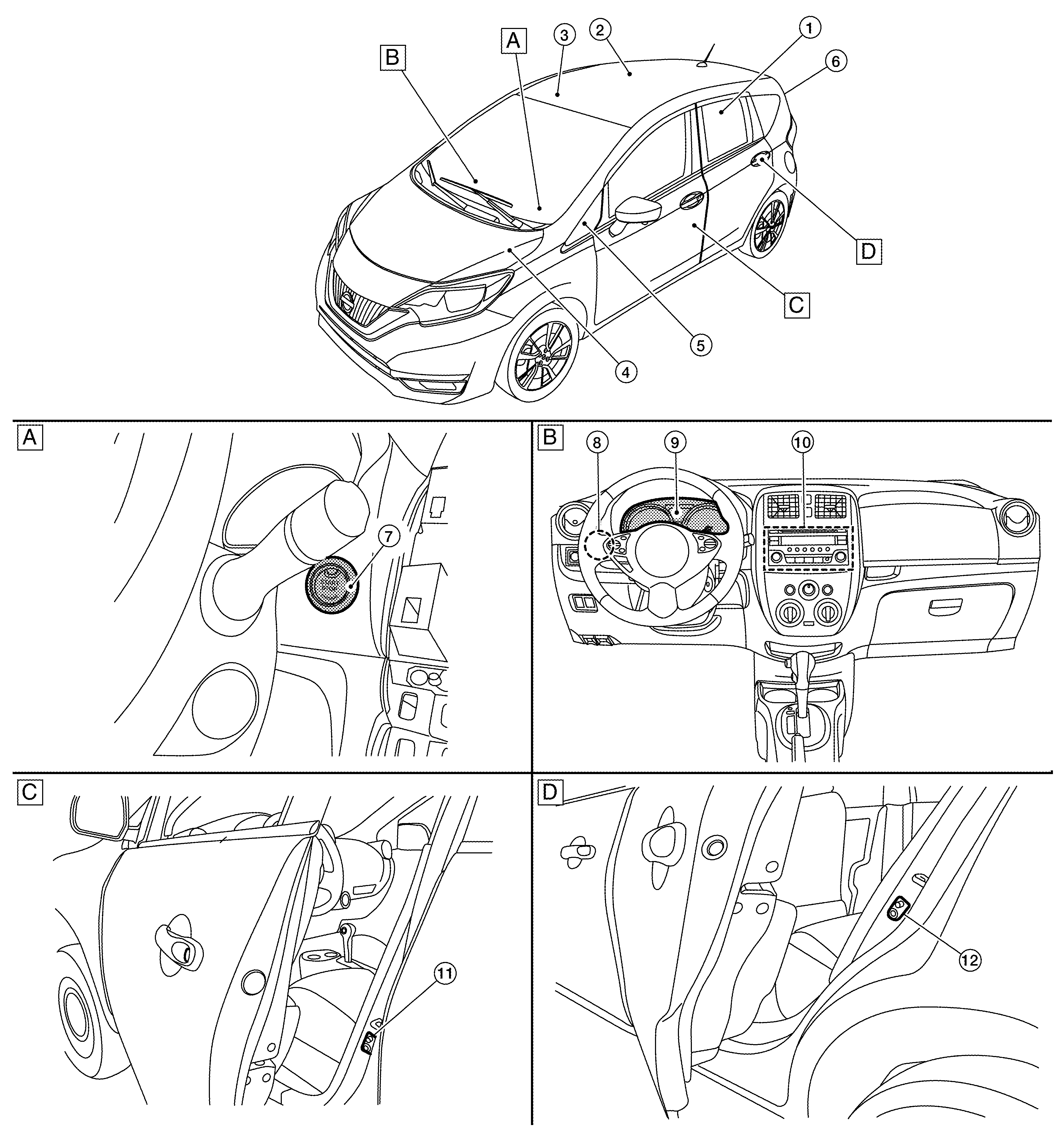

GNSAWLIA3054ZZ-054Courtesy of NISSAN NORTH AMERICA, INC.
A. View right of steering column B. Instrument panel view
C. B-pillar LH side (view with door open) D. C-pillar LH side (view with door open)
No. Part Description
1. Cargo lamp Refer to BULB SPECIFICATIONS .
2. Interior room lamp Refer to BULB SPECIFICATIONS .
3. Map lamp Refer to BULB SPECIFICATIONS .
4. IPDM E/R Controls the integrated relay according to the request signal from BCM. Refer to COMPONENT LOCATION for detailed installation location.
5. BCM
  • Activates the interior room lamp timer depending on the vehicle condition to turn the interior room lamps ON/OFF.
  • Operates the interior room lamp battery saver depending on the vehicle condition to cut the interior room lamp power supply.
  • Detects each switch condition by the combination switch reading function.
  • Judges the illumination lamp ON/OFF status depending on the vehicle condition. And then it transmits position light request signal to IPDM E/R and combination meter (with CAN communication).
Refer to COMPONENT LOCATION (with Intelligent Key system) or COMPONENT LOCATION (without Intelligent Key system) for detailed installation location.
6. Back door switch Refer to BACK DOOR LOCK ASSEMBLY (with Intelligent Key system) or BACK DOOR LOCK ASSEMBLY (without Intelligent Key system).
7. Push-button ignition switch (if equipped) Refer to SYSTEM DESCRIPTION .
8. Combination switch Refer to SYSTEM DESCRIPTION (with Intelligent Key system) or SYSTEM DESCRIPTION (without Intelligent Key system).
9. Combination meter Receives the dimmer signal from BCM. Refer to SYSTEM DESCRIPTION (type A) or SYSTEM DESCRIPTION (type B).
10. Audio unit (without navigation)
AV control unit (with navigation)		 Receives the dimmer signal from BCM. Refer to AUDIO UNIT (base audio), AUDIO UNIT (display audio) or AV CONTROL UNIT (navigation).
11. Front door switch LH (RH side similar) Refer to DOOR SWITCH (with Intelligent Key system) or DOOR SWITCH (without Intelligent Key system).
12. Rear door switch LH (RH side similar) Refer to DOOR SWITCH (with Intelligent Key system) or DOOR SWITCH (without Intelligent Key system).
