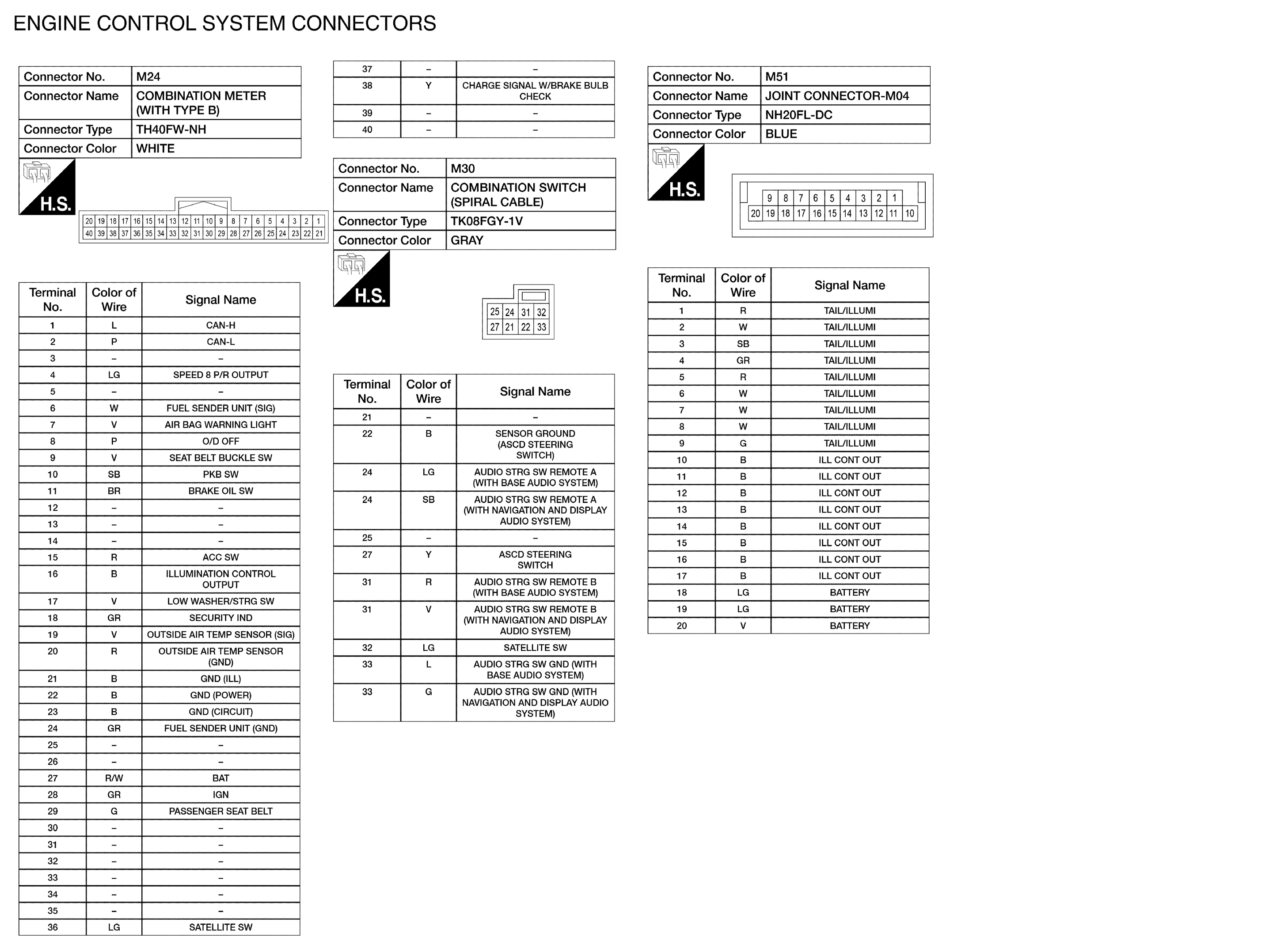

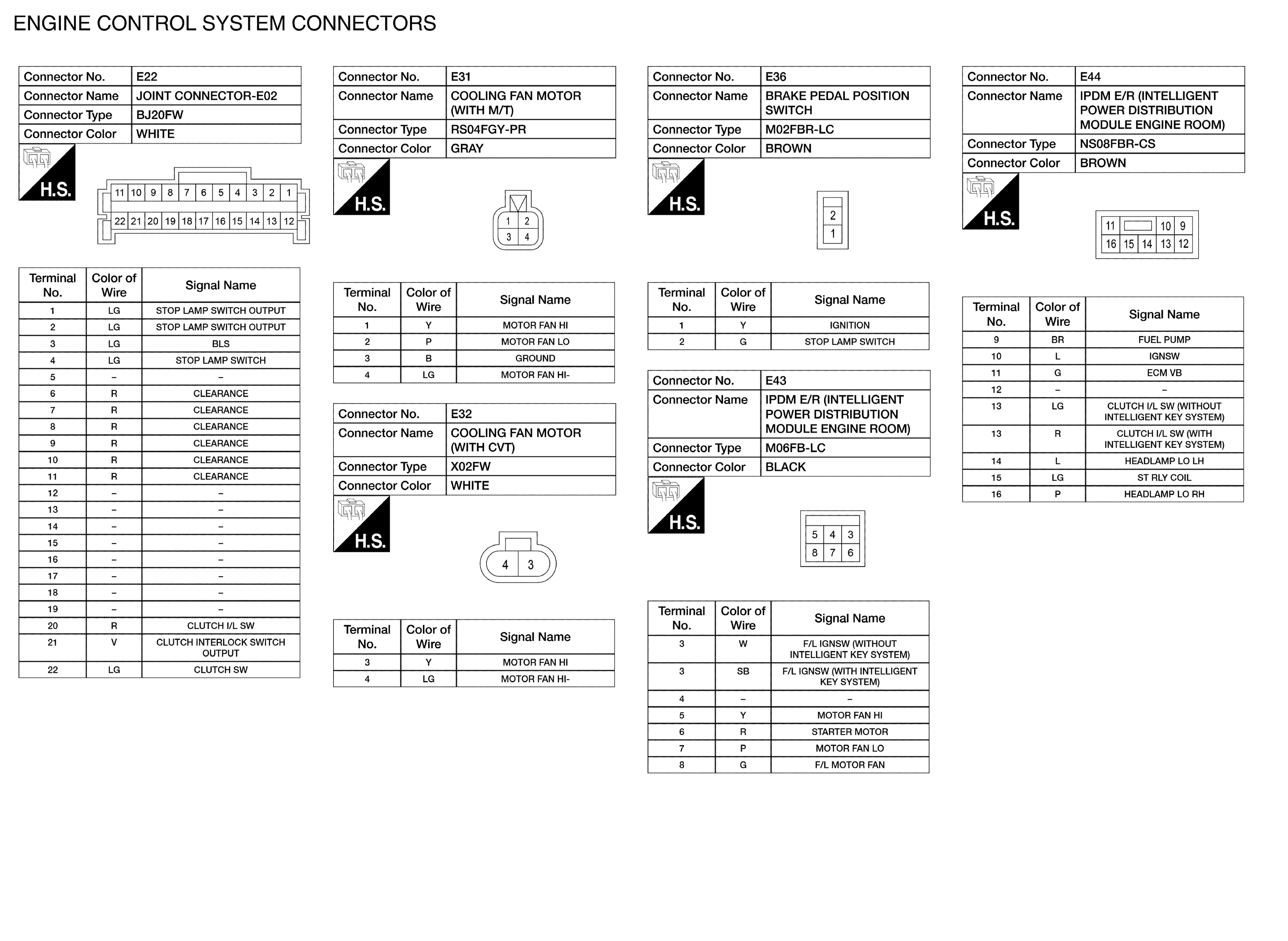

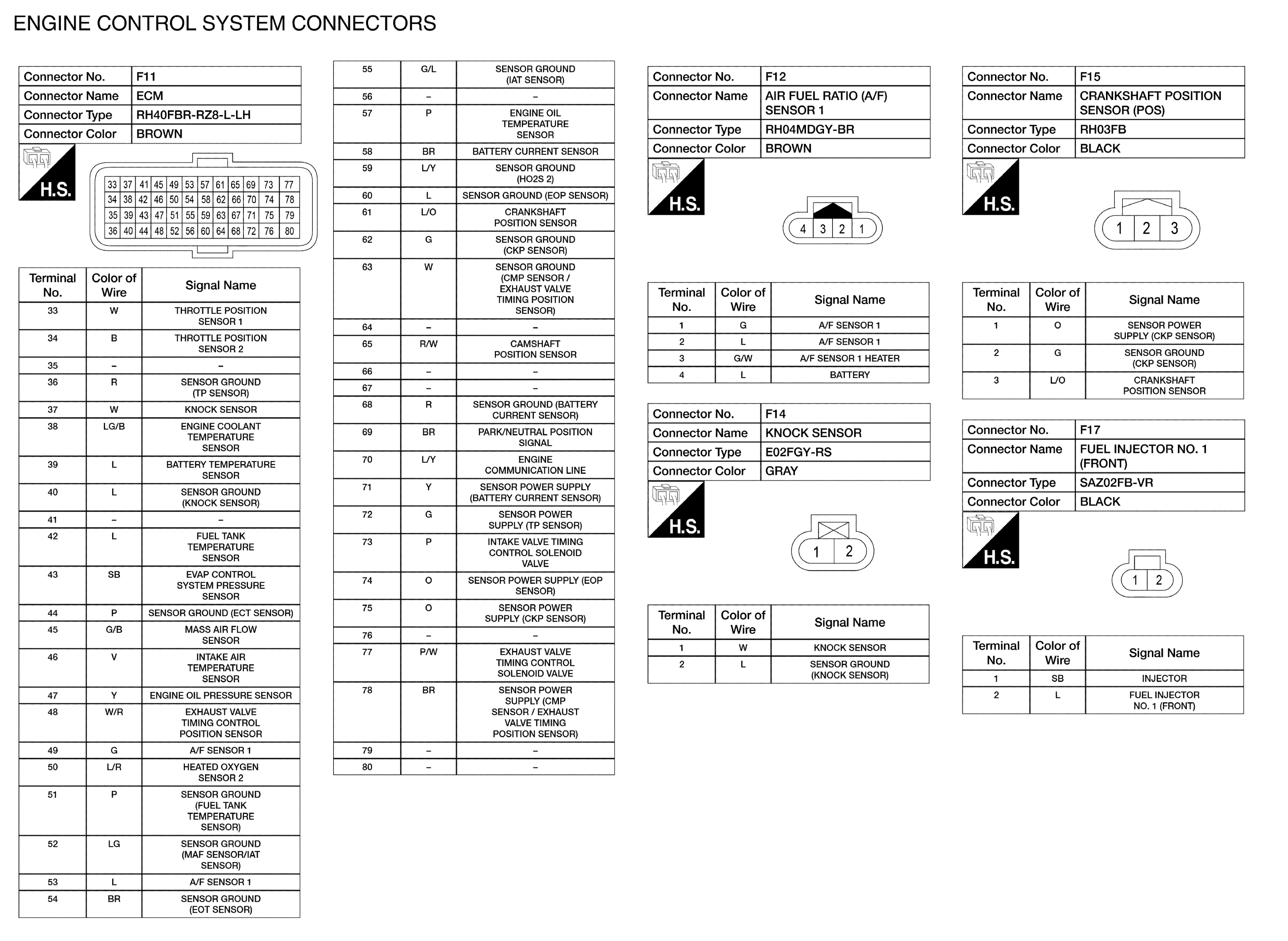

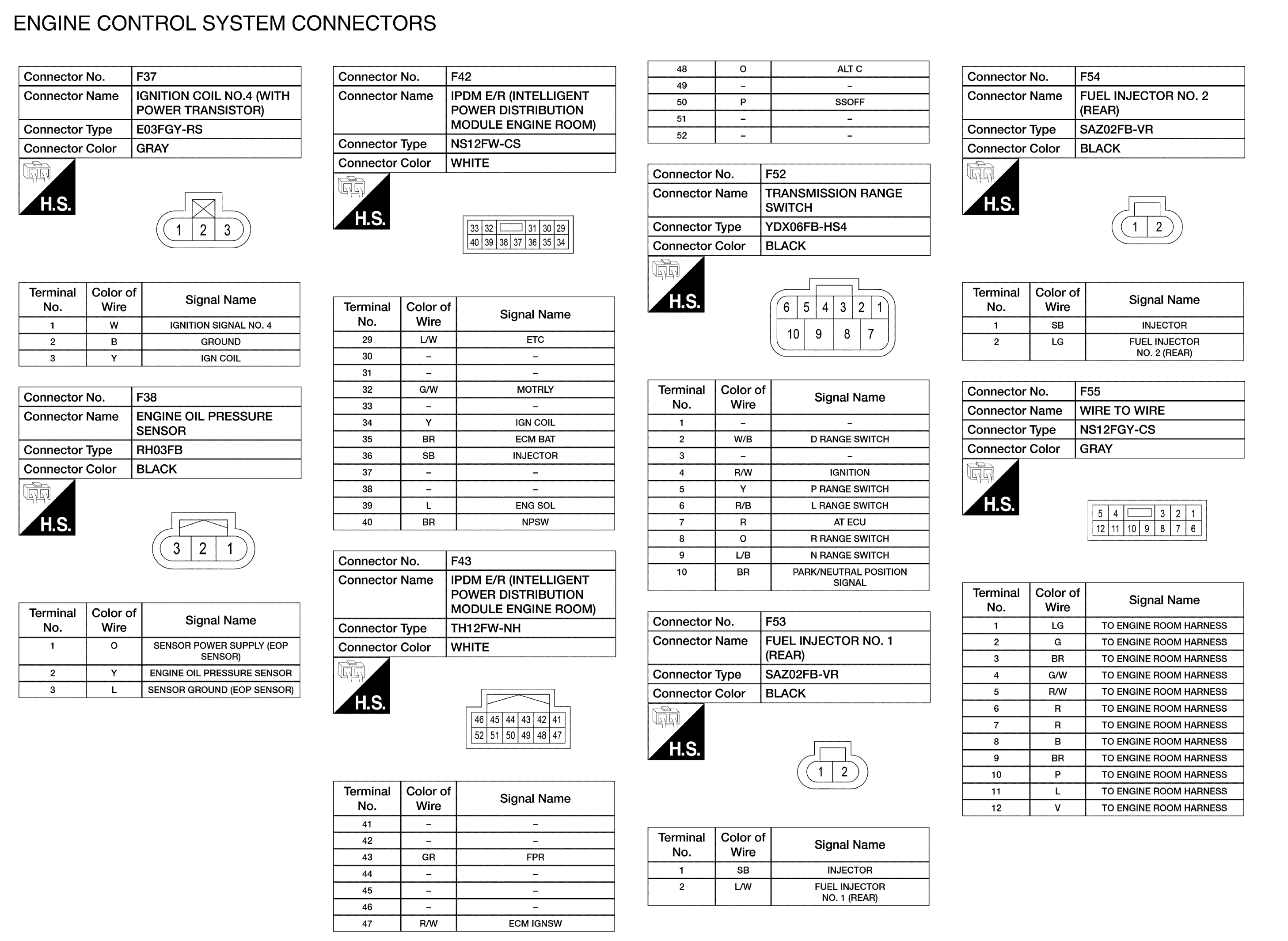

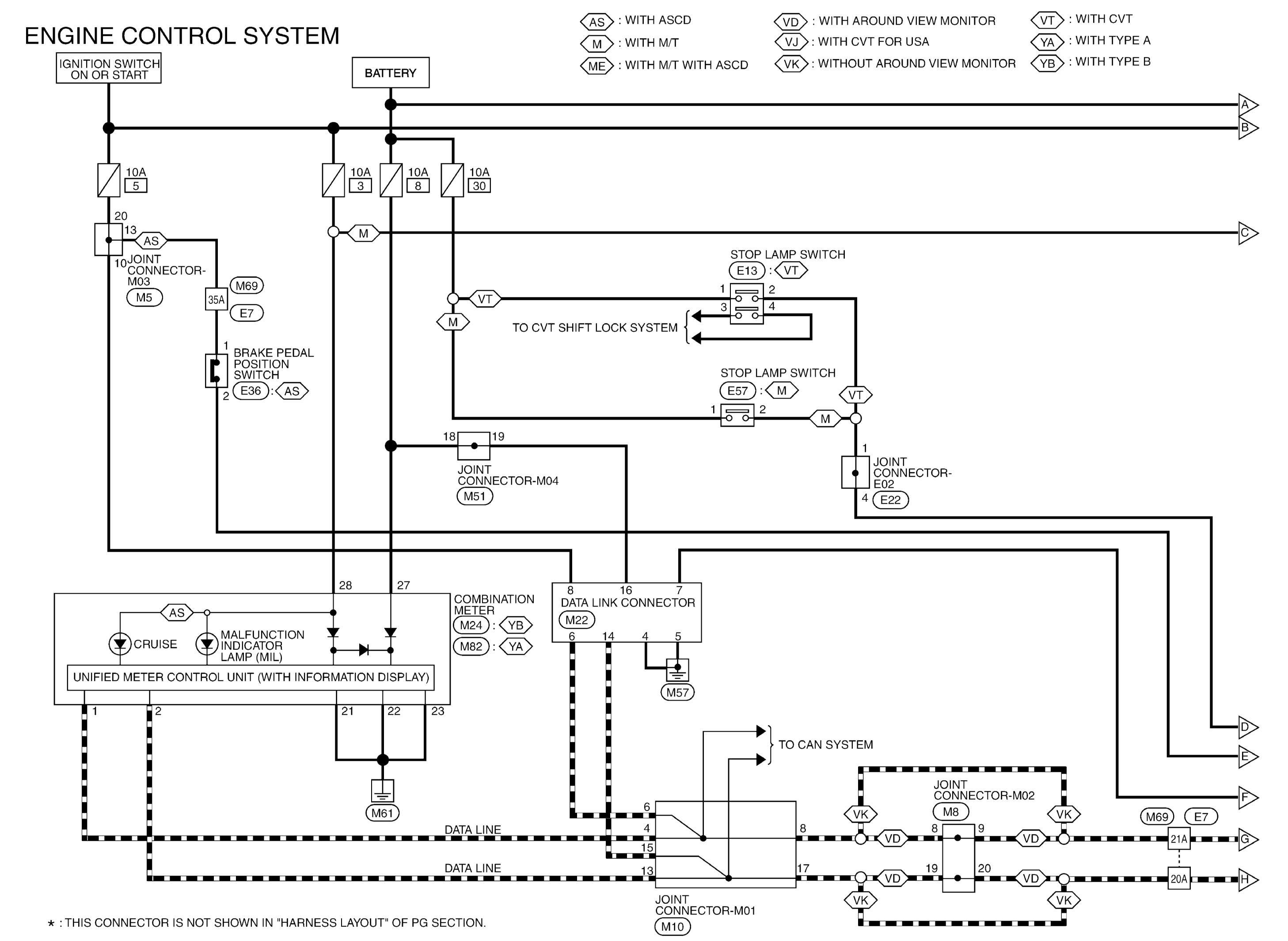

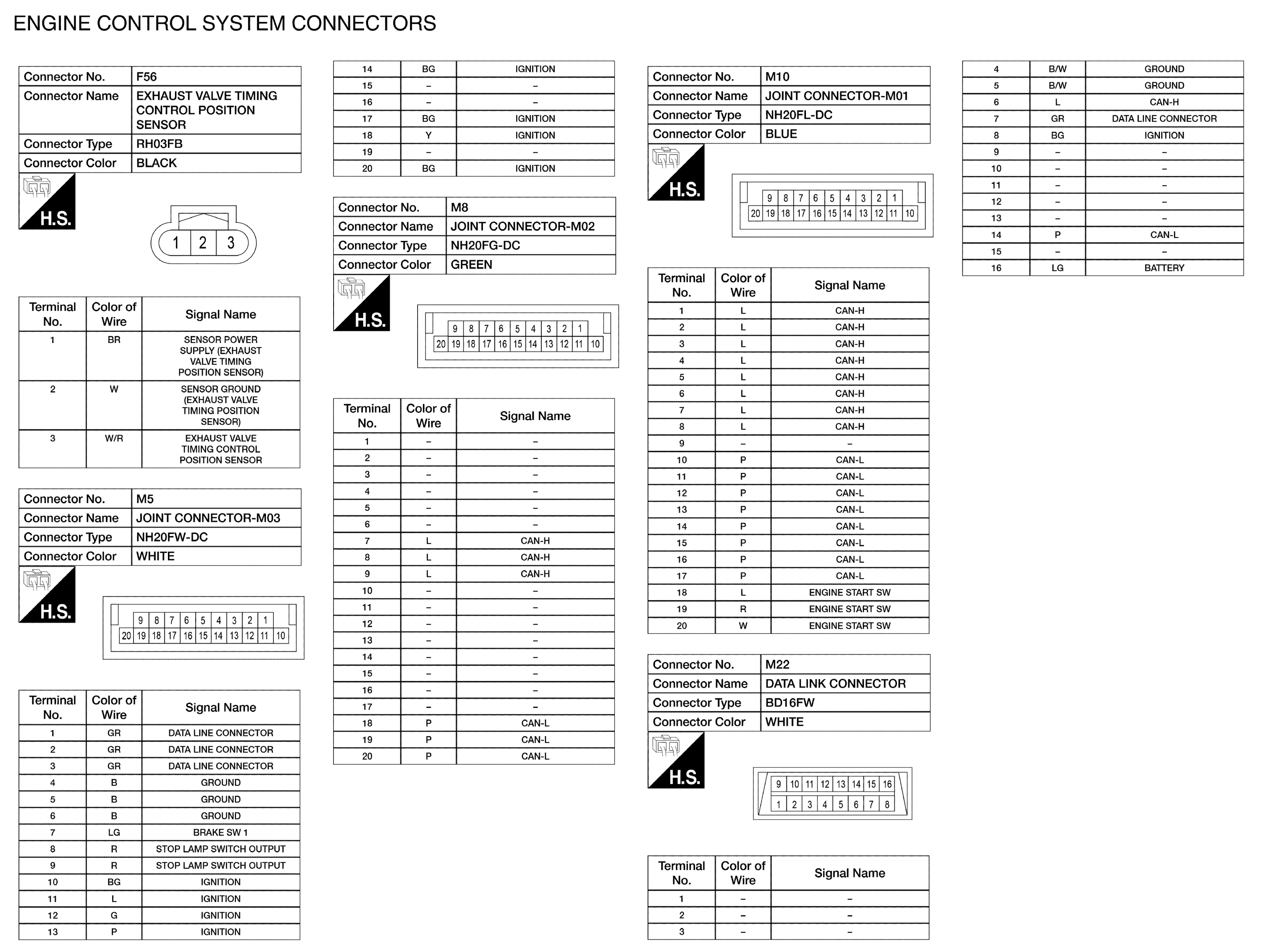

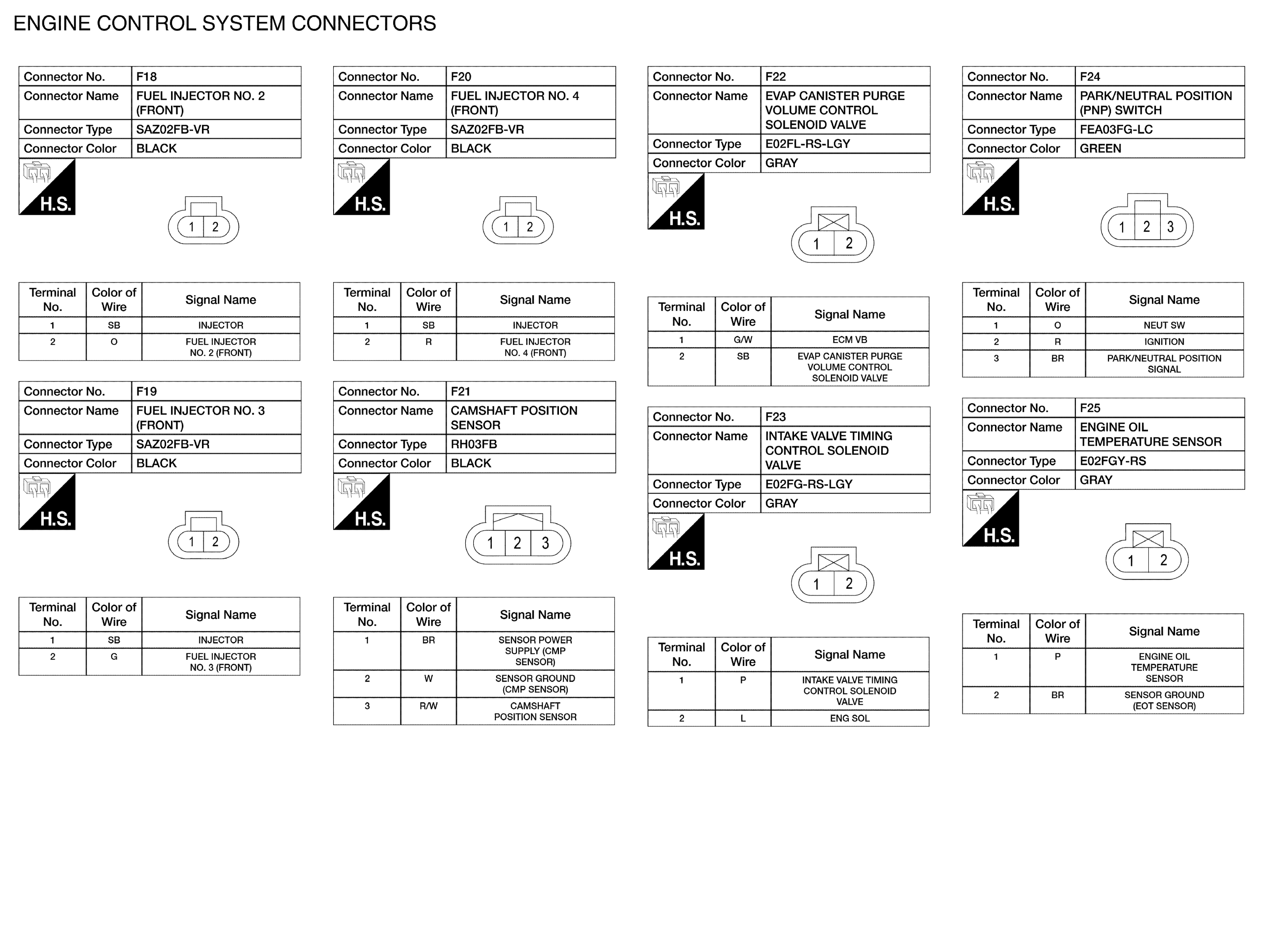

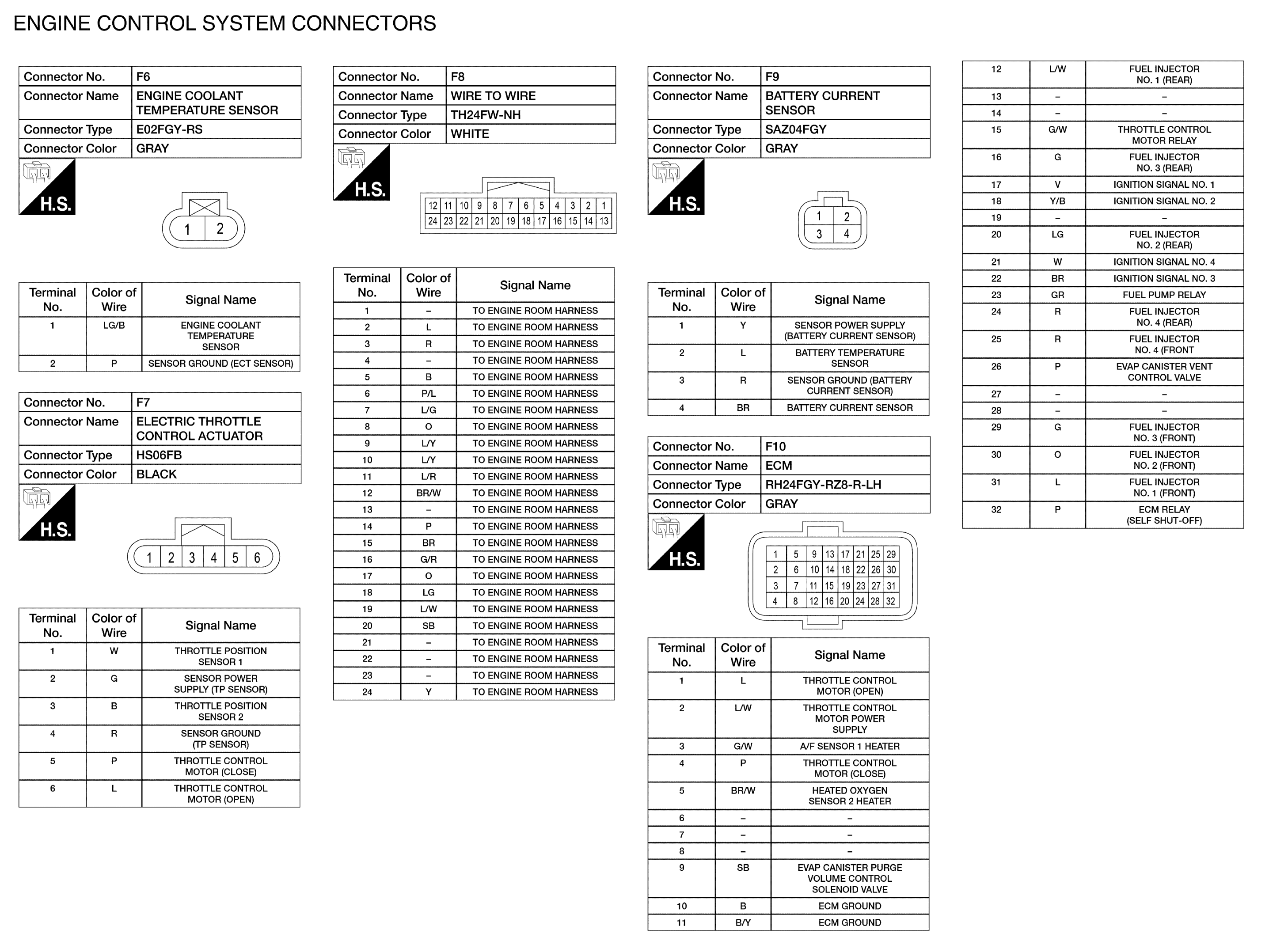

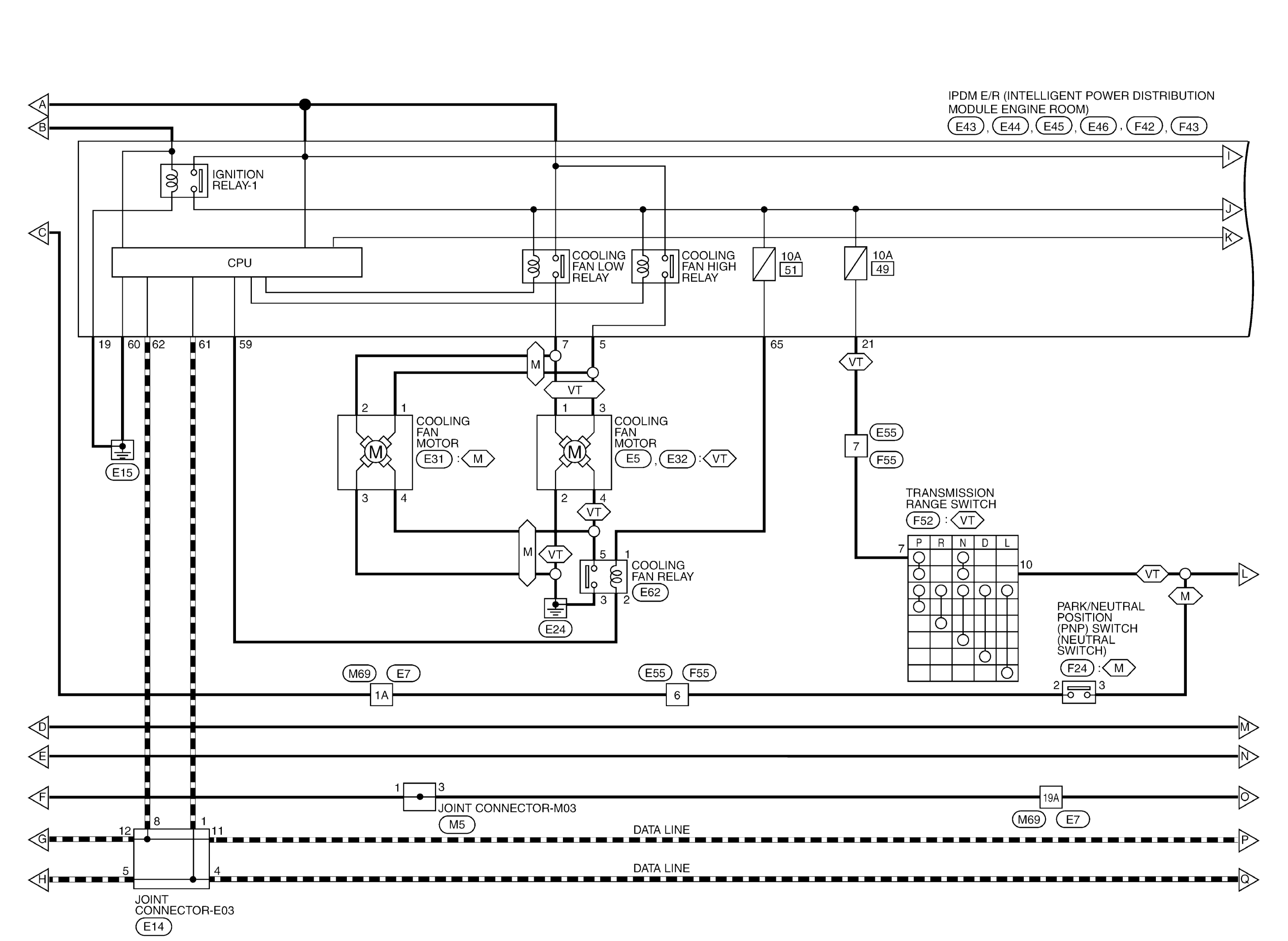

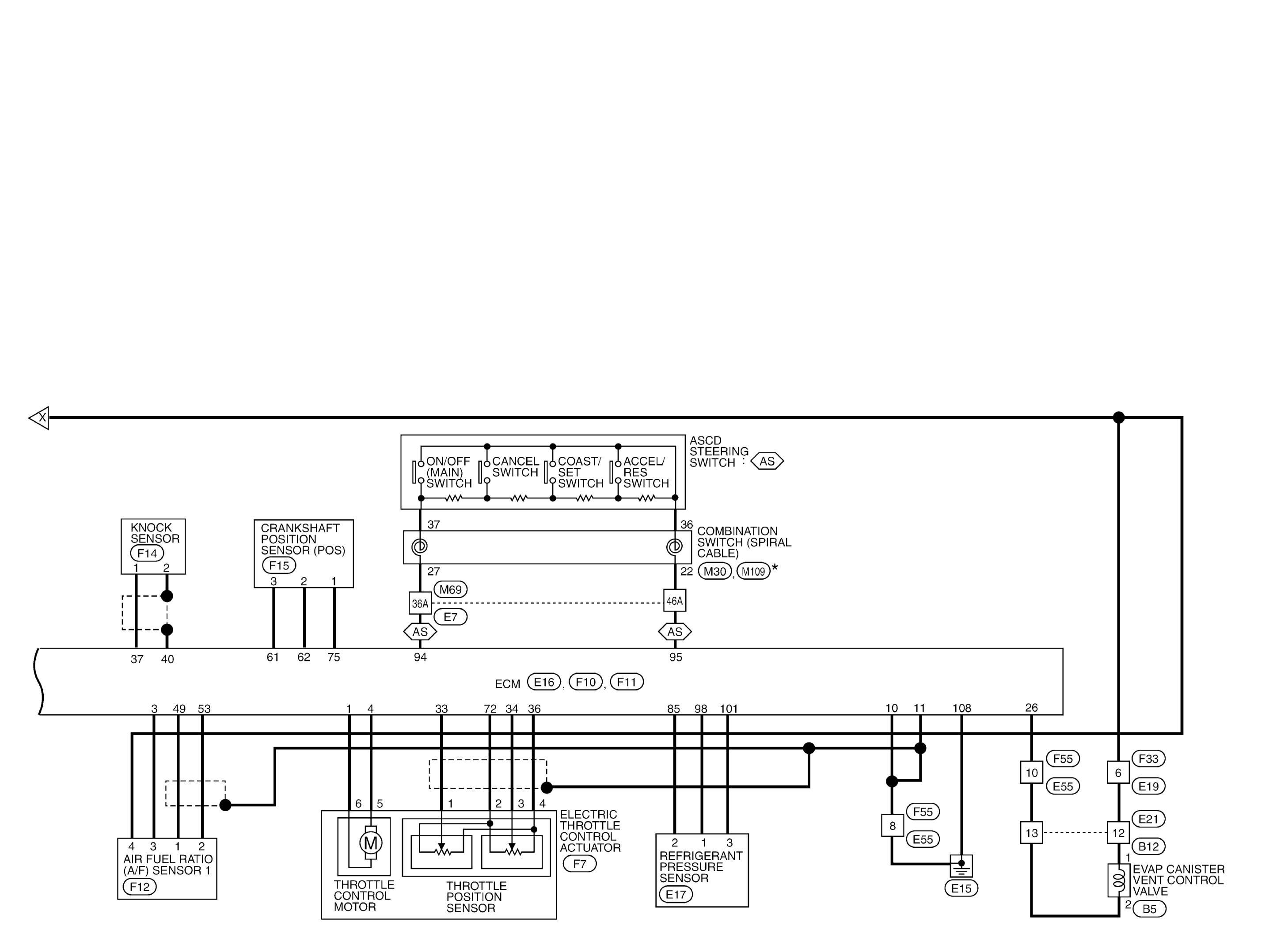

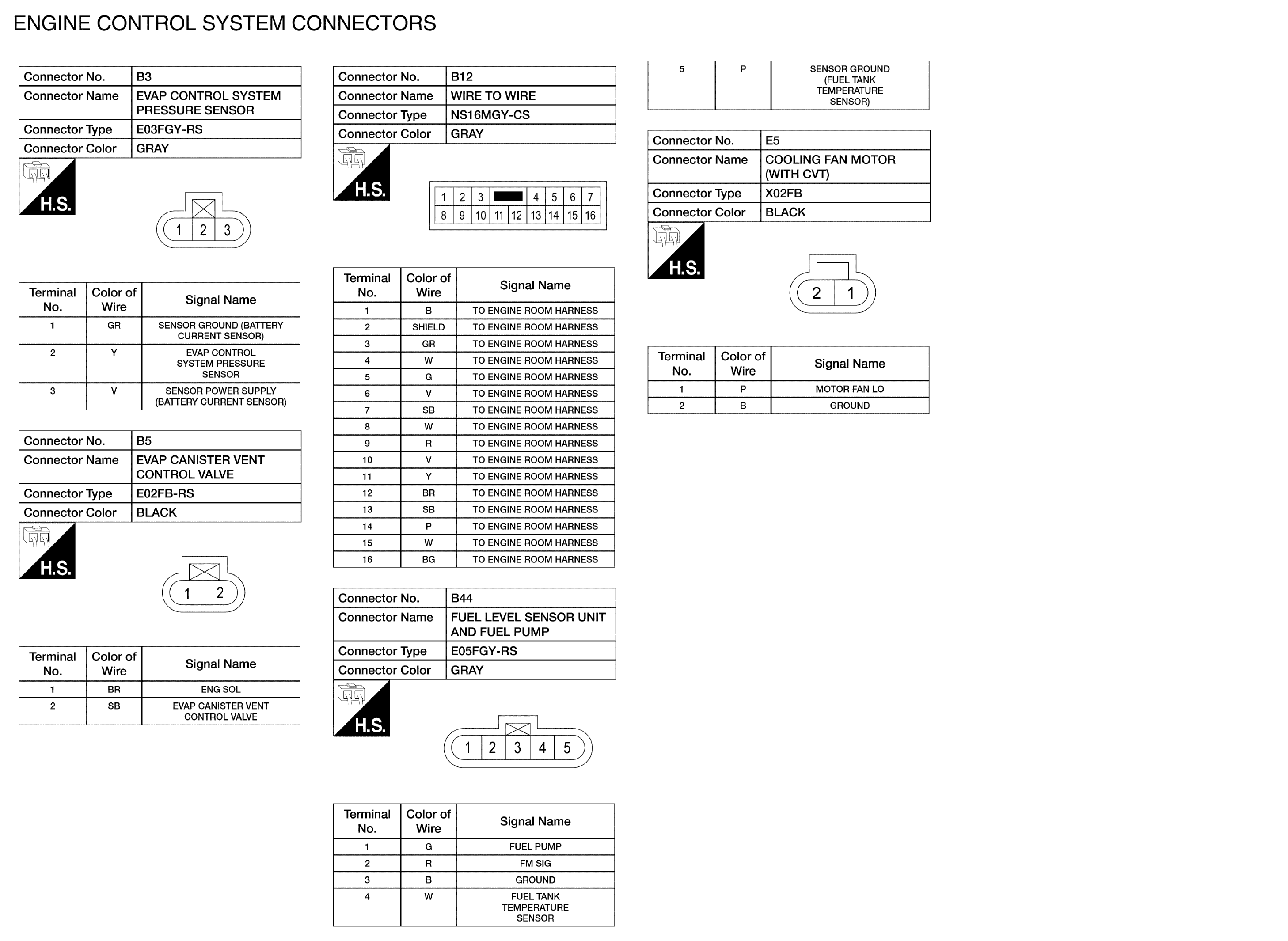

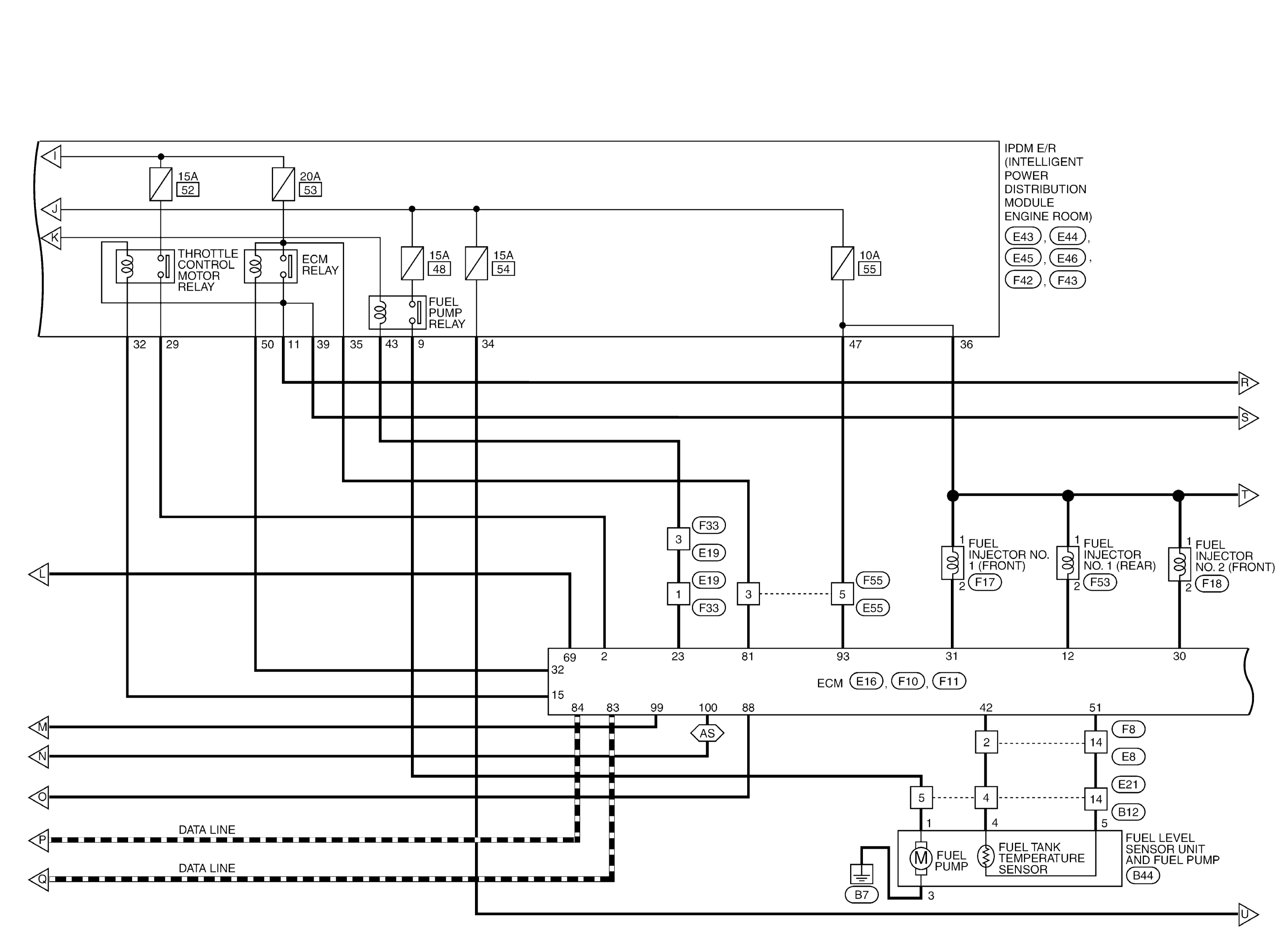

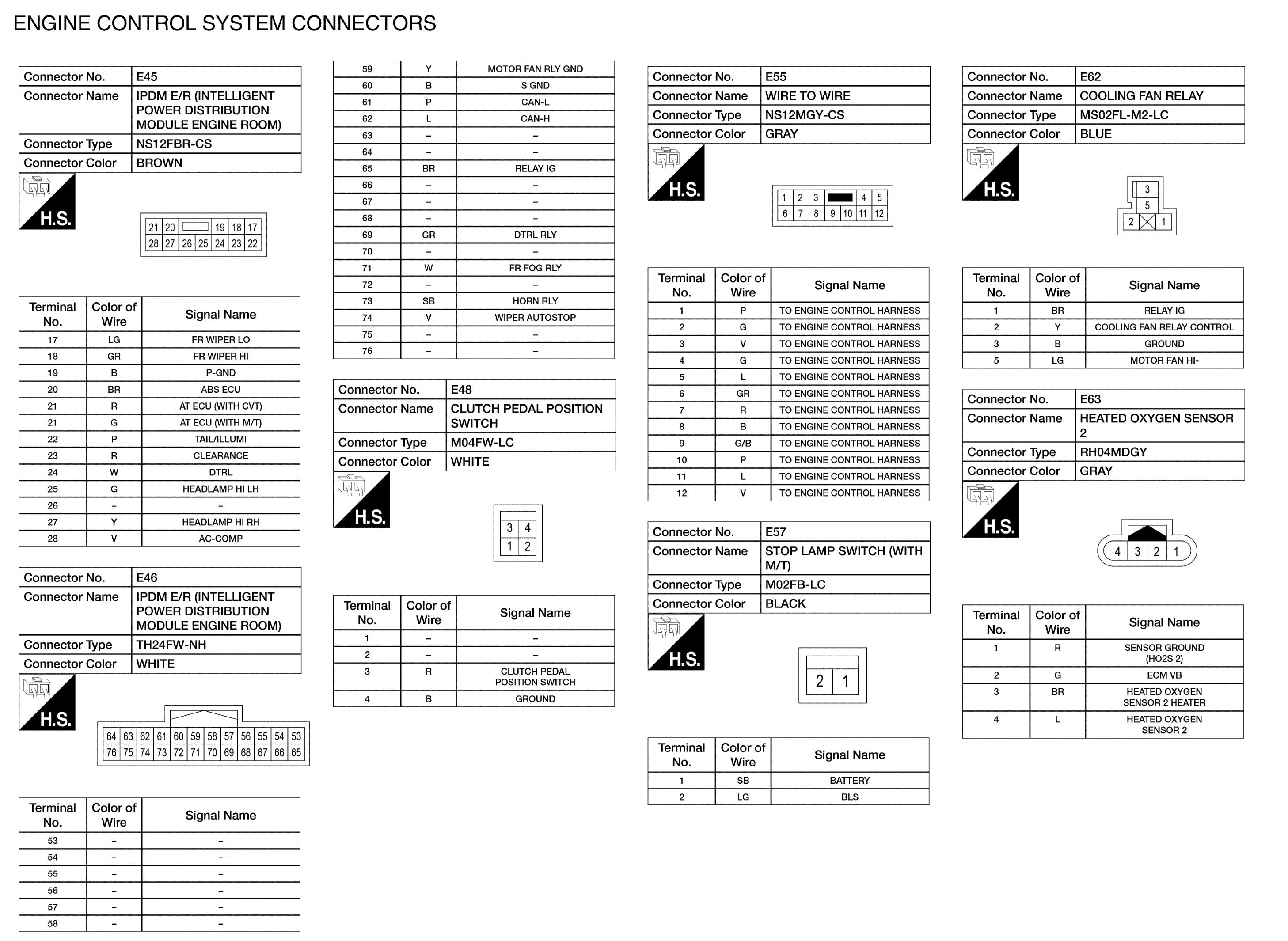

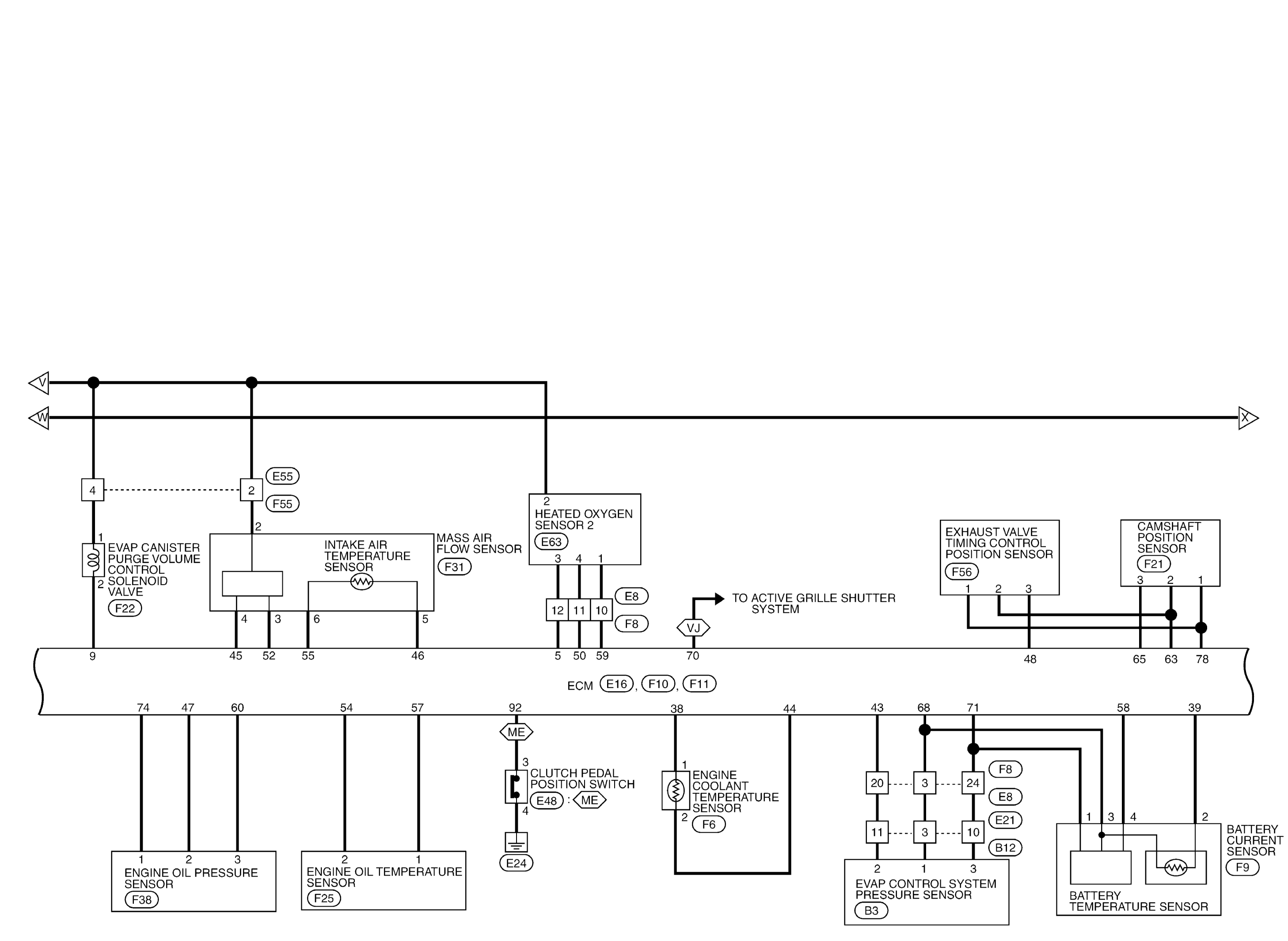

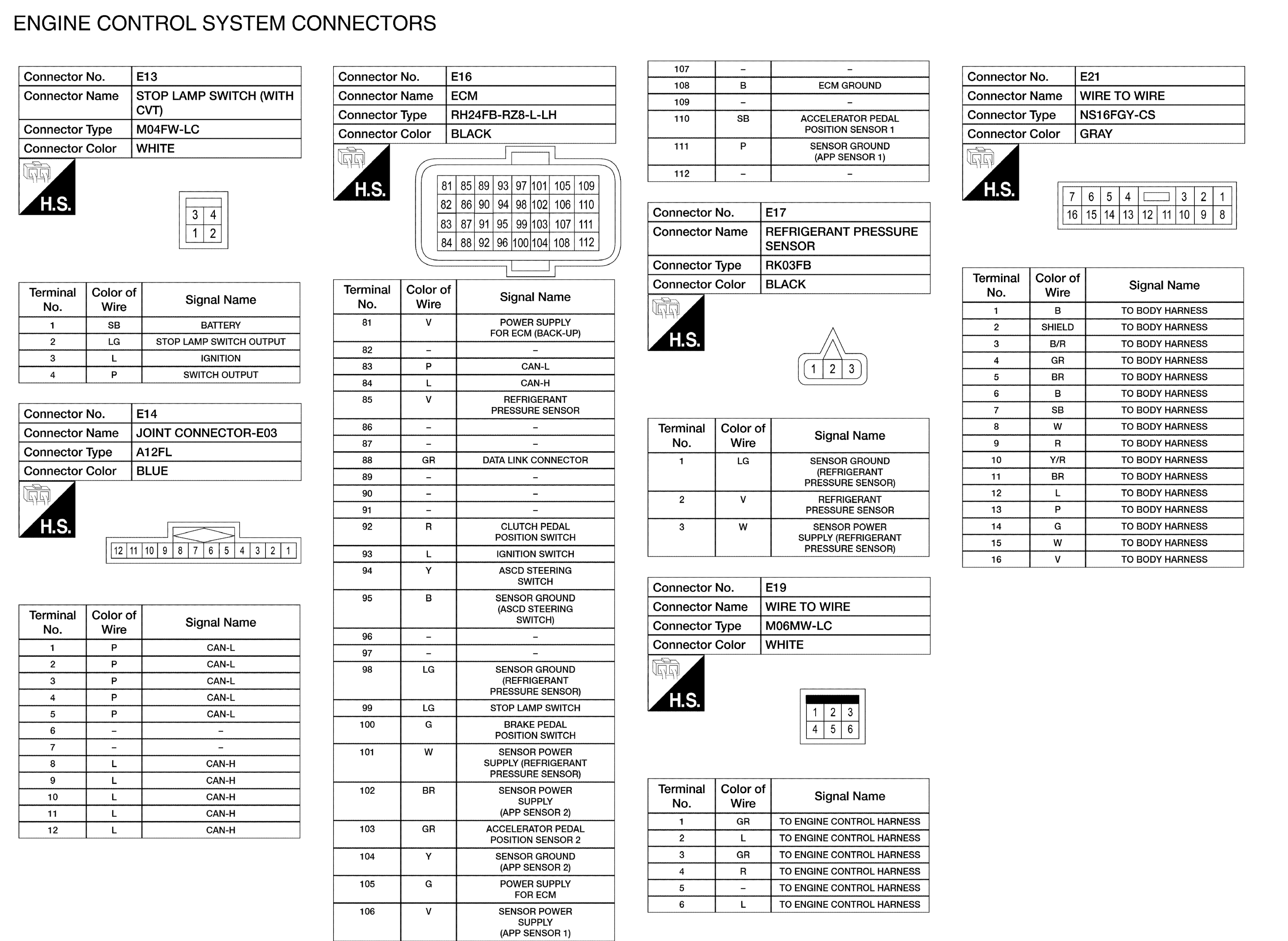

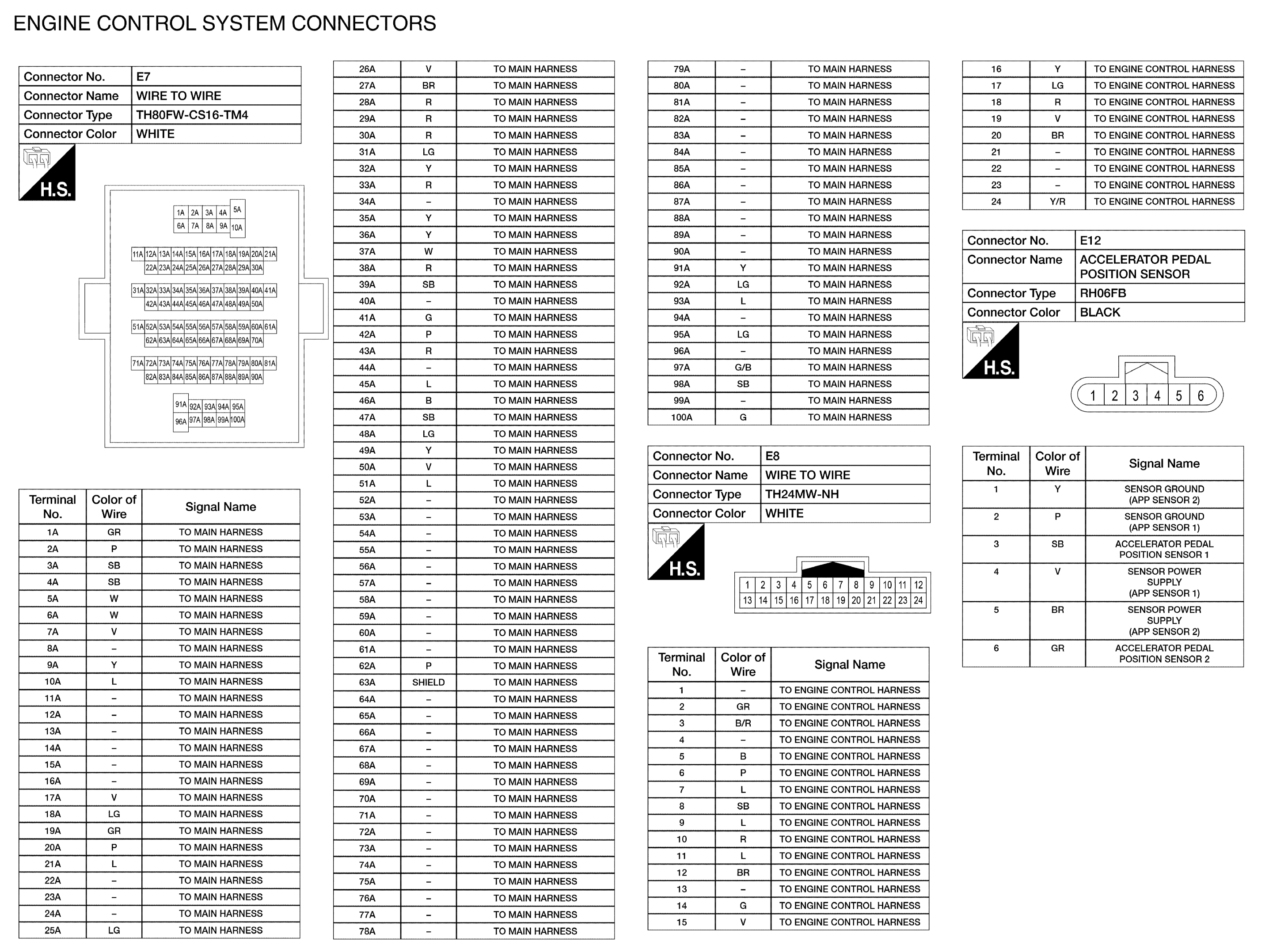

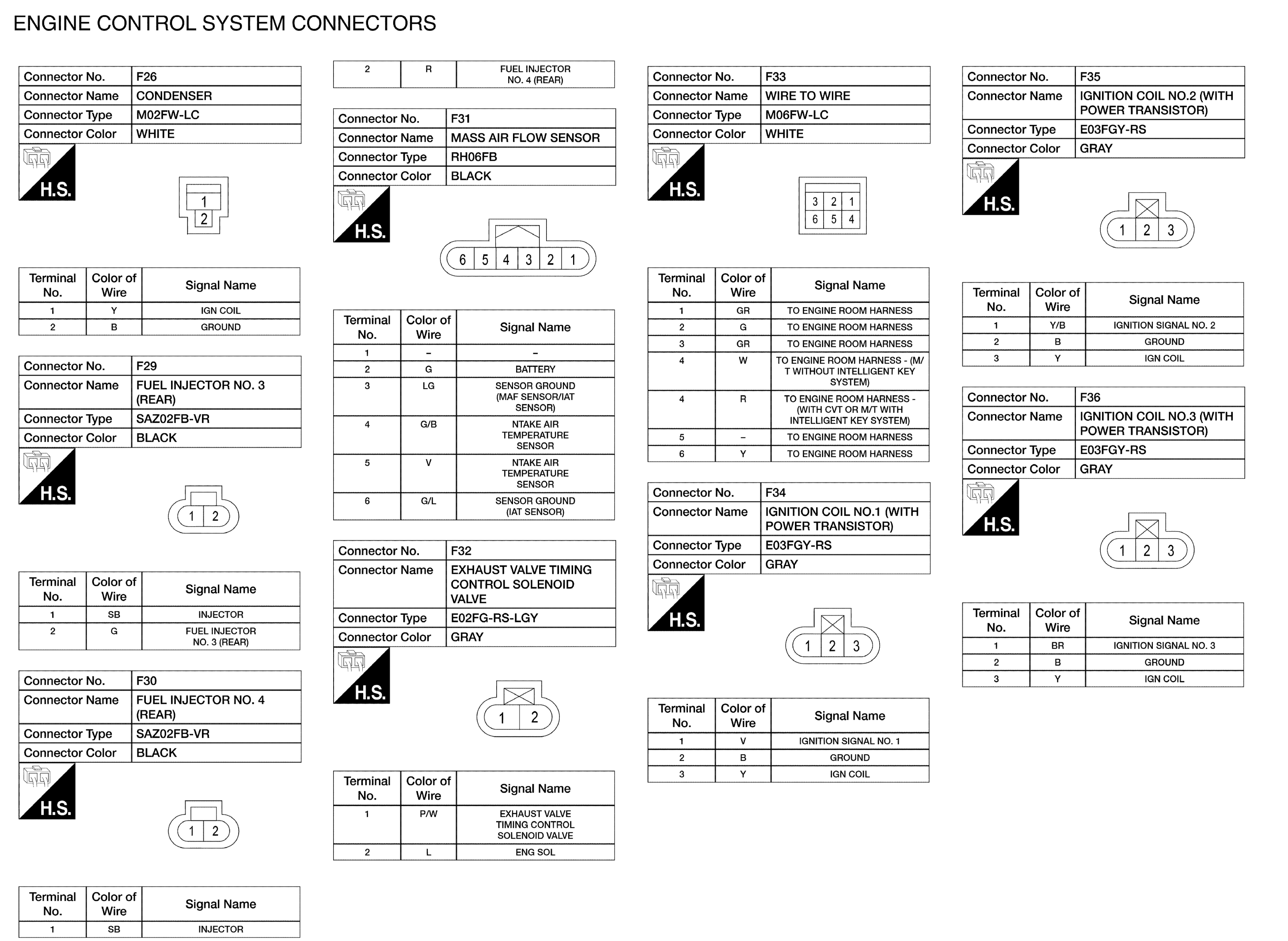

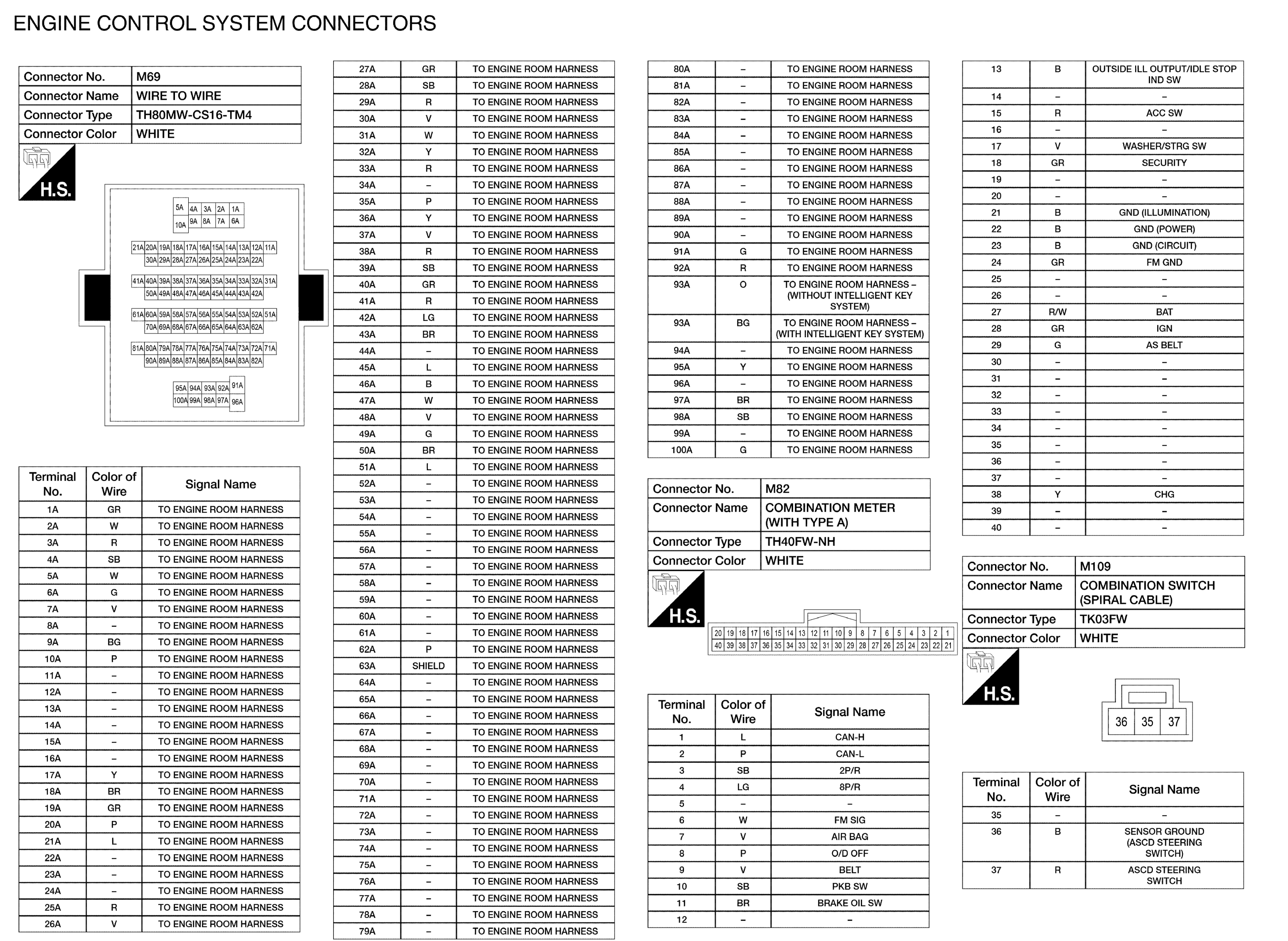

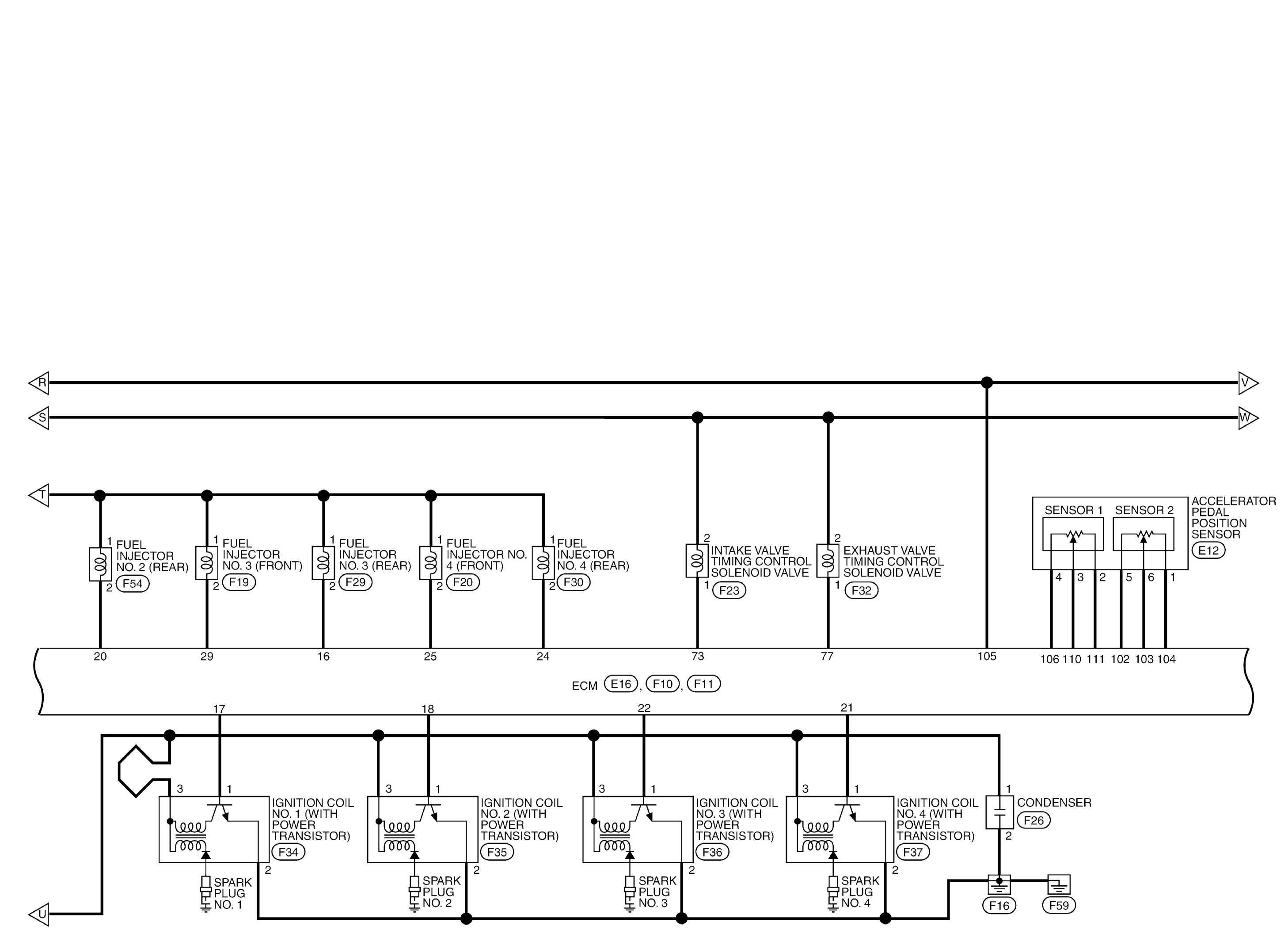

Engine Control System: Wiring Diagram
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
