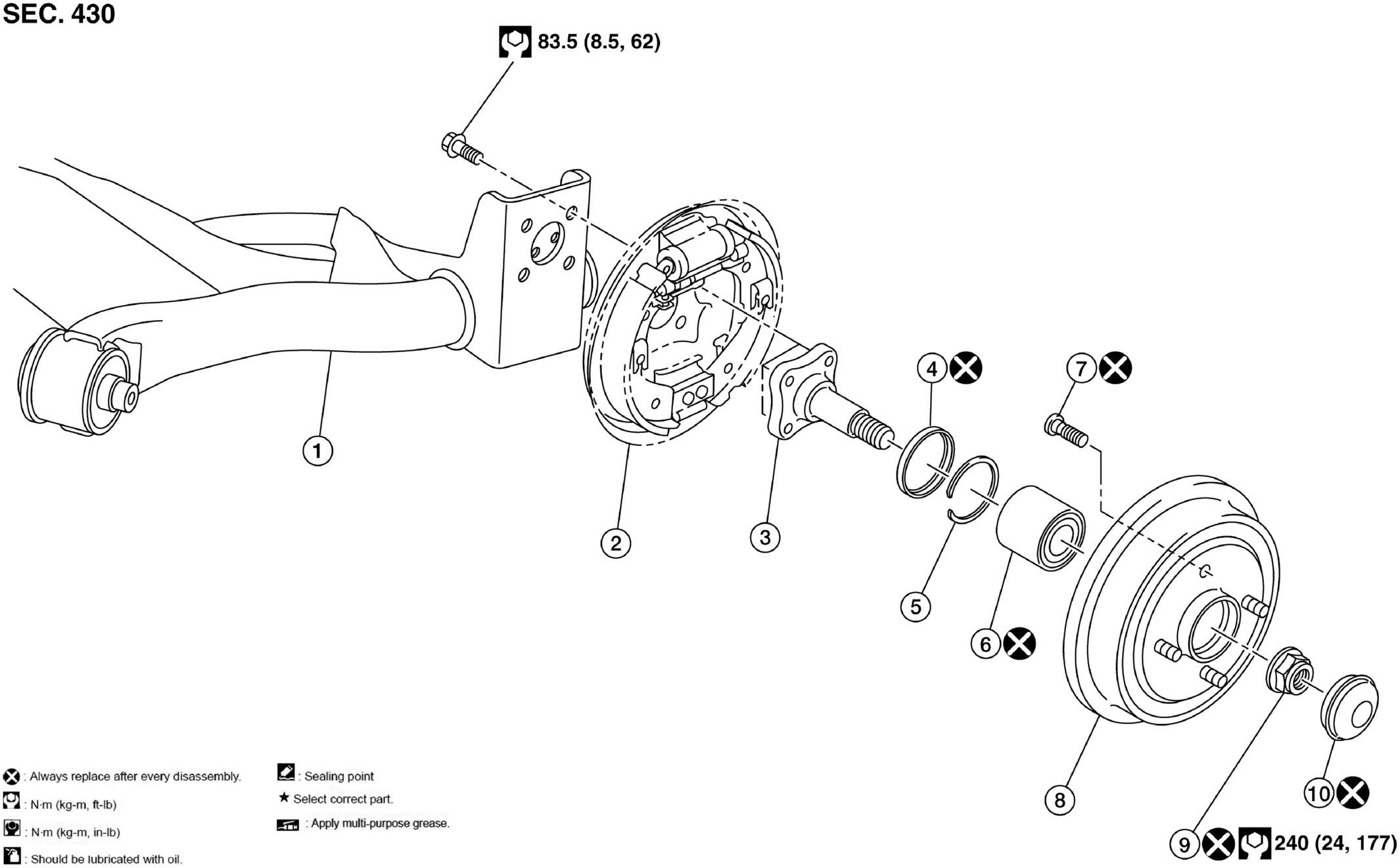

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Rear suspension beam |
2. |
Rear brake components |
3. |
Spindle |
| 4. |
Sensor rotor |
5. |
Snap ring |
6. |
Wheel bearing |
| 7. |
Wheel stud |
8. |
Brake drum |
9. |
Wheel hub lock nut |
| 10. |
Hub cap |
|
|
|
|
