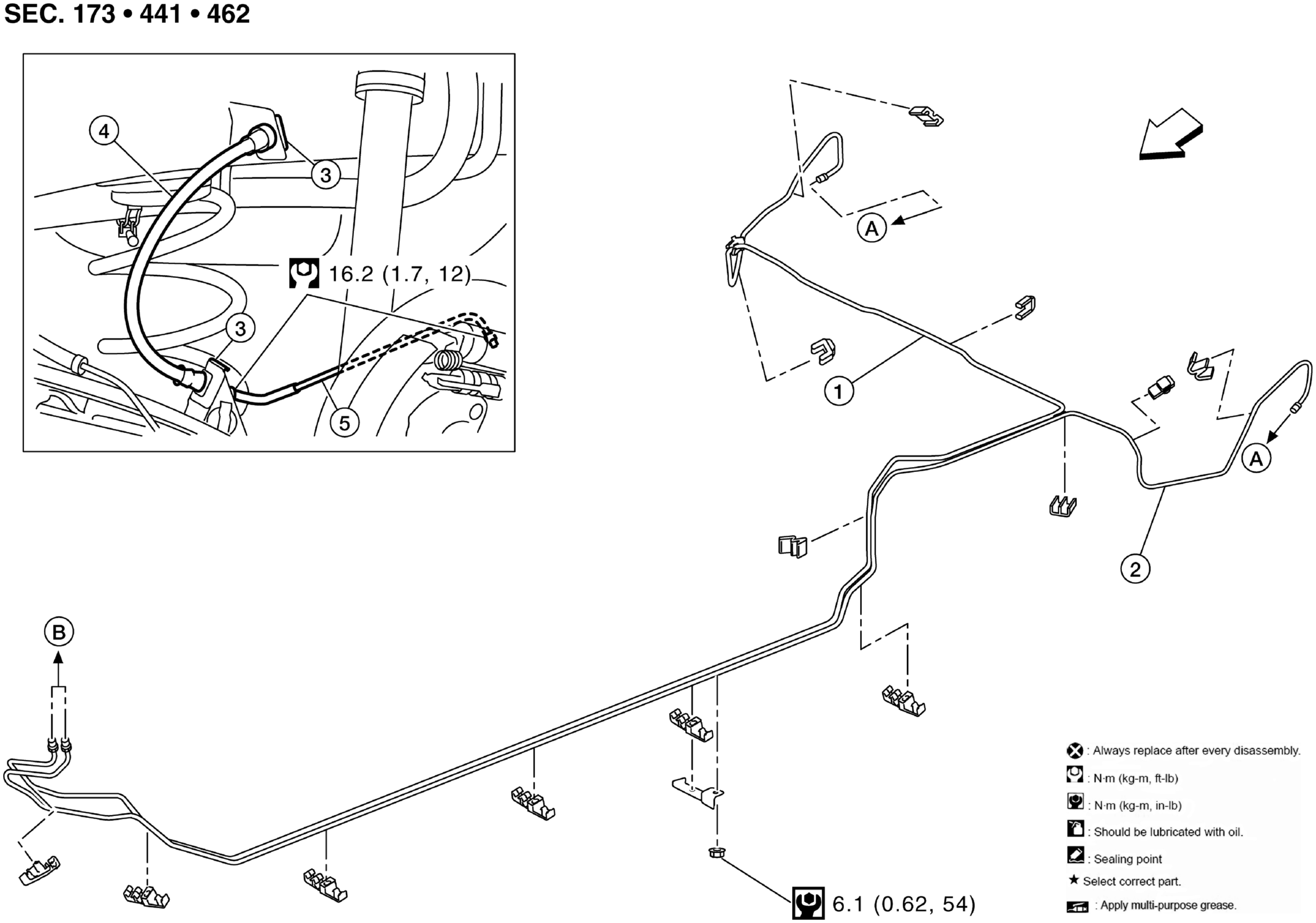

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Rear brake tube (RH) |
2. |
Rear brake tube (LH) |
3. |
Lock plate |
| 4. |
Rear brake hose |
5. |
Wheel cylinder brake tube |
A. |
To rear brake hose |
| B. |
To brake tube connector |
 |
Front |
|
|
