Exploded View

WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

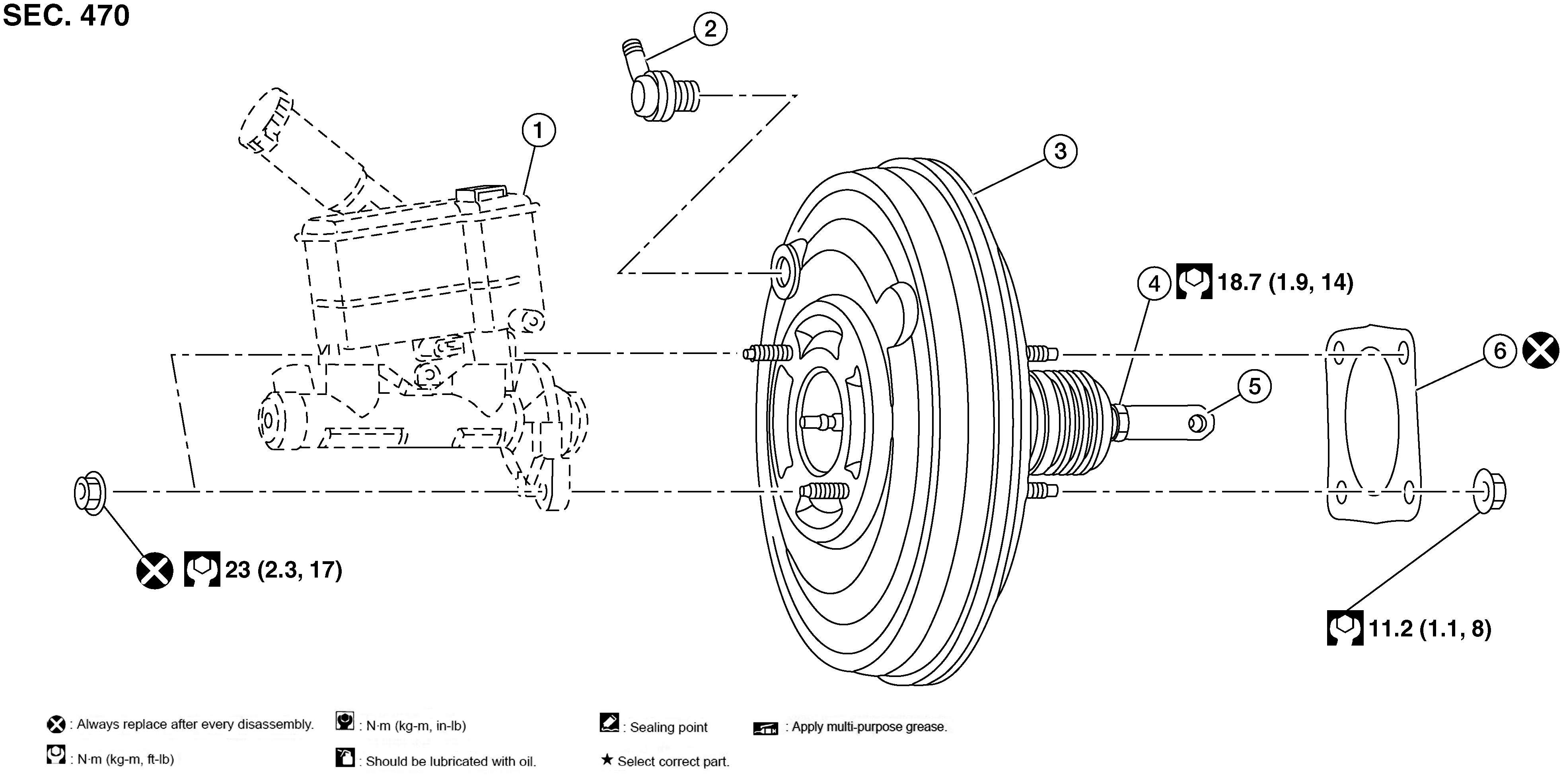

Fig 1: Brake Booster And Check Valve With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake master cylinder	2.	Check valve	3.	Brake booster
4.	Lock nut	5.	Clevis	6.	Gasket
