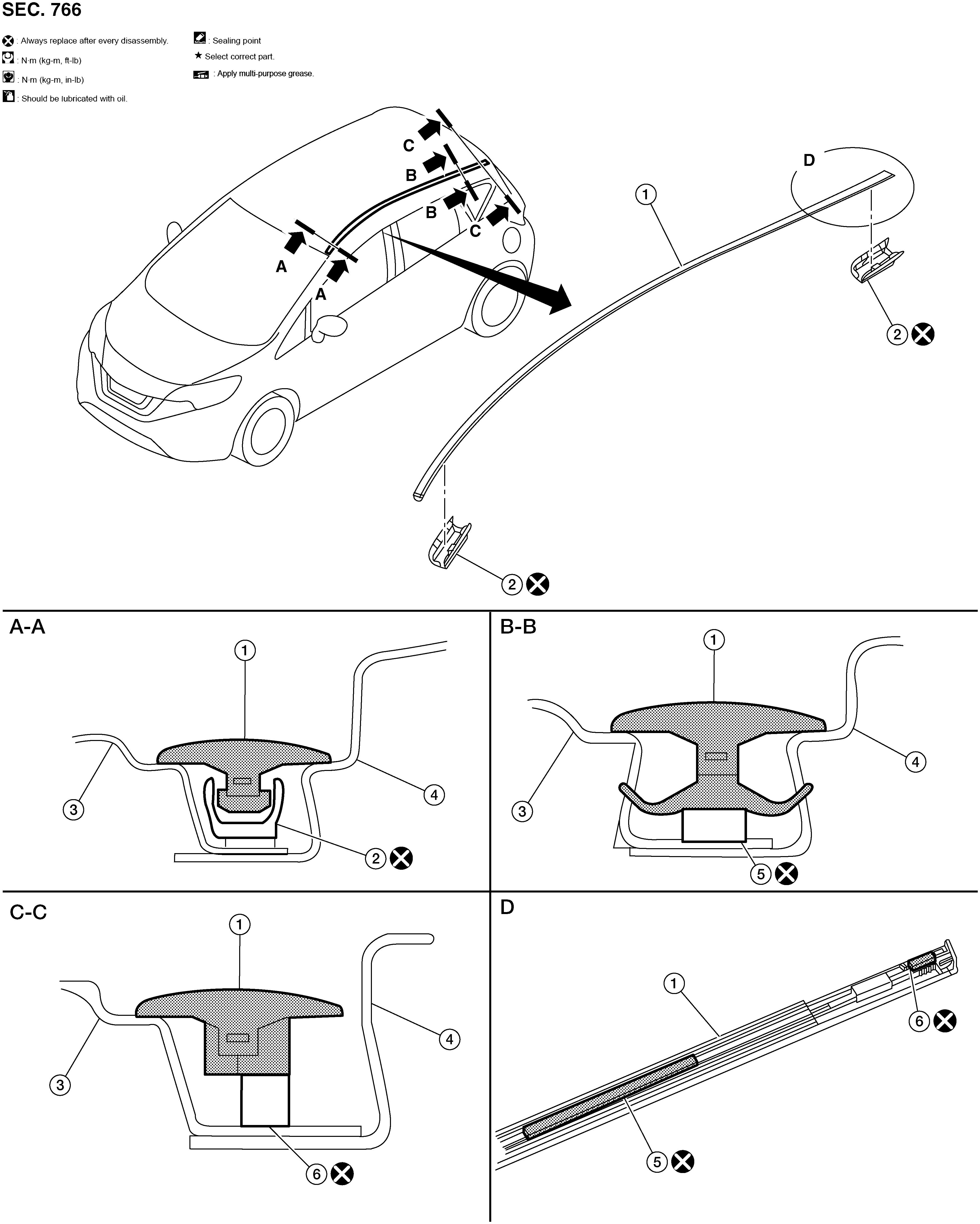

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Roof side molding |
2. |
Roof side molding clip |
3. |
Roof panel |
| 4. |
Body side outer panel |
5. |
Double-sided tape
[t: 2.5 mm (0.098 in)] |
6. |
Double-sided tape
[t: 4.0 mm (0.157 in)] |
