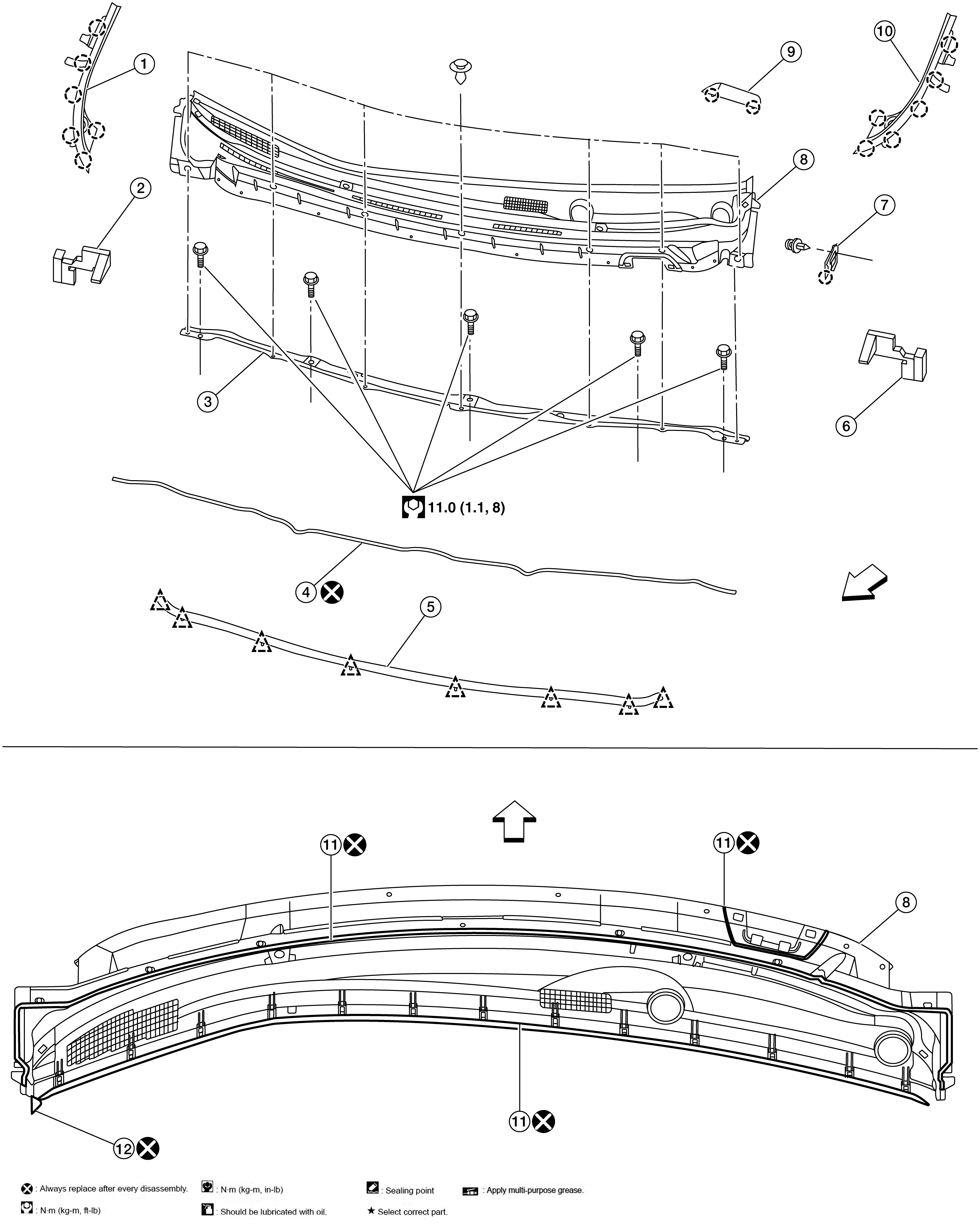

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Cowl top side cover (RH) | 2. | Front fender seal (RH) | 3. | Cowl top extension |
| 4. | EPT seal [t: 5.0 mm (0.197 in)] | 5. | Cowl top cover seal | 6. | Front fender seal (LH) |
| 7. | One-way valve | 8. | Cowl top cover | 9. | Cowl top cover cap |
| 10. | Cowl top side cover (LH) | 11. | EPT seal [t: 3.0 mm (0.118 in)] | 12. | EPT seal [t: 15.0 mm (0.591 in)] |
| Front | Clip | Pawl |
