Engine Oil Pressure Check

WARNING:
  • Be careful not to burn yourself, as engine oil may be hot.
  • When checking engine oil pressure, shift selector should be in the "P" (Park) or "N" (Neutral) position, and apply parking brake securely.
  1. Check engine oil level.

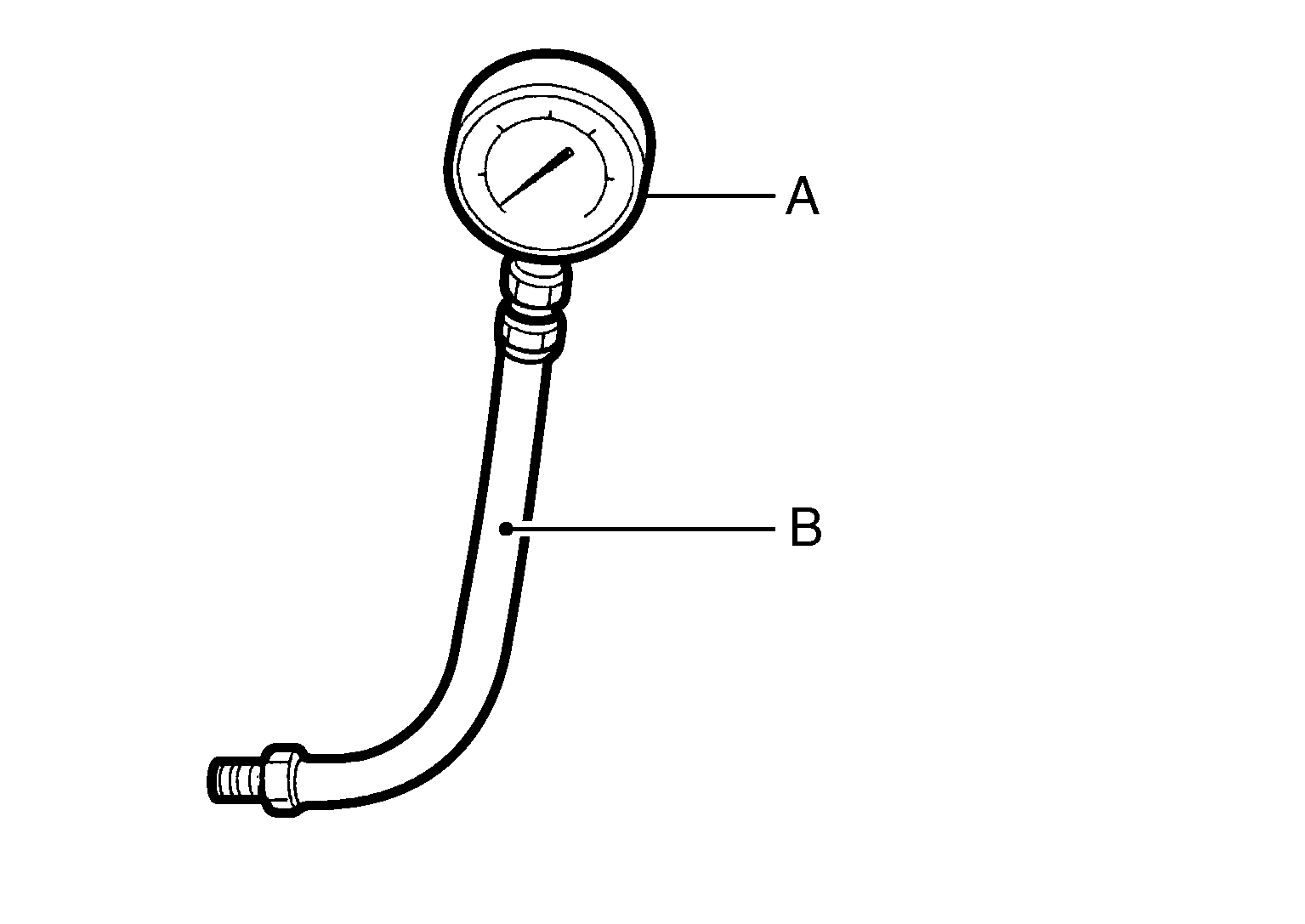

  2. Disconnect harness connector from oil pressure sensor. Remove oil pressure sensor using suitable tool and install suitable tools (A/B).
    GNSJPBIA0074Z-074Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not drop or shock oil pressure sensor.
  3. Start engine and warm it up to normal operating temperature.
  4. Check engine oil pressure with engine running under no-load.
    NOTE:
    • When engine oil temperature is low, engine oil pressure becomes high.
    • If difference is extreme, check oil passage and oil pump for engine oil leaks.

    Engine oil pressure

    : Refer to Engine Oil Pressure .
  5. After the inspections, install oil pressure sensor as follows:
    1. Remove old liquid gasket sticking to oil pressure sensor and engine.
    2. Apply liquid gasket and tighten oil pressure sensor to specification.

      Use Genuine Liquid Gasket or equivalent. Refer to Recommended Chemical Products and Sealants .

      Tightening torque

      : Refer to Exploded View .
  6. Check engine oil level.
  7. After warming up engine, check that there is no engine oil leaks with the running engine.
