Exploded View

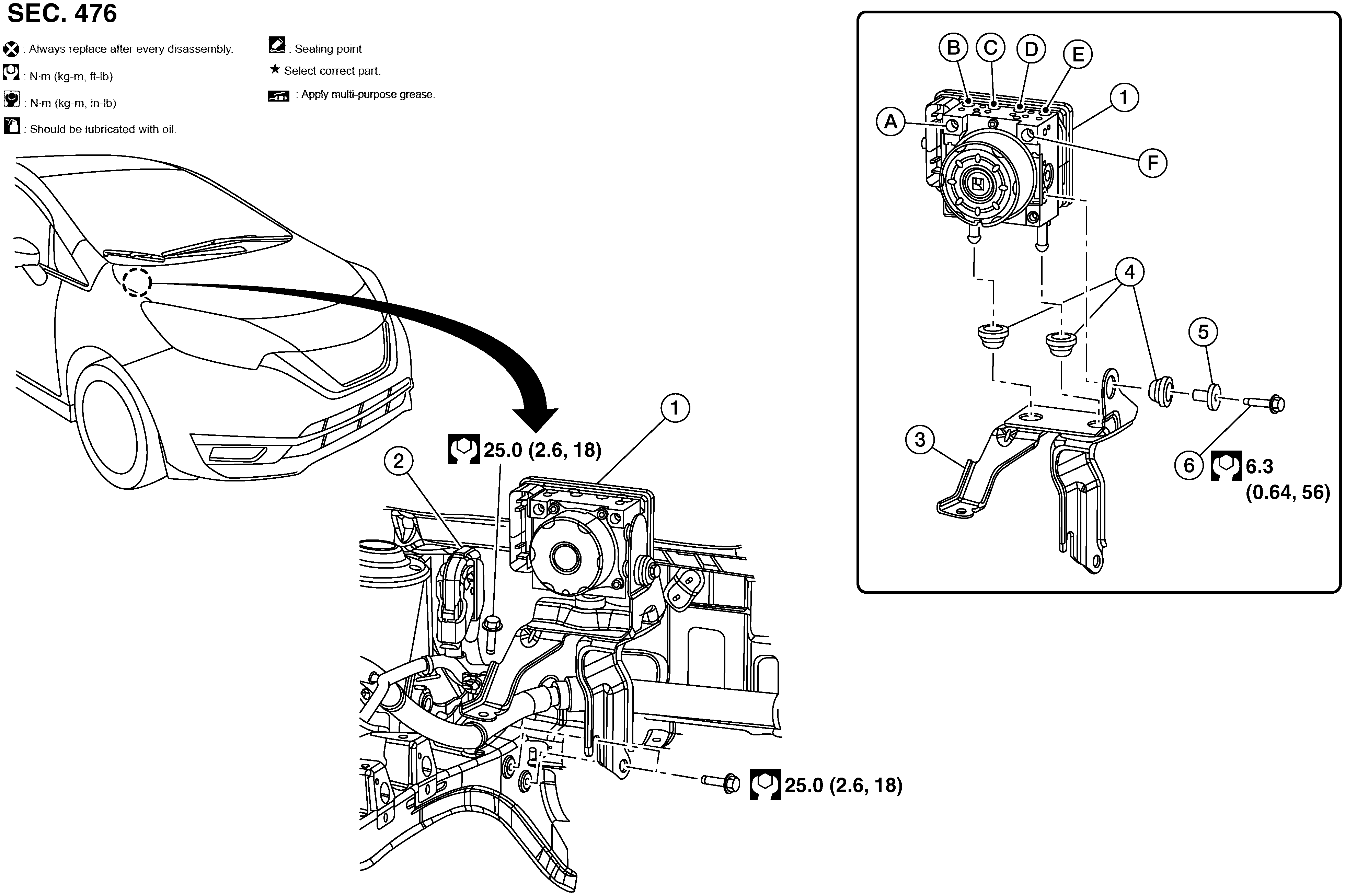

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	ABS actuator and electric unit (control unit) harness connector	3.	Bracket
4.	Bushing	5.	Insulating clip	6.	Bolt
A.	To master cylinder secondary side. Refer to Exploded View .	B.	To rear brake tube (RH). Refer to Exploded View .	C.	To front brake tube (LH). Refer to Exploded View .
D.	To front brake tube (RH). Refer to Exploded View .	E.	To rear brake tube (LH). Refer to Exploded View .	F.	To master cylinder primary side. Refer to Exploded View .
