Input/Output Signal Standard

Terminal No. (Wire color)		Description		Condition		Value (Approx.)
+	-	Signal	Input/Output
2 (R/B)	Ground	L range switch	Input	Ignition switch ON	Selector lever: "L" position	10 - 16 V
					Other than the above	0 V
4 (W/B)	Ground	D range switch	Input		Selector lever: "D" position	10 - 16 V
					Other than the above	0 V
5 (L/B)	Ground	N range switch	Input		Selector lever: "N" position	10 - 16 V
					Other than the above	0 V
6 (O)	Ground	R range switch	Input		Selector lever: "R" position	10 - 16 V
					Other than the above	0 V
7 (Y)	Ground	P range switch	Input		Selector lever: "P" position	10 - 16 V
					Other than the above	0 V
11 (LG)	Ground	Sensor ground	Input	Always		0 V
12 (G/W)	Ground	CVT fluid temperature sensor	Input	Ignition switch ON	CVT fluid: Approx. 20°C	2.01 - 2.05 V
					CVT fluid: Approx. 50°C	1.45 - 1.50 V
					CVT fluid: Approx. 80°C	0.90 - 0.94 V
14 (G/R)	Ground	G sensor	Input	Ignition switch ON	When the vehicle stops on a flat road	2.5 V
15* (V)	-	-	-	-		-
16 (L/R)	Ground	Secondary pressure sensor	Input	Selector lever: "N" position At idle		0.88 - 0.92 V
21 (R/W)	-	ROM ASSY (CHIP SELECT)	-	-		-
22 (V)	-	ROM ASSY (DATA I/O)	-	-		-
23 (P/L)	-	CAN-L	Input/Output	-		-

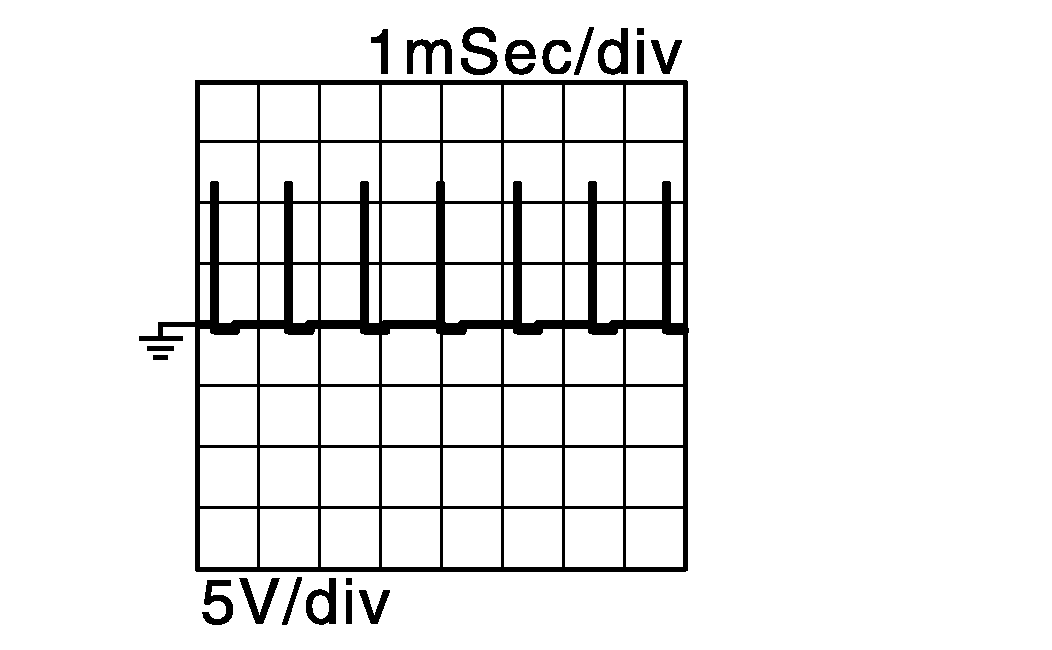

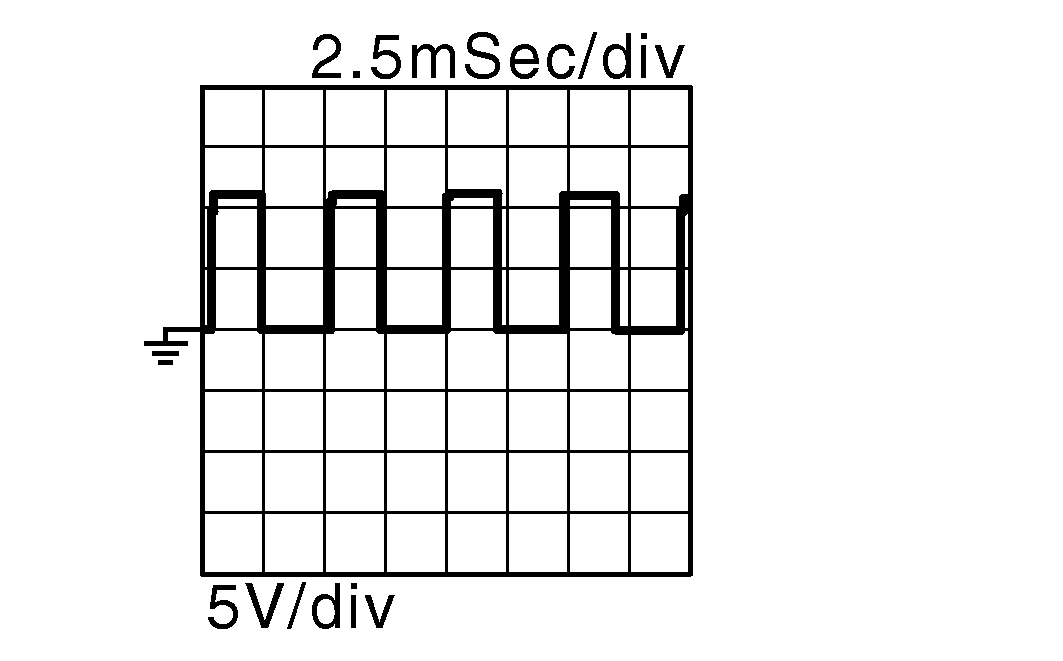

24 (BR)	Ground	Output speed sensor	Input	Selector lever: "L" position Vehicle speed: 20 km/h (12 MPH)		200 Hz Courtesy of NISSAN NORTH AMERICA, INC.
26 (LG)	Ground	Sensor power supply	Output	Ignition switch: ON		5.0 V
				Ignition switch: OFF		0 V

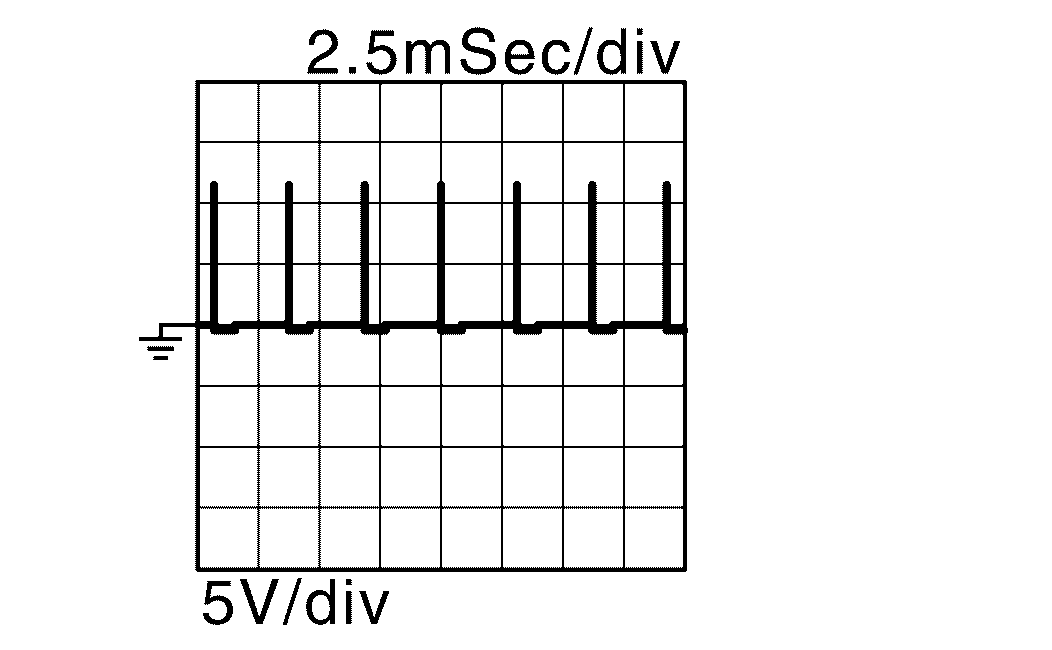

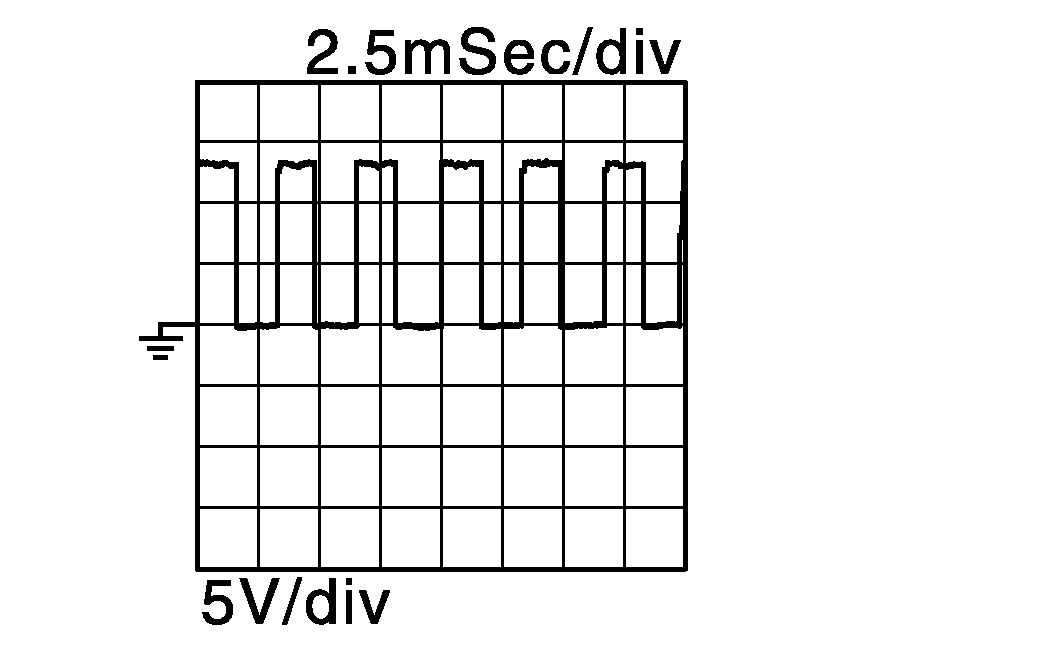

30 (BR/B)	Ground	Line pressure solenoid valve	Output	After engine warming up Selector lever: "N" position At idle		Courtesy of NISSAN NORTH AMERICA, INC.

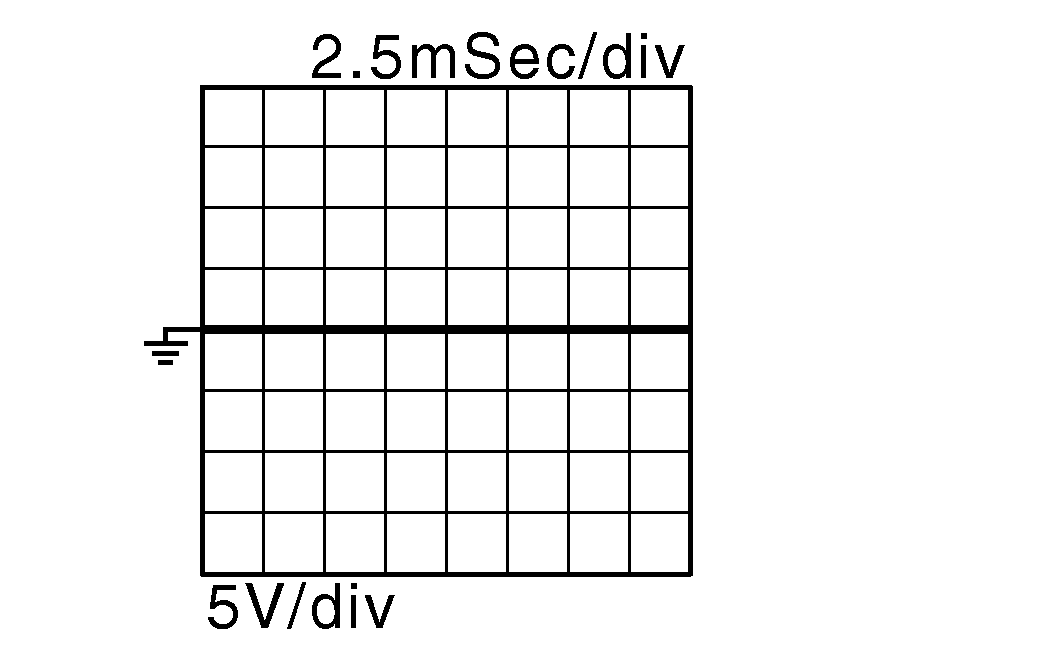

				After engine warming up Selector lever: "D" position Depress the accelerator pedal fully		Courtesy of NISSAN NORTH AMERICA, INC.
31 (L/W)	-	ROM ASSY (CLOCK)	-	-		-
33 (L/G)	-	CAN-H	Input/Output	-		-

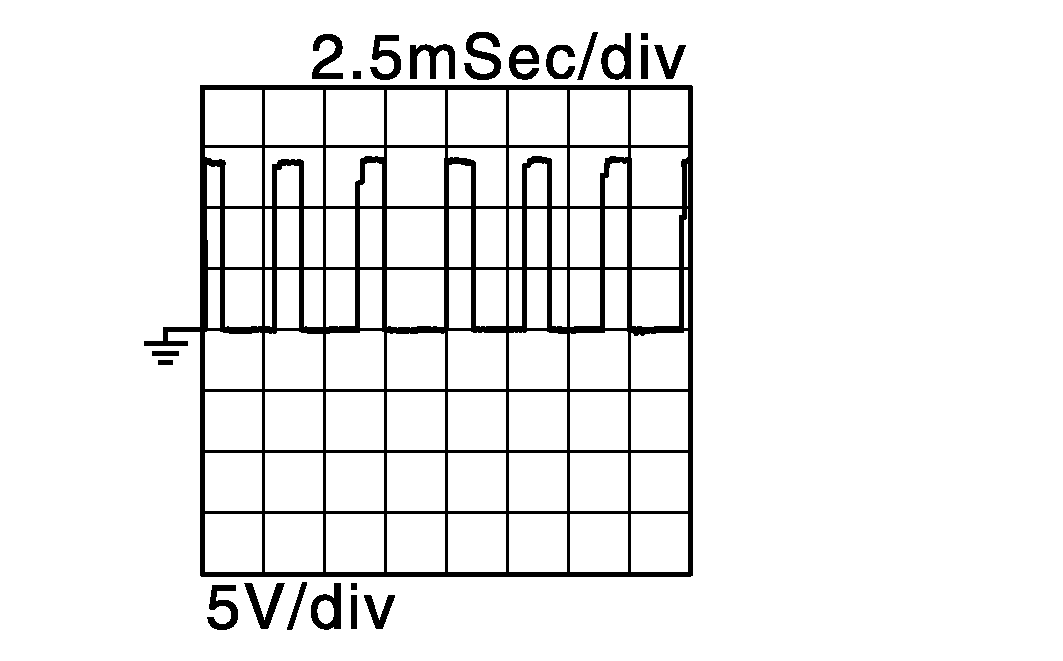

34 (W)	Ground	Secondary speed sensor	Input	Selector lever: "L" position Vehicle speed: 20 km/h (12 MPH)		700 Hz Courtesy of NISSAN NORTH AMERICA, INC.

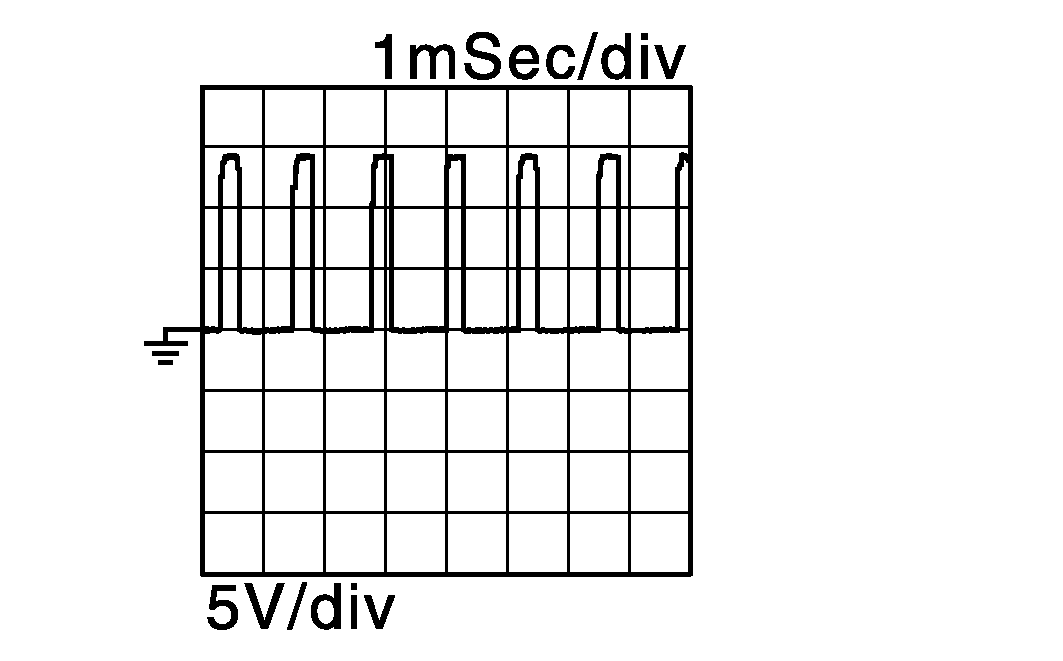

35 (LG/R)	Ground	Primary speed sensor	Input	Selector lever: "L" position Vehicle speed: 20 km/h (12 MPH)		1, 100 Hz Courtesy of NISSAN NORTH AMERICA, INC.

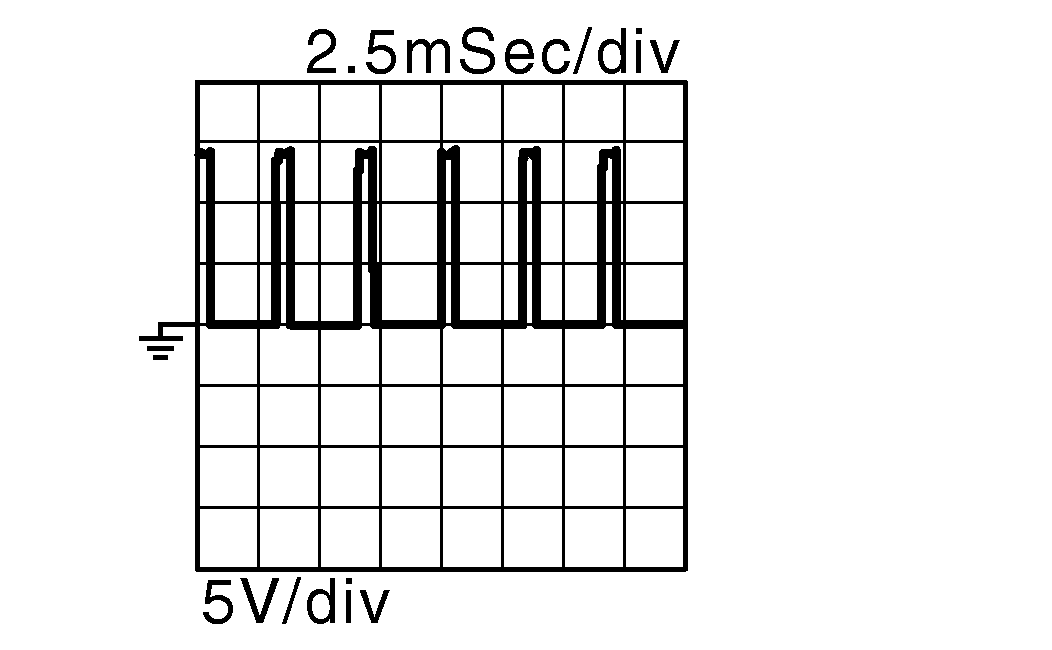

37 (BR/W)	Ground	High clutch & reverse brake solenoid valve	Output	In driving at "L" position		Courtesy of NISSAN NORTH AMERICA, INC.
				Release the accelerator pedal after the following conditions are satisfied Selector lever: "D" position Accelerator pedal position: 1/8 or less Vehicle speed: 50 km/h (31 MPH) or more		Courtesy of NISSAN NORTH AMERICA, INC.

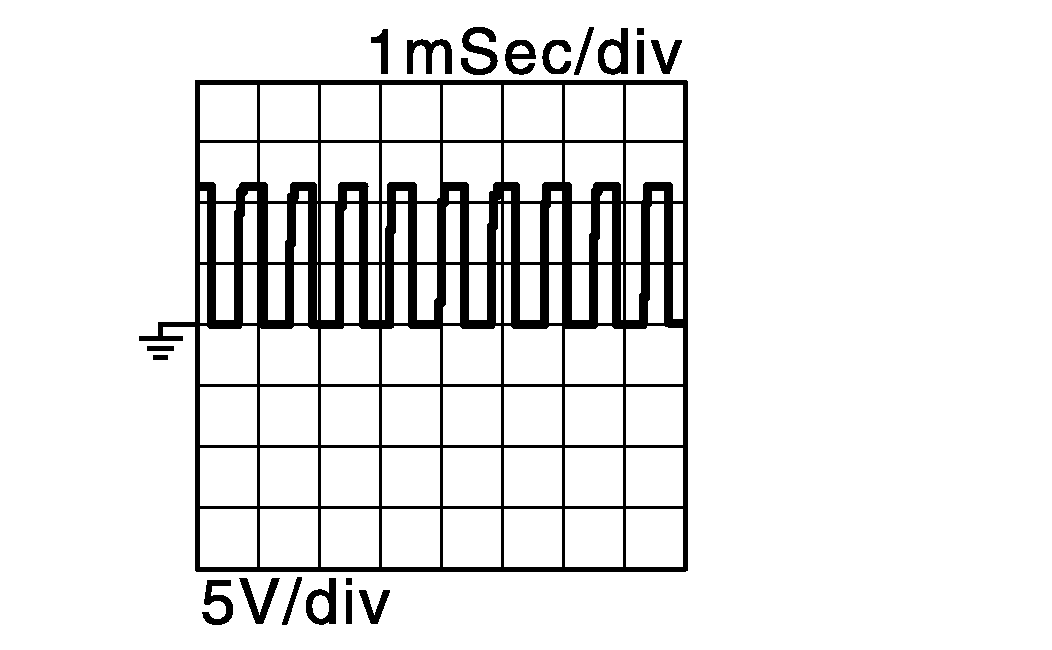

38 (G)	Ground	Torque converter clutch solenoid valve	Output	Selector lever: "D" position Accelerator pedal position: 1/8 or less Vehicle speed: 20 km/h (12 MPH) or more		Courtesy of NISSAN NORTH AMERICA, INC.
				Engine started Vehicle is stopped		Courtesy of NISSAN NORTH AMERICA, INC.

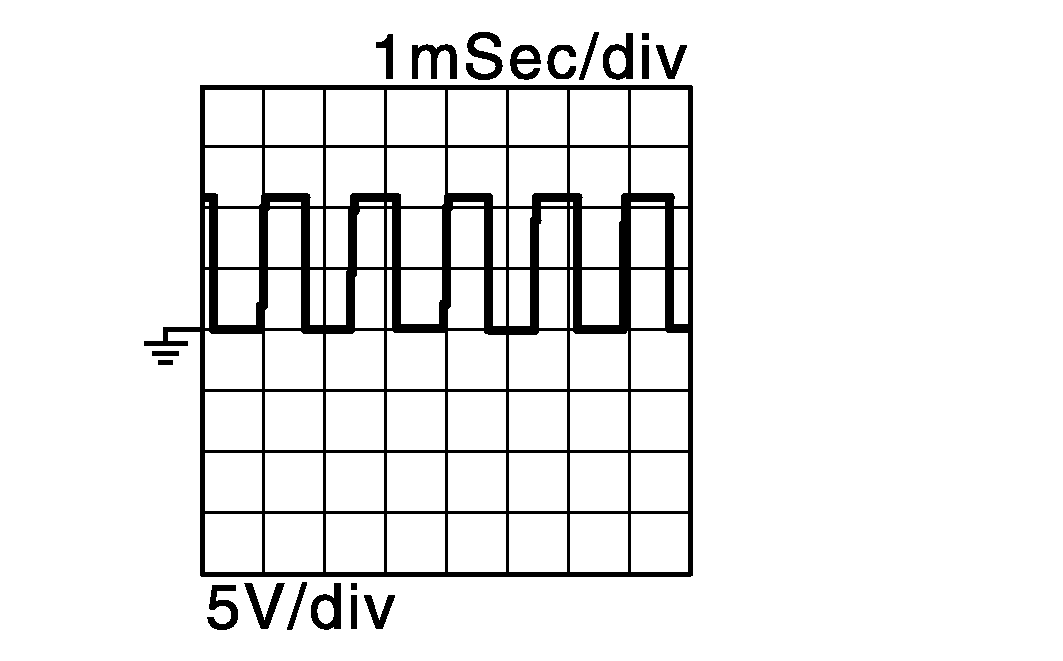

39 (G/B)	Ground	Low brake solenoid valve	Output	Selector lever: "L" position Vehicle speed: 20 km/h (12 MPH)		Courtesy of NISSAN NORTH AMERICA, INC.
				Release the accelerator pedal after the following conditions are satisfied Selector lever: "D" position Accelerator pedal position: 1/8 or less Vehicle speed: 50 km/h (31 MPH) or more		Courtesy of NISSAN NORTH AMERICA, INC.
40 (Y/B)	Ground	Primary pressure solenoid valve	Output	Selector lever: "L" position Vehicle speed: 20 km/h (12 MPH)		Courtesy of NISSAN NORTH AMERICA, INC.
41 (B)	Ground	Ground	Output	Always		0 V
42 (B)	Ground	Ground	Output	Always		0 V
45 (LG)	Ground	Battery power supply (memory backup)	Input	Always		10 - 16 V
46 (LG)	Ground	Battery power supply (memory backup)	Input	Always		10 - 16 V
47 (R)	Ground	Ignition power supply	Input	Ignition switch: ON		10 - 16 V
				Ignition switch: OFF		0 V
48 (R/W)	Ground	Ignition power supply	Input	Ignition switch: ON		10 - 16 V
				Ignition switch: OFF		0 V

*: This harness is not used.
