Component Inspection (Overdrive Control Switch)

CHECK OVERDRIVE CONTROL SWITCH

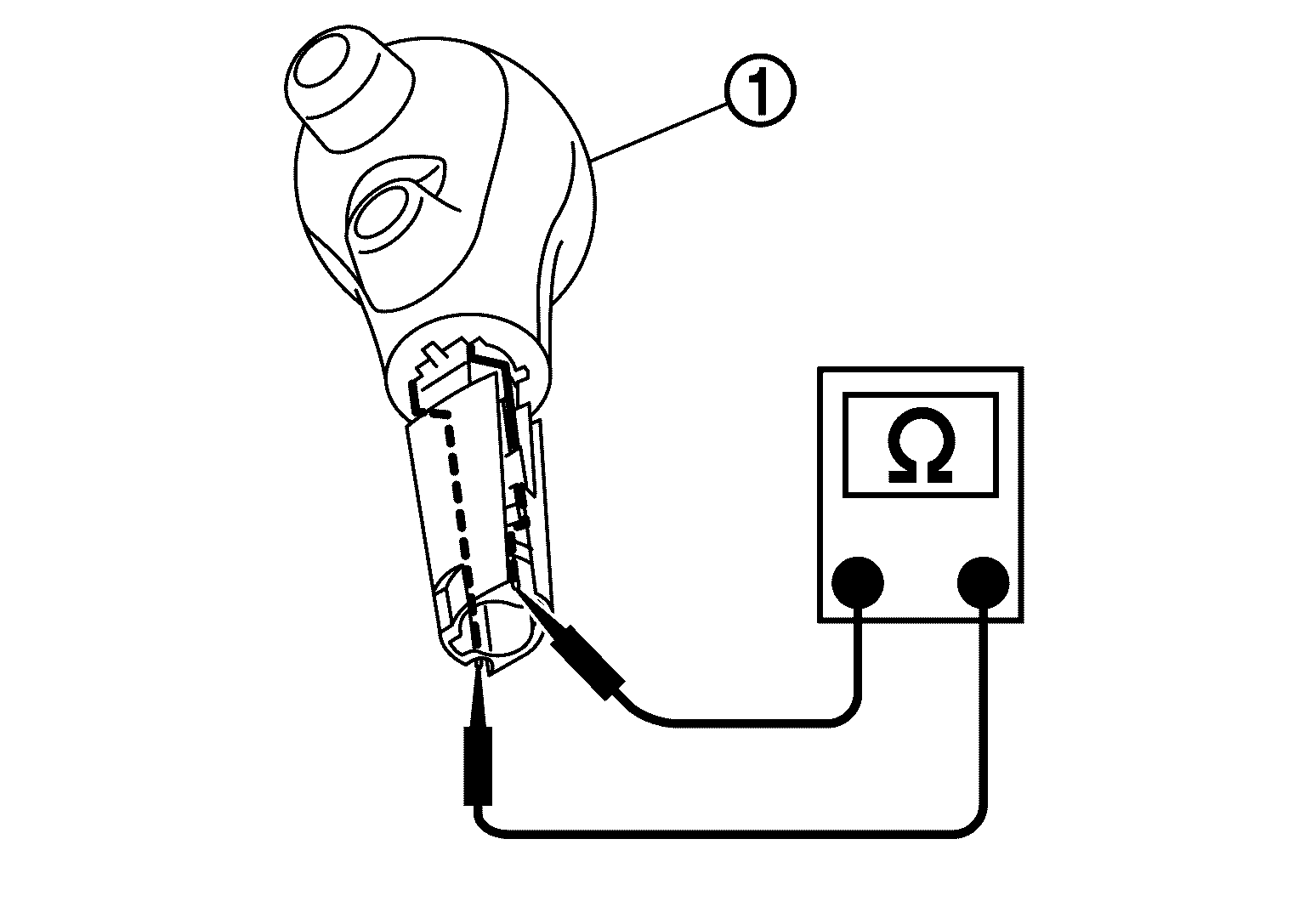

Check continuity between wires of selector lever knob (1)

Courtesy of NISSAN NORTH AMERICA, INC.

Condition	Continuity
Overdrive control switch is depressed	Existed
Overdrive control switch is depressed	Not existed

Is the inspection result normal?

YES

INSPECTION END

Replace selector lever knob. Refer to Removal and Installation .
