Exploded View
Exploded View

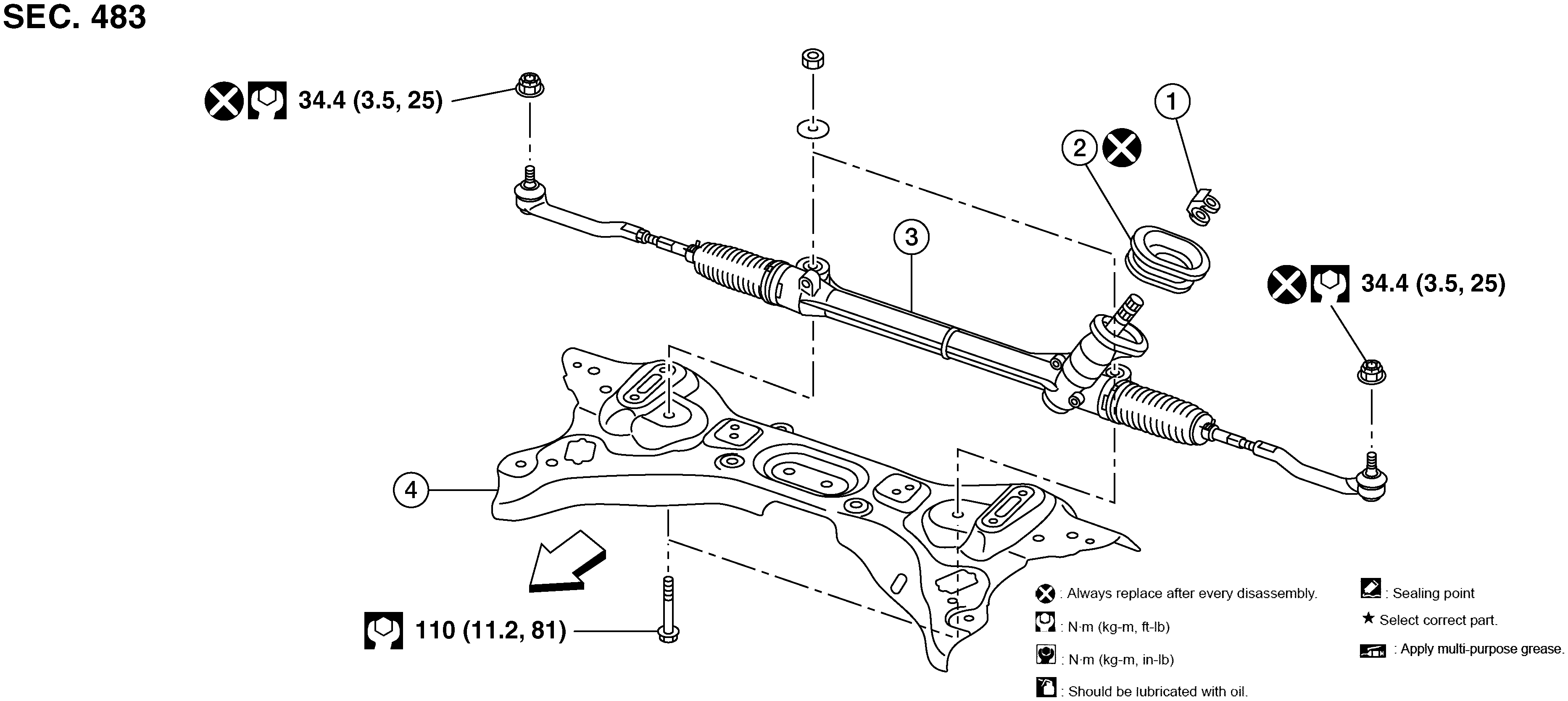

Fig 1: Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Guide
2.
Cowl seal
3.
Steering gear
4.
Front suspension member
Front
Courtesy of NISSAN NORTH AMERICA, INC.
