EPS Motor, Torque Sensor, Reduction Gear: Notes

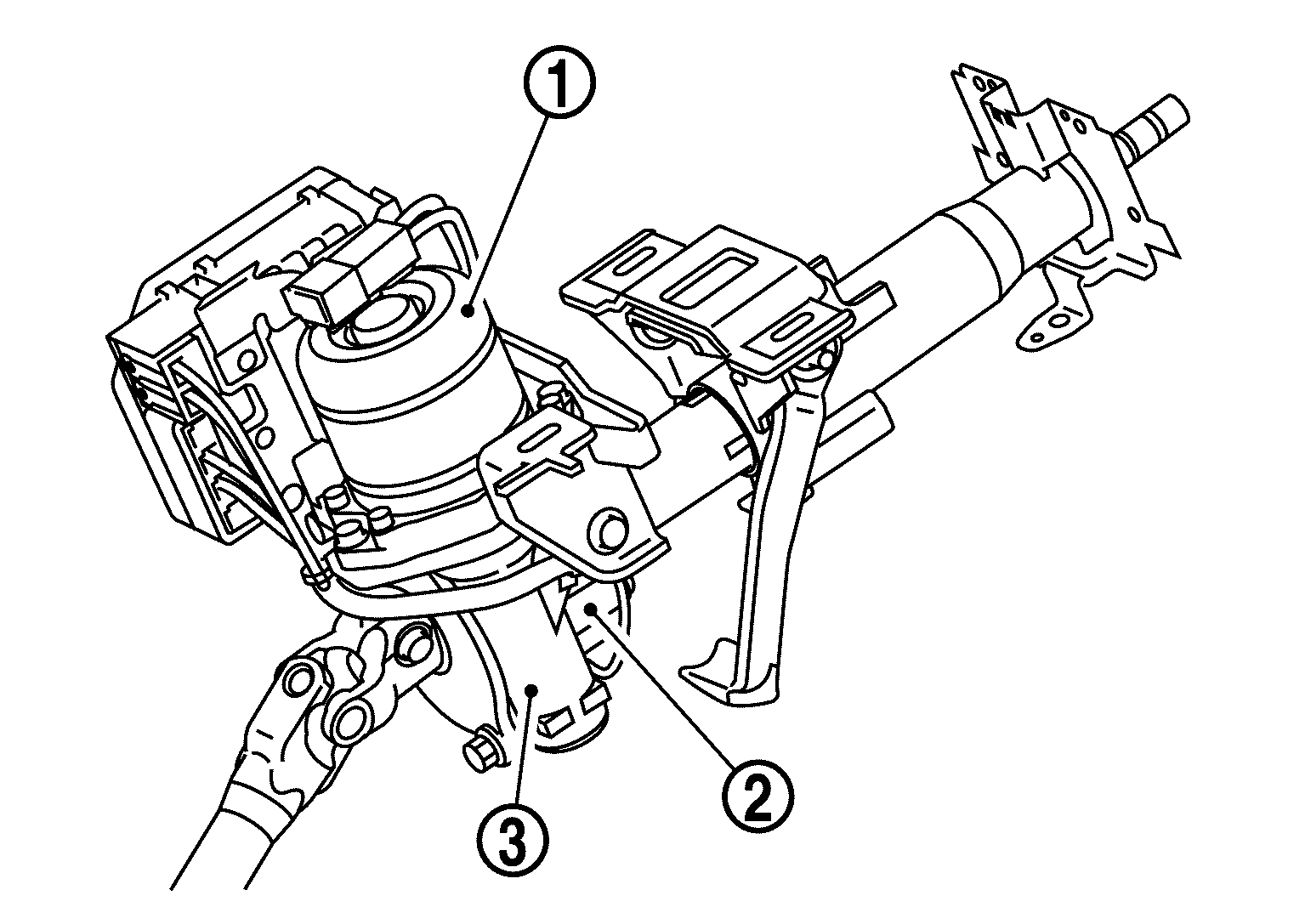

EPS motor (1), torque sensor (2) and reduction gear (3) are installed to steering column assembly.

GNSJSGIA0853Z-853

Courtesy of NISSAN NORTH AMERICA, INC.
