No-Load Test

  1. Remove starter motor from vehicle. Refer to Removal and Installation .

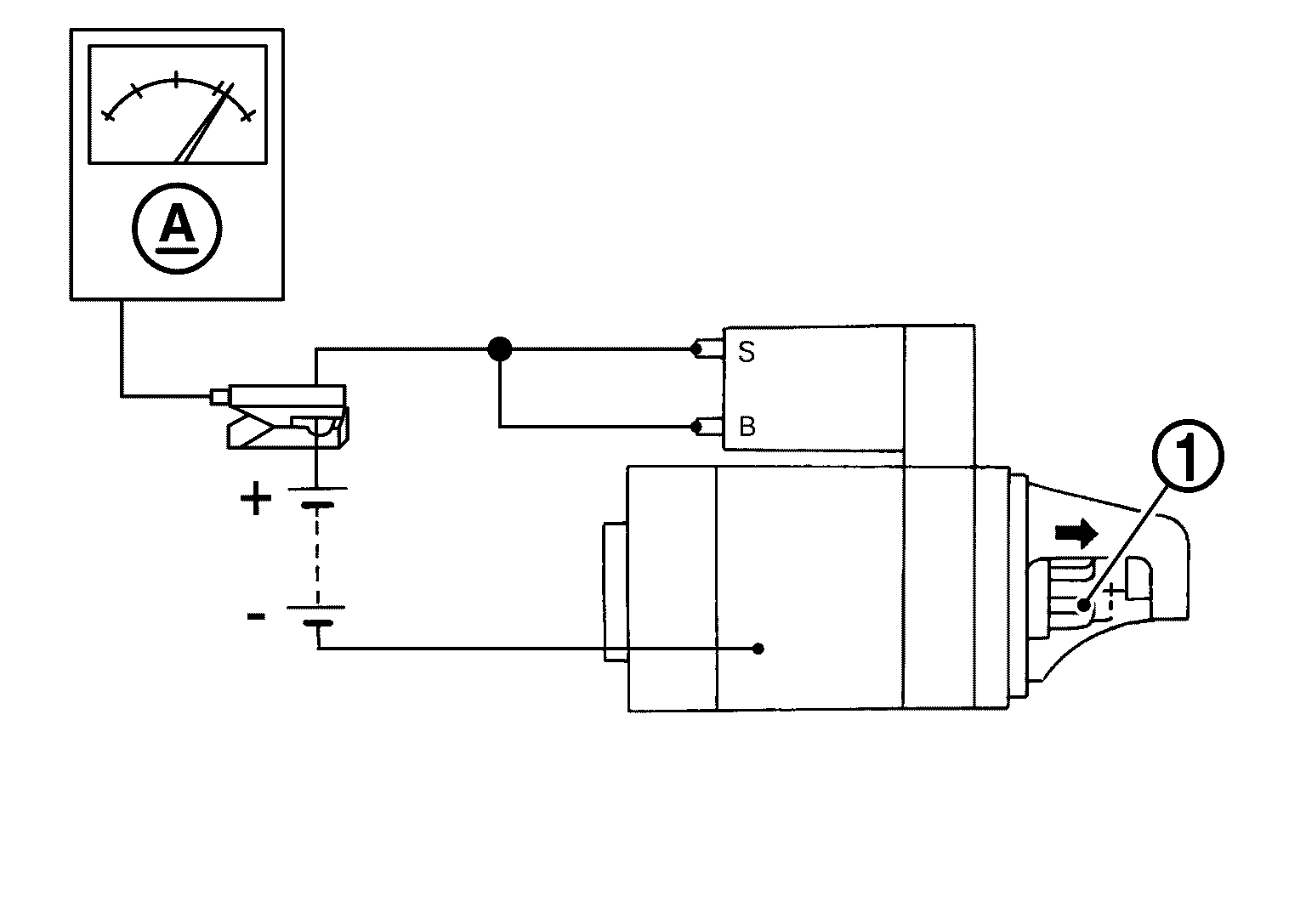

  2. Connect 12V battery and ammeter to starter motor as shown below. Check no load current with pinion gear (1) driven out and starter motor operating.
    GNSJMBIA4726Z-726Courtesy of NISSAN NORTH AMERICA, INC.

    No-load current

    : Refer to Starter Motor .
    • Replace starter motor if the measurement value is not within specifications.
