Exploded View

M/T model

Fig 1: Water Outlet Replacement Components With Torque Specifications - M/T Model

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine coolant temperature sensor	2.	Clamp	3.	Gasket
4.	Clamp	5.	Bracket	6.	Clamp
7.	Water outlet	8.	Clamp	9.	Clamp
A.	From electric throttle control actuator. Refer to Exploded View .	B.	To radiator. Refer to Exploded View .	C.	From heater core. Refer to Exploded View .
D.	To heater core. Refer to Exploded View .	E.	To electric throttle control actuator. Refer to Exploded View .		Engine front

CVT model

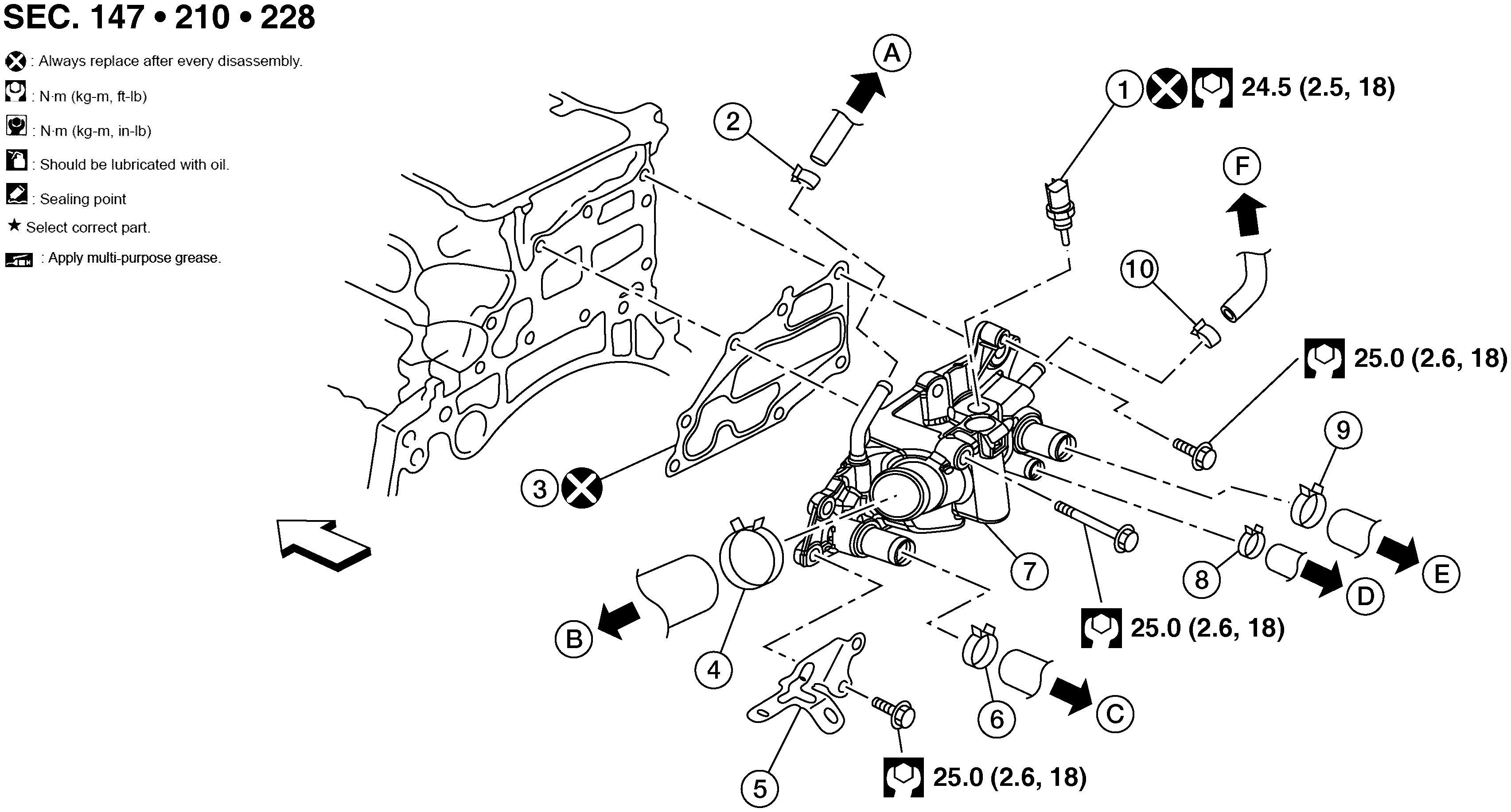

Fig 2: Water Outlet Replacement Components With Torque Specifications - CVT Model

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine coolant temperature sensor	2.	Clamp	3.	Gasket
4.	Clamp	5.	Bracket	6.	Clamp
7.	Water outlet	8.	Clamp	9.	Clamp
10.	Clamp	A.	From electric throttle control actuator. Refer to Exploded View .	B.	To radiator. Refer to Exploded View .
C.	To heater core / CVT oil warmer. Refer to Exploded View .	D.	To CVT oil warmer. Refer to Exploded View .	E.	To heater core. Refer to Exploded View .
F.	To electric throttle control actuator. Refer to Exploded View .		Engine front
