Removal and Installation: Removal

  1. Remove the spiral cable. Refer to Removal and Installation .

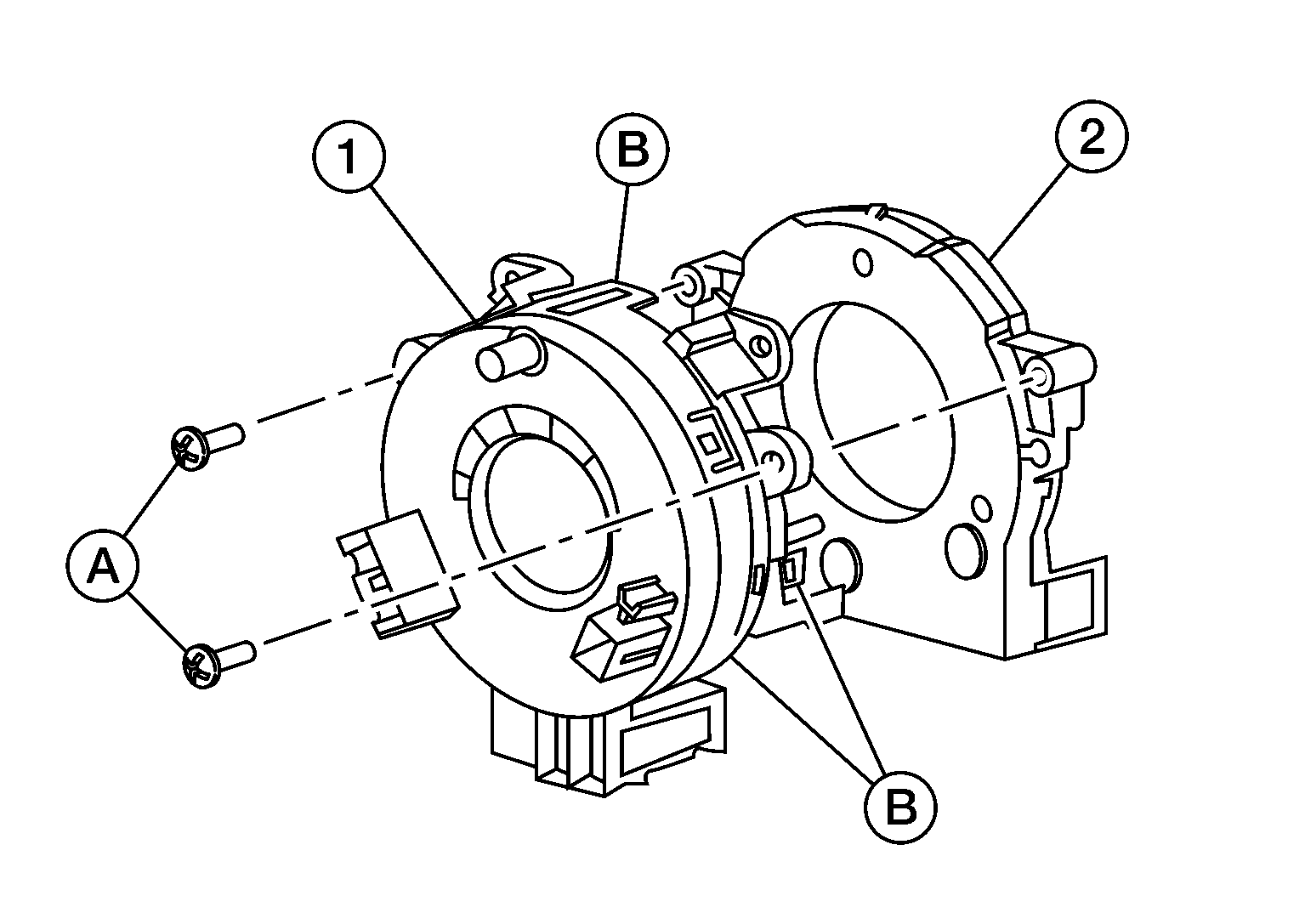

  2. Remove the screws (A), then release the pawls (B) and remove the steering angle sensor (2) from the spiral cable (1).
    GNSALHIA0271Z-271Courtesy of NISSAN NORTH AMERICA, INC.
