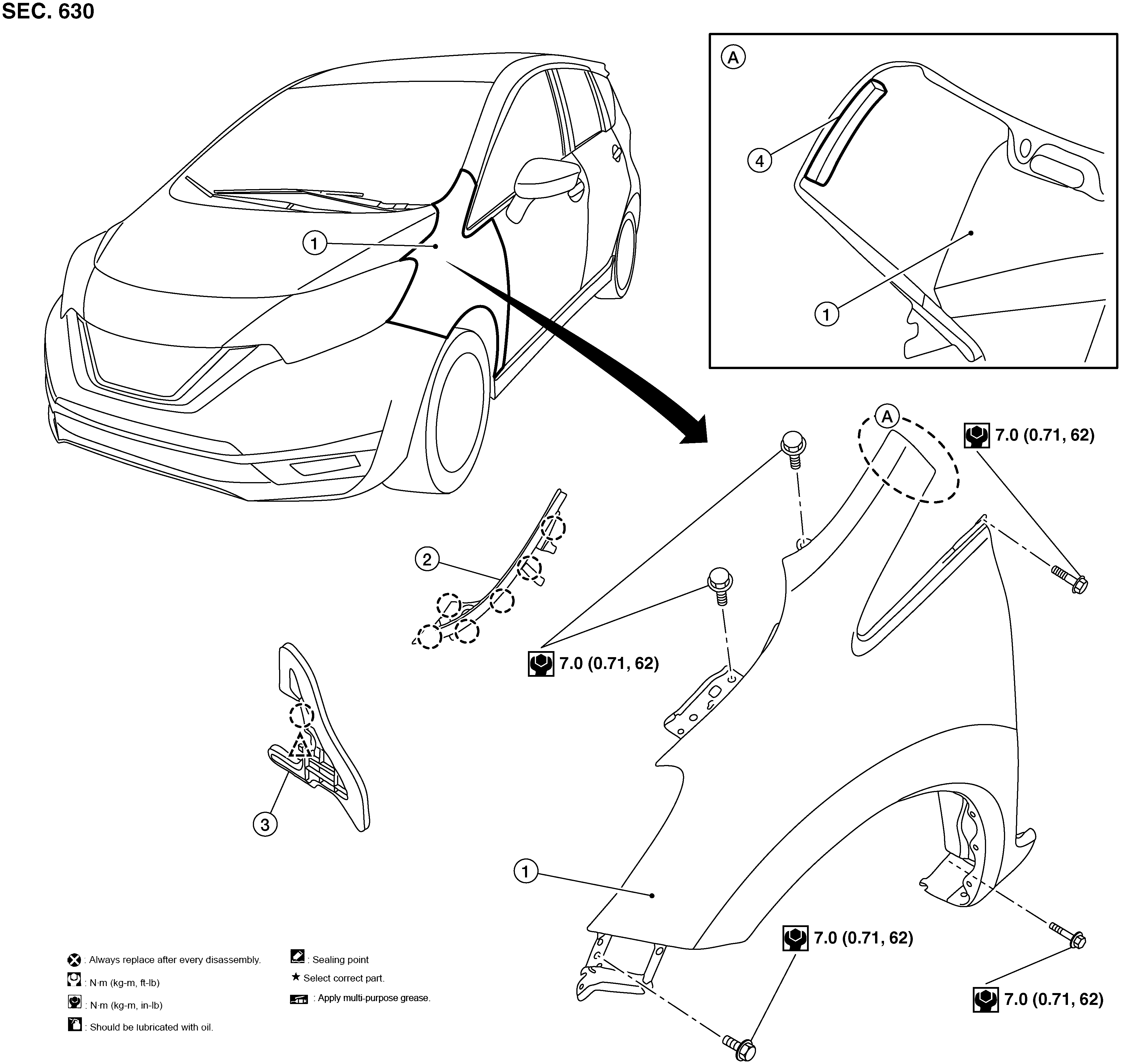

Exploded View

GNSAWKIA4432Z-432Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front fender

2.

Cowl top side cover

3.

Front fender insulator

4.

Front fender stiffener

SYMBOL

Pawl

SYMBOL

Clip
