FUEL LEVEL SENSOR UNIT : Disassembly & Assembly
>>
Notes
FUEL LEVEL SENSOR UNIT : Disassembly & Assembly: Notes

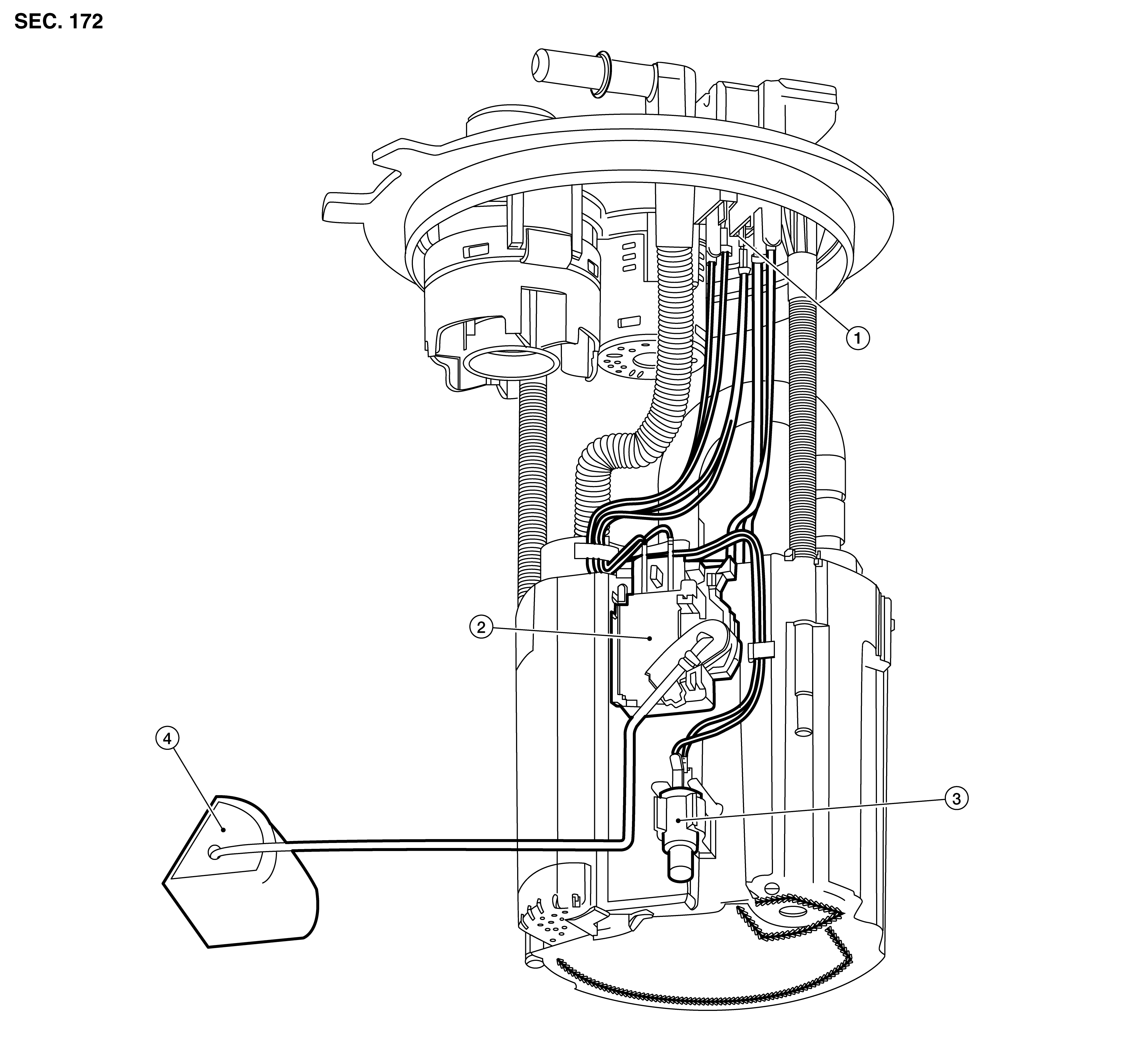

Courtesy of NISSAN NORTH AMERICA, INC.
1.
Harness connectors
2.
Level sending unit module
3.
Fuel temperature sensor
4.
Float arm assembly
