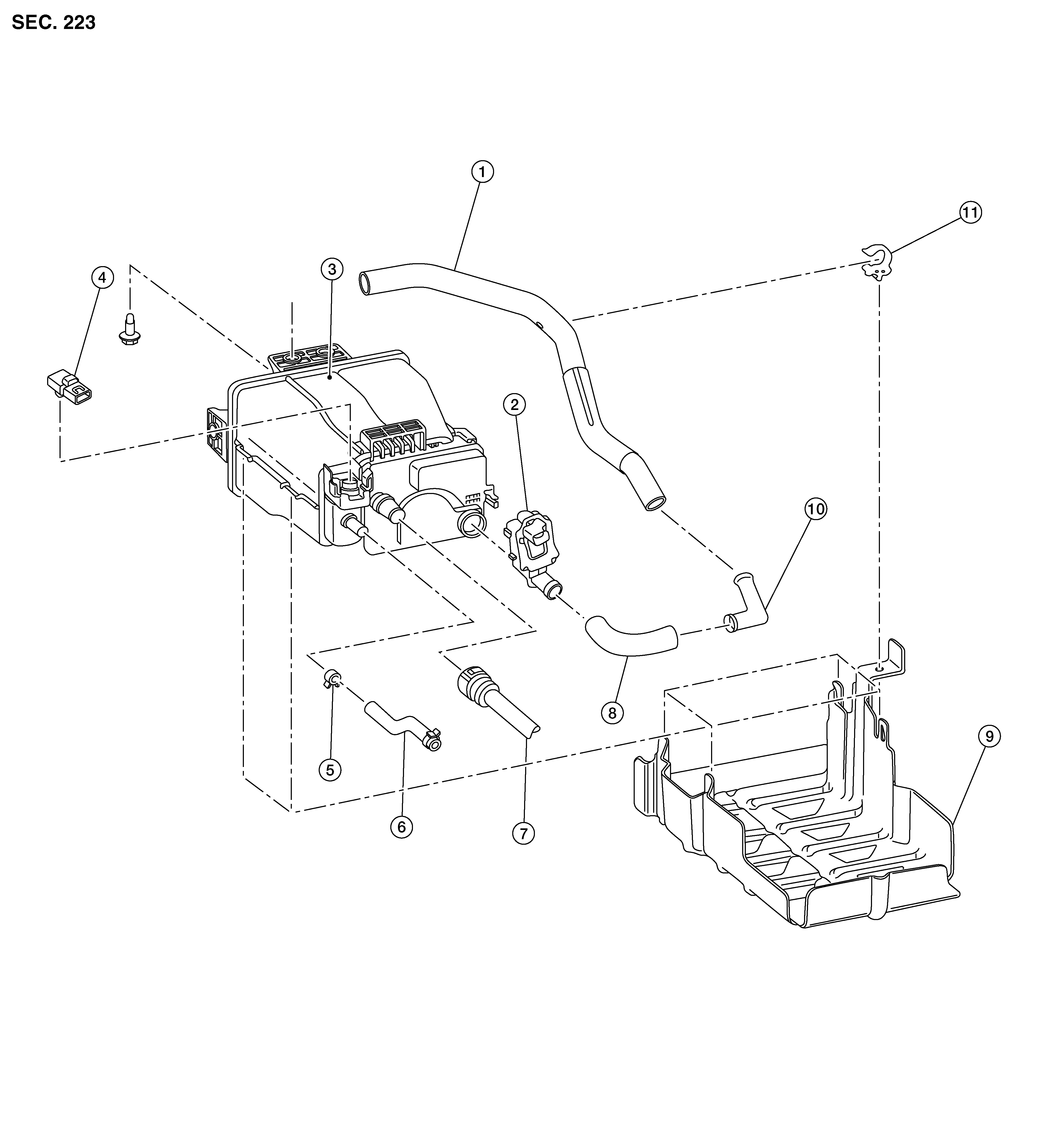

Exploded View
|
1. |
EVAP canister vent control valve hose |
2. |
EVAP canister vent control valve |
3. |
EVAP canister |
|
4. |
EVAP canister control pressure sensor |
5. |
Hose clamp |
6. |
EVAP canister purge hose |
|
7. |
EVAP canister vent line |
8. |
EVAP canister vent control valve hose |
9. |
Hose protector |
|
10. |
EVAP canister vent control valve hose connector |
11. |
Clip |
