Removal and Installation: Removal

CAUTION: Do not remove the relays from the IPDM E/R. Except for the fuses, the IPDM E/R must be replaced as an assembly.
NOTE: Cummins 5.0L Models shown. VK56VD Models similar.
  1. Disconnect the battery or batteries negative terminal(s). Refer to Battery Disconnect .

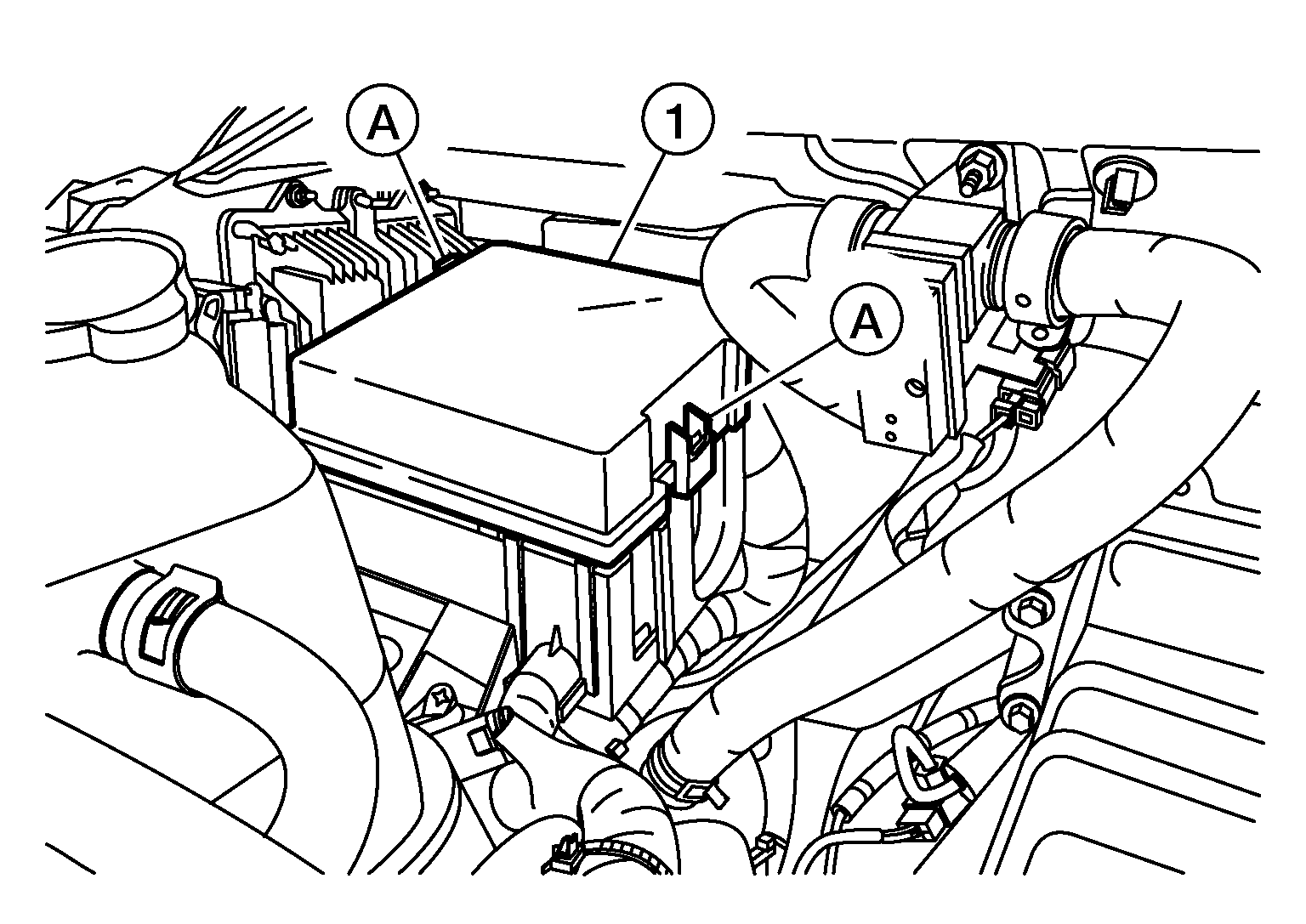

  2. Release the clips (A) and remove IPDM E/R upper cover (1).
    GNSALKIA4224Z-224Courtesy of NISSAN NORTH AMERICA, INC.

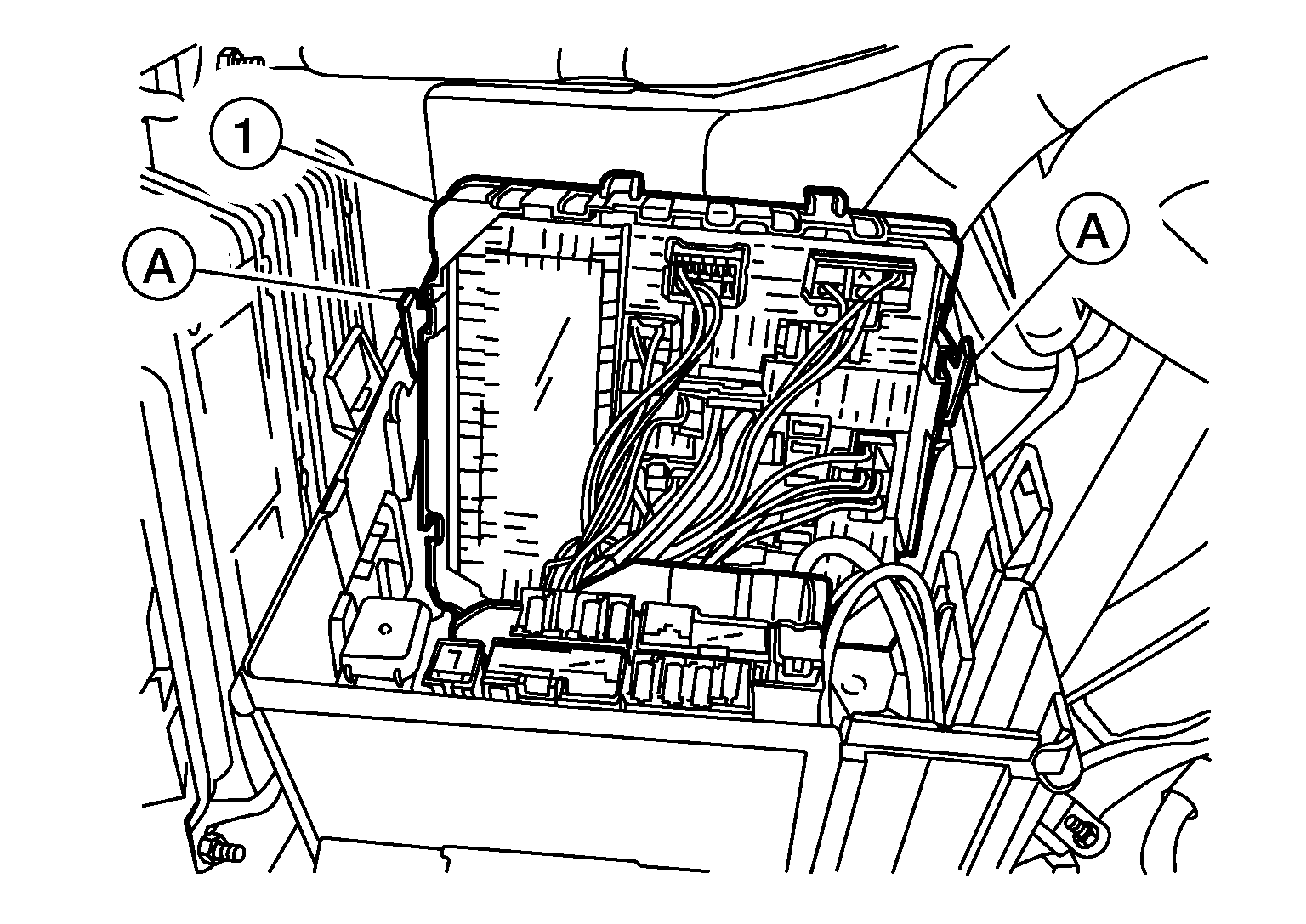

  3. Release the clips (A) and pull IPDM E/R (1) from case.
    GNSALKIA4225Z-225Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connectors and remove IPDM E/R from vehicle.
