Exploded View

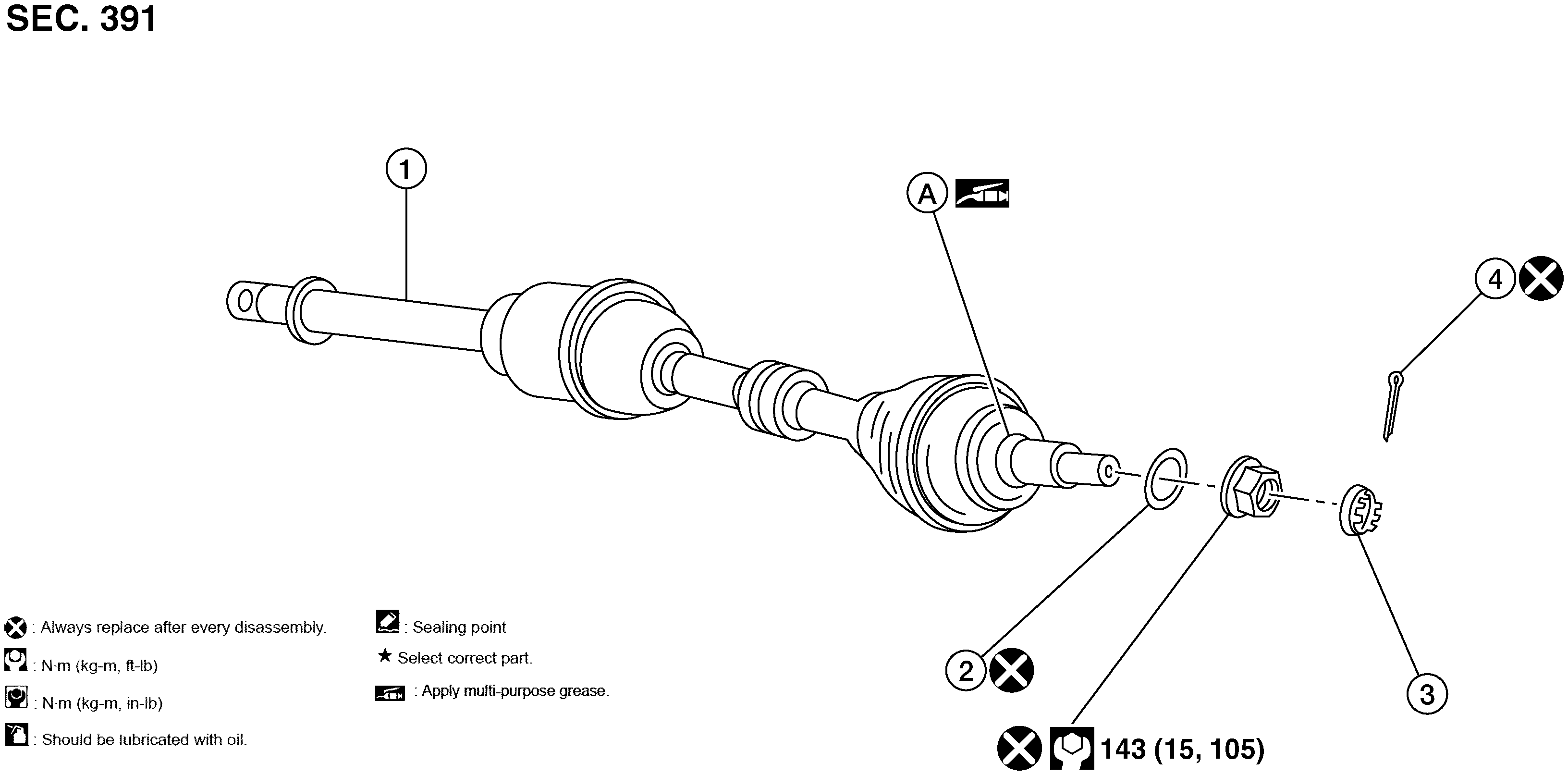

Fig 1: Front Drive Shaft LH Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front drive shaft	2.	Washer	3.	Nut retainer (MR16DDT models)
4.	Cotter pin	A.	Molykote M77		Front

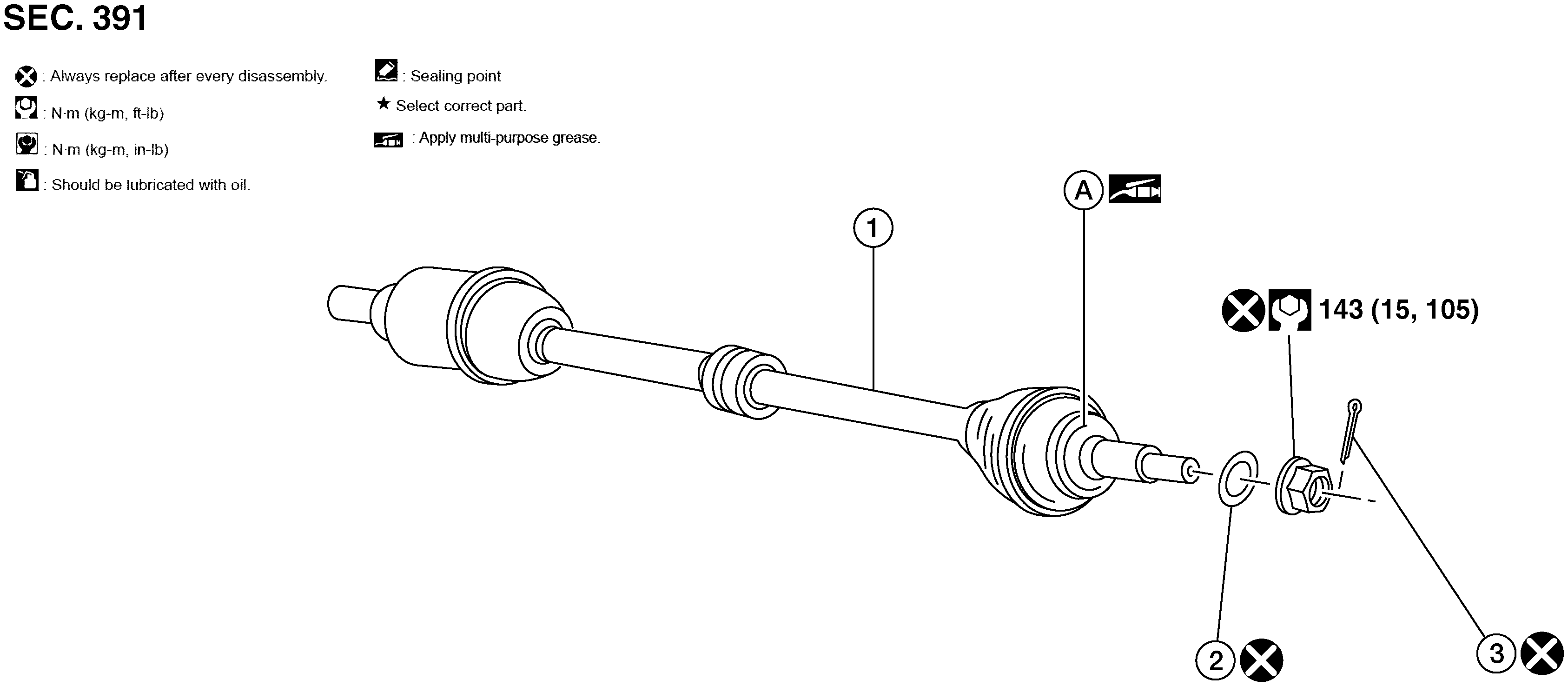

Fig 1: Front Drive Shaft CVT RH Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front drive shaft	2.	Washer	3.	Cotter pin
A.	Molykote M77

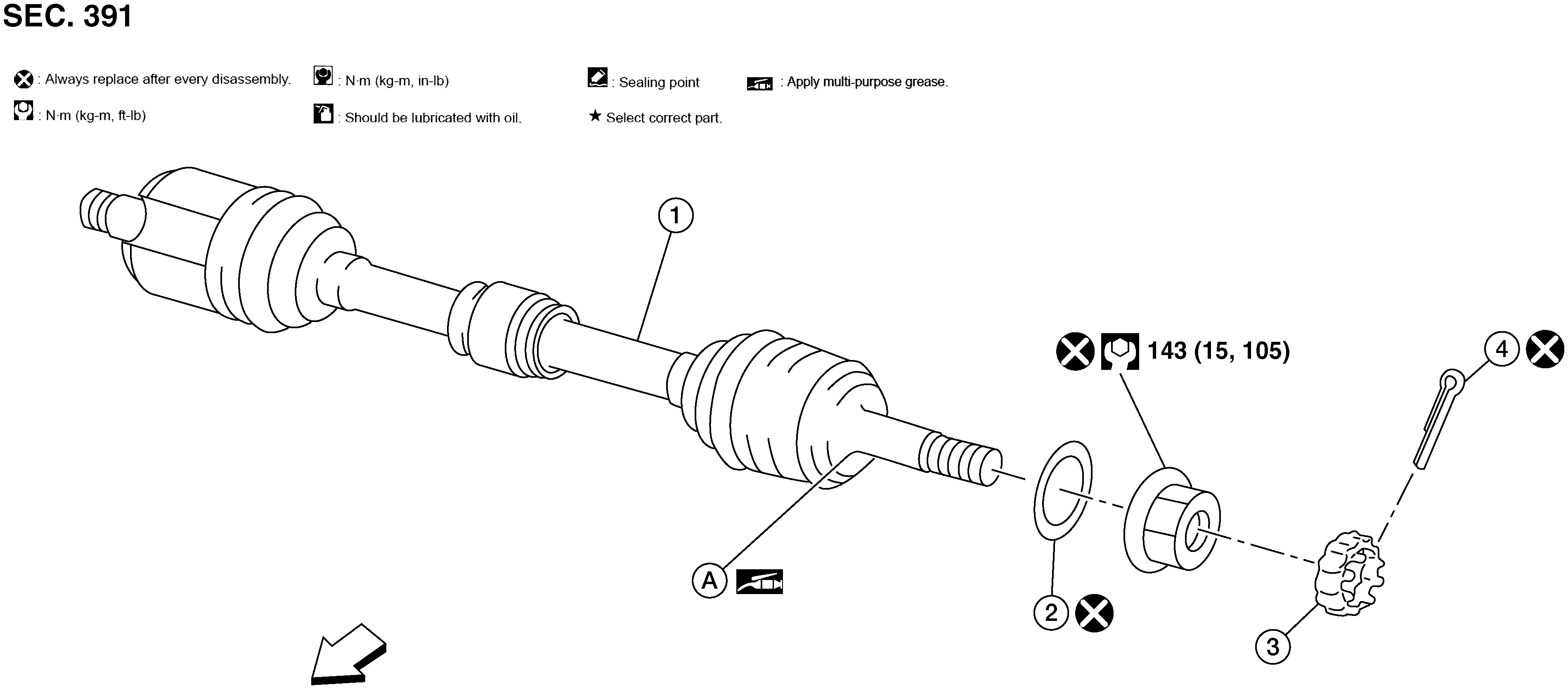

Fig 1: Front Drift Shaft M/T RH Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front drive shaft	2.	Washer	3.	Nut retainer (MR16DDT models)
4.	Cotter pin	A.	Molykote M77
