Low Brake Solenoid Valve

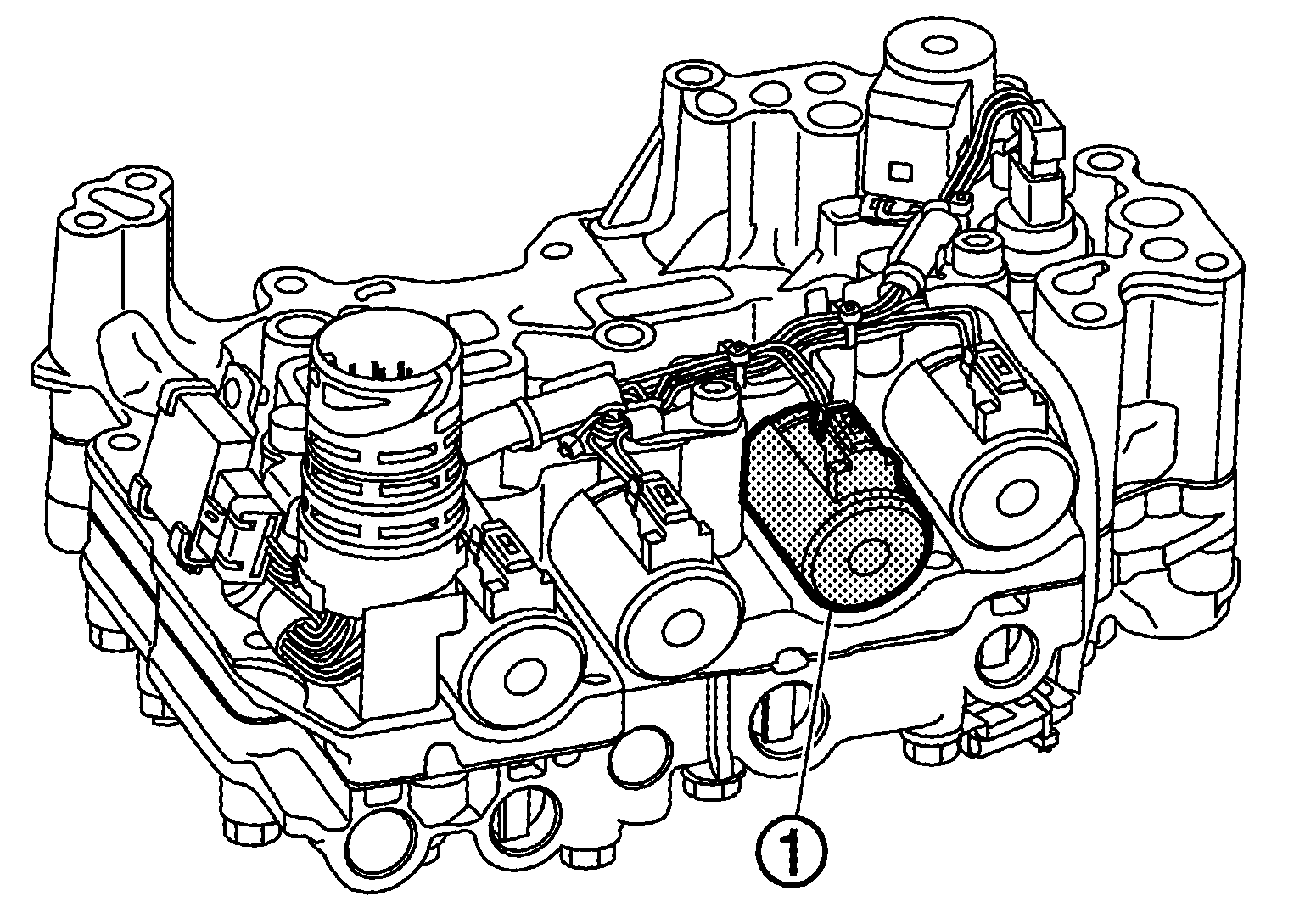

The low brake solenoid valve is installed to control valve.

Courtesy of NISSAN NORTH AMERICA, INC.
The low brake solenoid valve adjusts the low brake engaging pressure.
The low brake solenoid valve uses the linear solenoid valve [N/L (normal low) type].

Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:

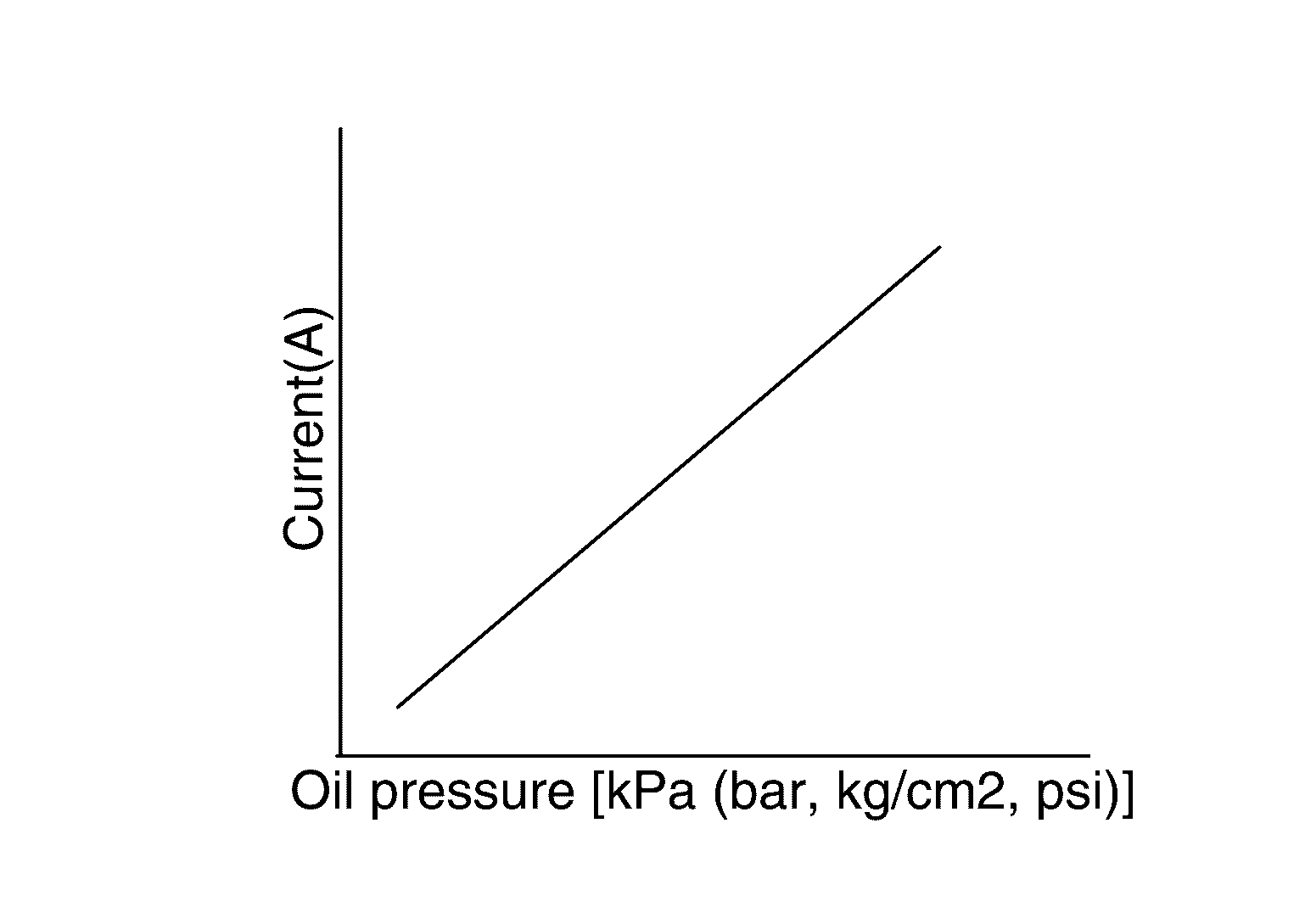

- The principle of the linear solenoid valve utilizes the fact that the force pressing on the valve spool installed inside the coil increases nearly in proportion to the current. This allows it to produce a fluid pressure that is proportional to this pressing force.
- The N/L (normal low) type does not produce hydraulic control when the coil is not energized.
