Exploded View

Except Nismo

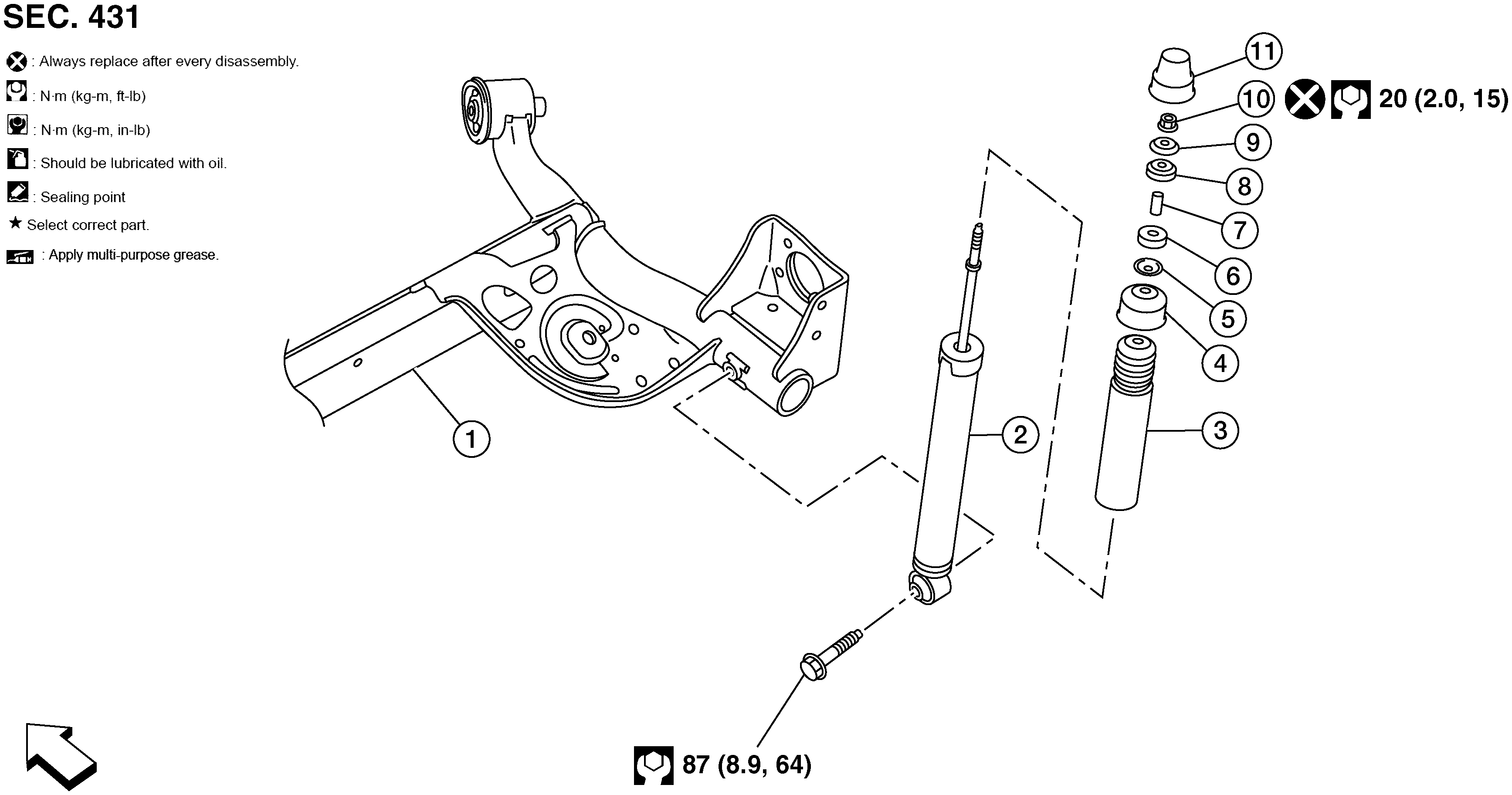

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications (Except for NISMO)

GNSAWEIA0498Z-498

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear suspension beam	2.	Shock absorber	3.	Bound bumper
4.	Bound bumper cover	5.	Washer	6.	Bushing
7.	Distance tube	8.	Bushing	9.	Washer
10.	Piston rod lock nut	11.	Cap		Front

For Nismo

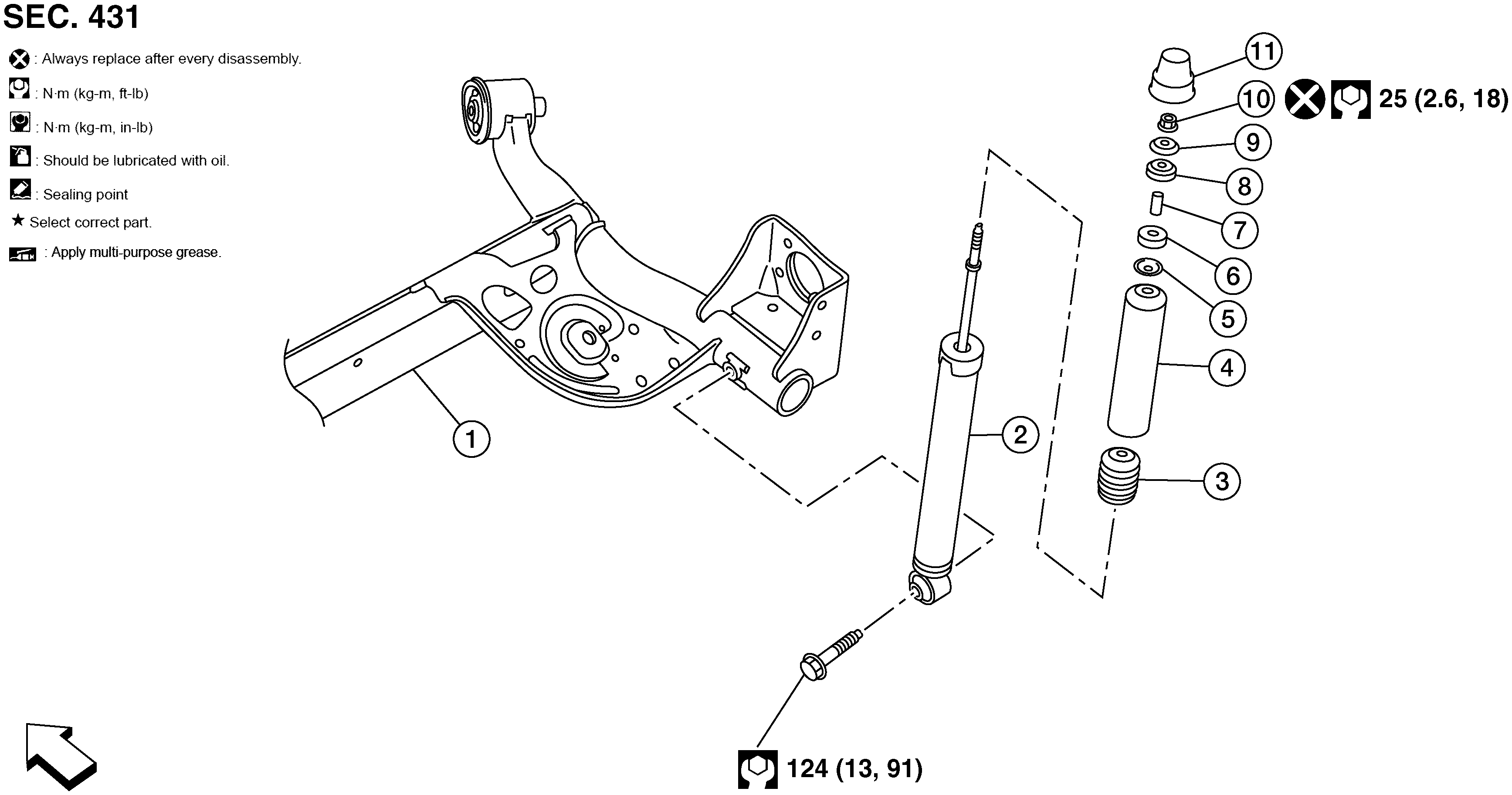

Fig 2: Rear Shock Absorber Replacement Components With Torque Specifications (For NISMO)

GNSAWEIA0515Z-515

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear suspension beam	2.	Shock absorber	3.	Bound bumper
4.	Bound bumper cover	5.	Washer	6.	Bushing
7.	Distance tube	8.	Bushing	9.	Washer
10.	Piston rod lock nut	11.	Cap		Front
