Exploded View

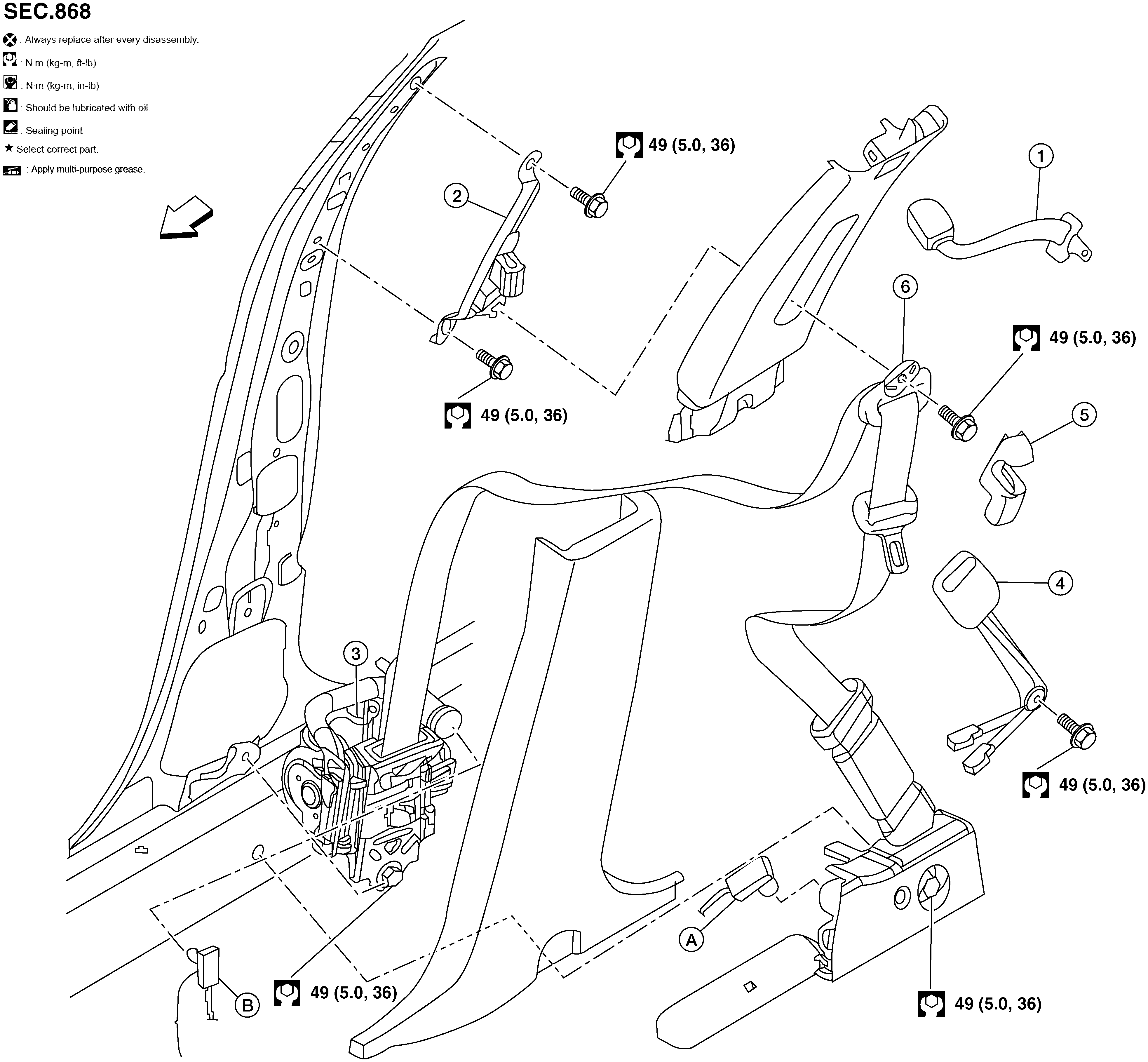

Fig 1: Front Seat Belt Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt extender	2.	Seat belt height adjuster	3.	Seat belt retractor
4.	Seat belt buckle	5.	Seat belt height adjuster cover	6.	D-ring anchor
A.	Lap belt pre-tensioner harness connector	B.	Shoulder belt pre-tensioner harness connector		Front

NOTE: RH side shown; LH side similar.
