Engine Cooling System
WARNING: This page is about a different variant/trim than selected.
- The radiator adopts a side flow aluminum radiator core.
- A drive belt is adopted for water pump operation.
- A multi-way control valve is adopted to control the water temperature.
- A shallow bottom is adopted for the cylinder block water jacket for optimizing cooling performance.
- An electric cooling fan is adopted. The cooling fan is controlled by signals from the ECM (engine control module).
|

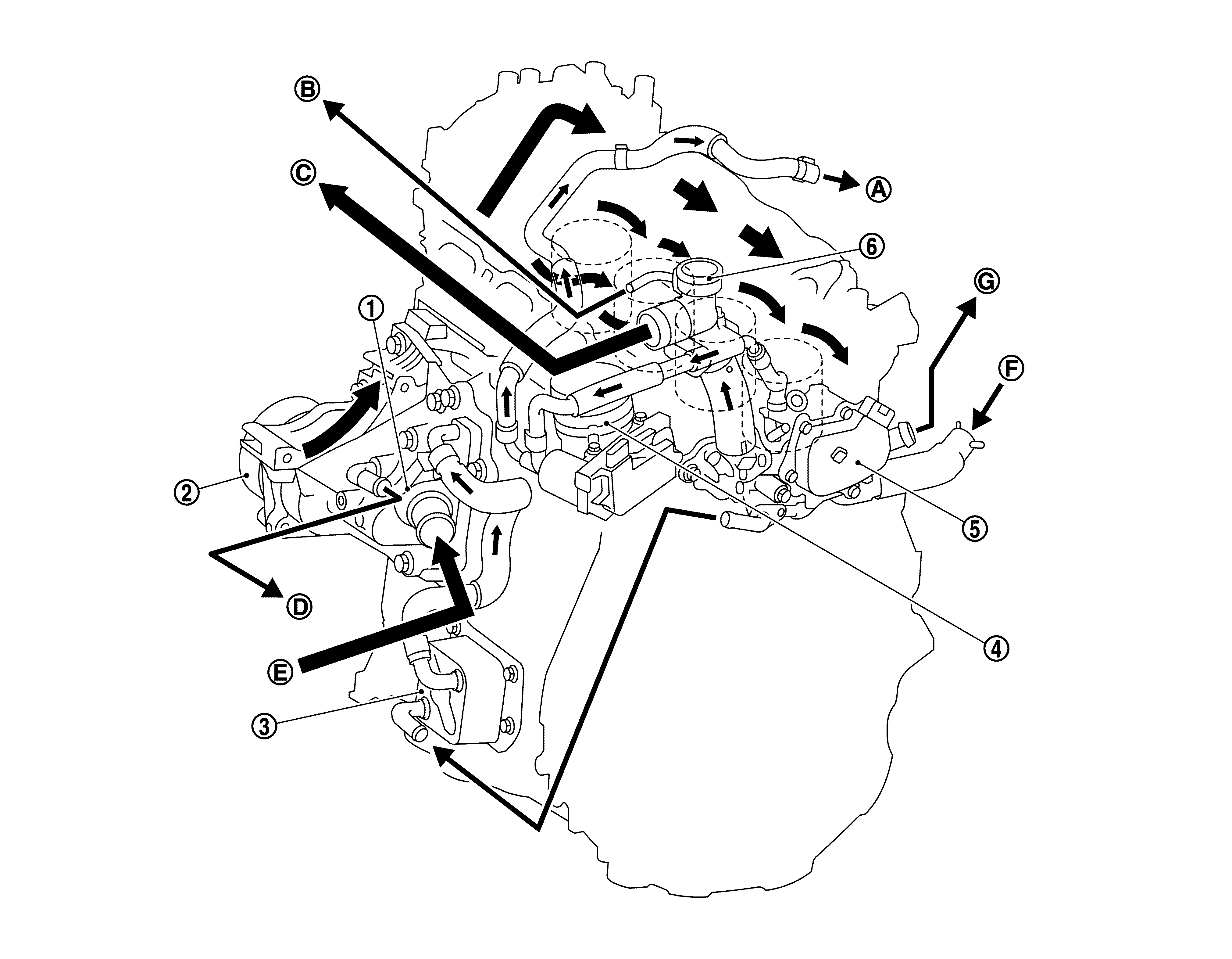

1. |
Water pump housing |
2. |
Water pump |
3. |
Oil cooler |
|
4. |
Electric throttle control actuator |
5. |
Multi-way control valve |
6. |
Water outlet adapter |
|
A. |
To turbocharger |
B. |
To reservoir tank |
C. |
To radiator |
|
D. |
To CVT fluid warmer (CVT models) Not applicable (M/T models) |
E. |
From radiator |
F. |
From EGR cooler |
|
G. |
To heater core |
