Engine Cooling System Schematic
WARNING: This page is about a different variant/trim than selected.

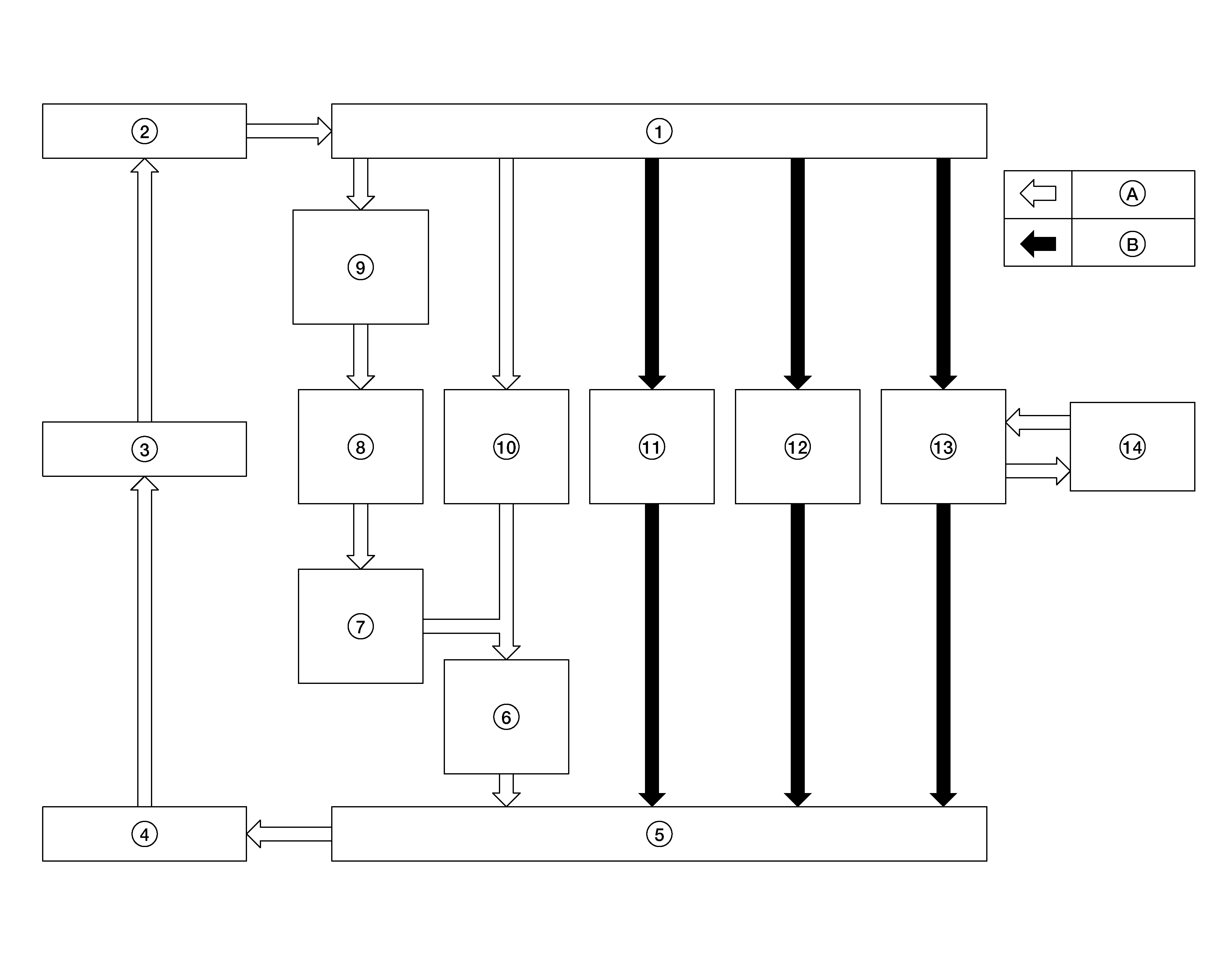

CVT Models
|
1. |
Multi-way control valve |
2. |
Cylinder head |
3. |
Cylinder block |
|
4. |
Water pump |
5. |
Water pump housing |
6. |
EGR cooler |
|
7. |
EGR volume control valve |
8. |
Turbocharger |
9. |
Electric throttle control actuator |
|
10. |
Heater core |
11. |
Oil cooler |
12. |
CVT fluid warmer |
|
13. |
Radiator |
14. |
Reservoir tank |
A. |
Normal |
|
B. |
High temperature |

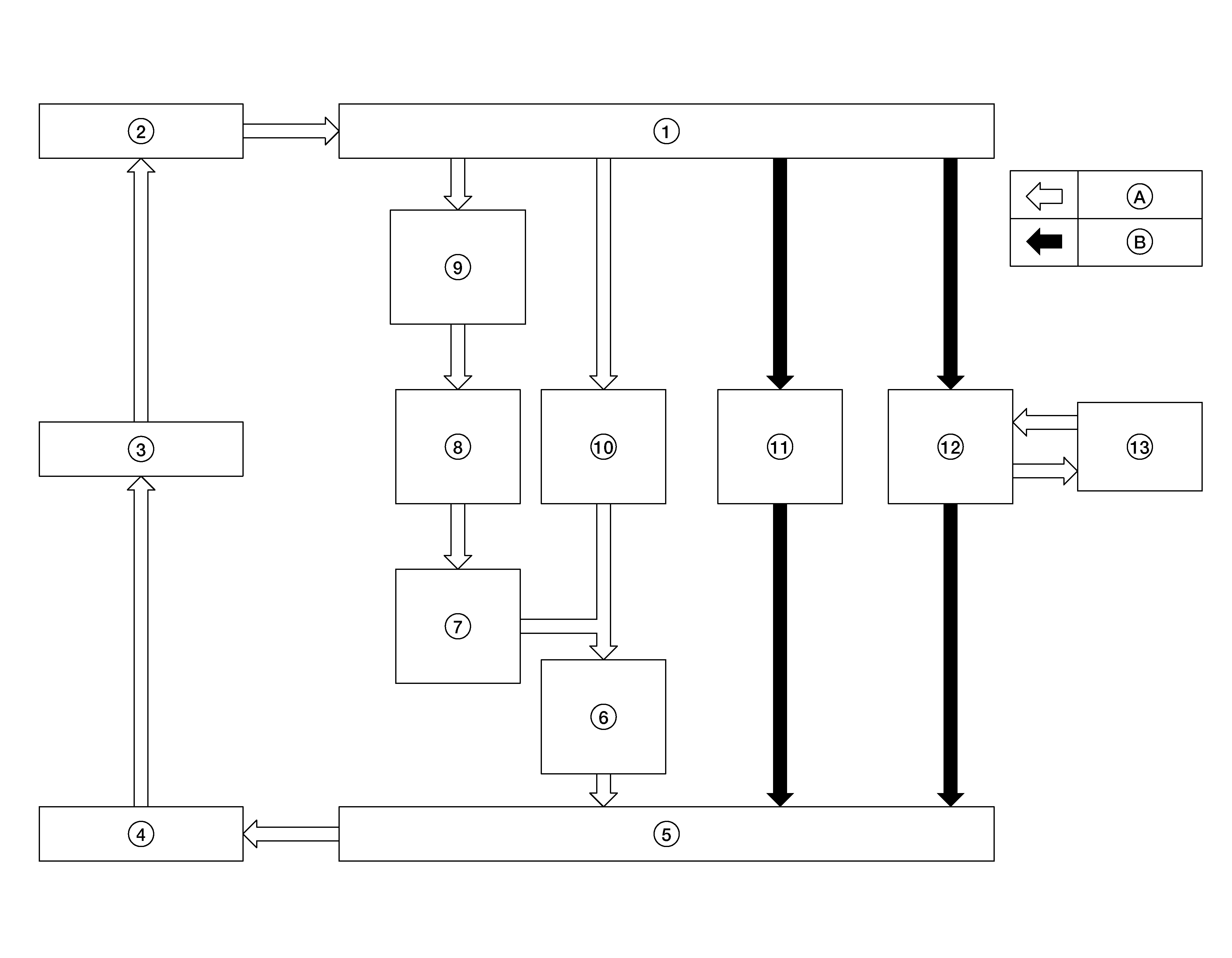

M/T Models
|
1. |
Multi-way control valve |
2. |
Cylinder head |
3. |
Cylinder block |
|
4. |
Water pump |
5. |
Water pump housing |
6. |
EGR cooler |
|
7. |
EGR volume control valve |
8. |
Turbocharger |
9. |
Electric throttle control actuator |
|
10. |
Heater core |
11. |
Oil cooler |
12. |
Radiator |
|
13. |
Reservoir tank |
A. |
Normal |
B. |
High temperature |
