Engine Lubrication System
WARNING: This page is about a different variant/trim than selected.
- An oil pump integrated in the oil pan and that uses a chain-driven system is adopted.
- A small-sized oil filter is adopted and is installed directly to the oil pan.
- An oil cooler is adopted and is installed directly to the oil pan.
|

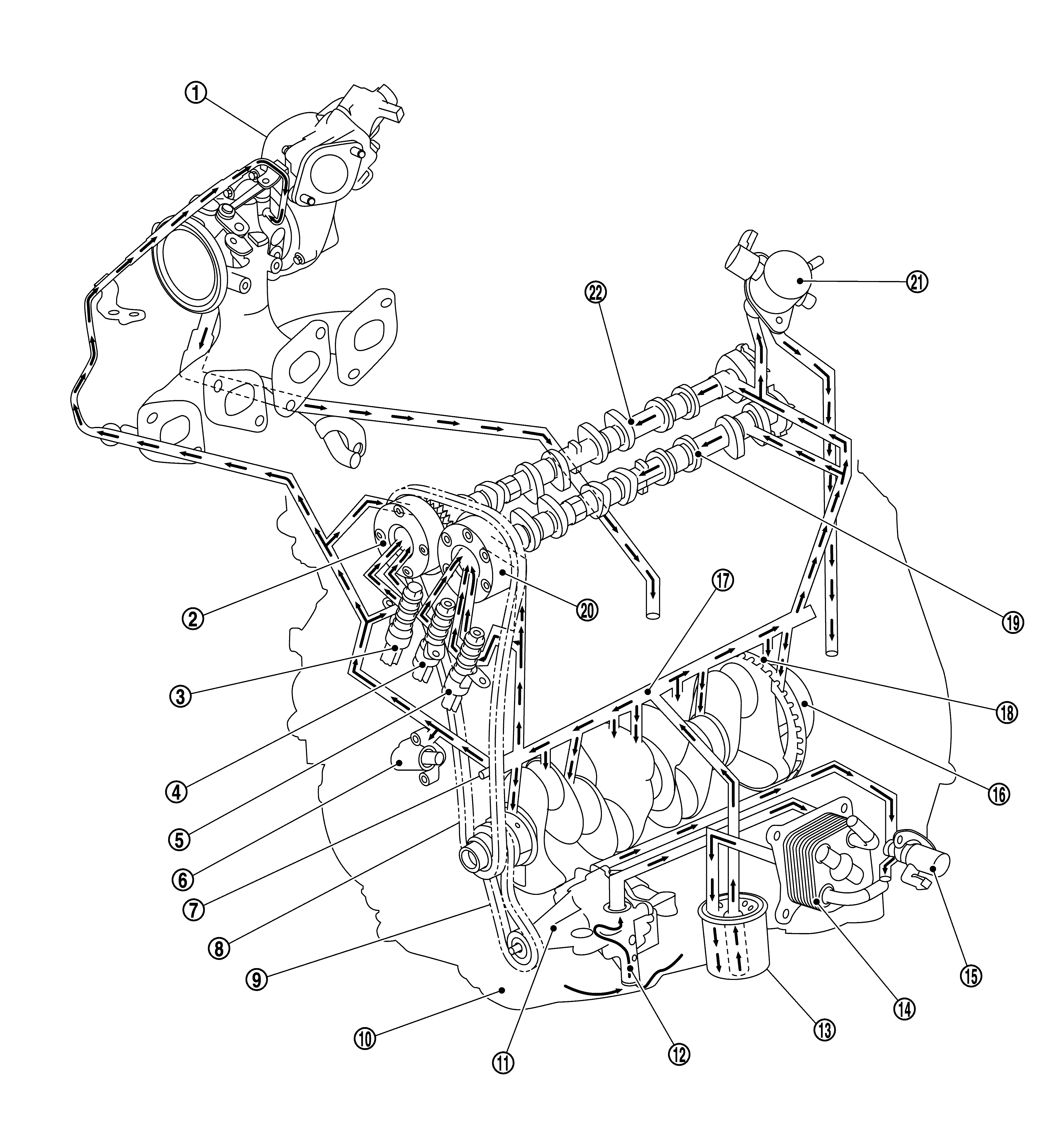

1. |
Turbocharger |
2. |
Camshaft sprocket (EXH) |
3. |
Exhaust valve timing control solenoid valve |
|
4. |
Intake valve timing intermediate lock control solenoid valve |
5. |
Intake valve timing control solenoid valve |
6. |
Chain tensioner |
|
7. |
Chain oil jet |
8. |
Timing chain |
9. |
Oil pump drive chain |
|
10. |
Oil pan |
11. |
Oil pump |
12. |
Oil strainer |
|
13. |
Oil filter |
14. |
Oil cooler |
15. |
Engine oil pressure control solenoid valve |
|
16. |
Crankshaft |
17. |
Main gallery |
18. |
Piston oil jet |
|
19. |
Camshaft (INT) |
20. |
Camshaft sprocket (INT) |
21. |
High-pressure fuel pump |
|
22. |
Camshaft (EXH) |
