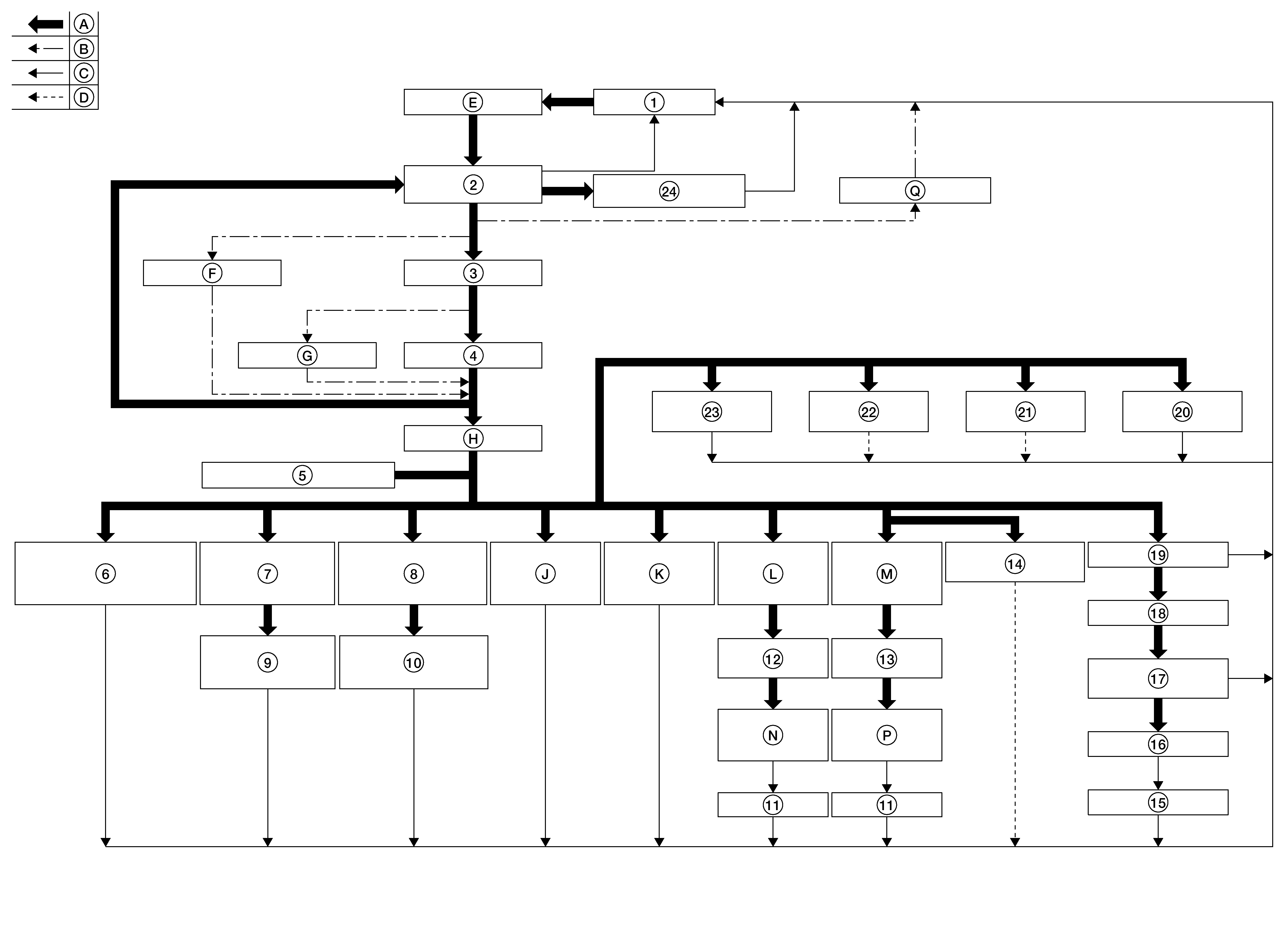

Engine Lubrication System Schematic
|
1. |
Oil pan |
2. |
Oil pump |
3. |
Oil cooler |
|
4. |
Oil filter |
5. |
Engine oil pressure sensor |
6. |
Intake valve timing intermediate lock control solenoid valve |
|
7. |
Intake valve timing control solenoid valve |
8. |
Exhaust valve timing control solenoid valve |
9. |
Intake valve timing controller |
|
10. |
Exhaust valve timing controller |
11. |
Valve lifter |
12. |
Camshaft (INT) |
|
13. |
Camshaft (EXH) |
14. |
High-pressure fuel pump |
15. |
Piston |
|
16. |
Connecting rod |
17. |
Connecting rod bearing |
18. |
Crankshaft |
|
19. |
Main bearing |
20. |
Exhaust manifold and turbocharger assembly |
21. |
Piston oil jet |
|
22. |
Timing chain oil jet |
23. |
Chain tensioner |
24. |
Engine oil pressure control solenoid valve |
|
A. |
Oil passage |
B. |
By-pass passage |
C. |
To oil pan |
|
D. |
Oil injection |
E. |
Oil strainer |
F. |
Relief valve |
|
G. |
Relief valve |
H. |
Main gallery |
J. |
Camshaft journal [INT (No. 1)] |
|
K. |
Camshaft journal [EXH (No. 1)] |
L. |
Camshaft journal [INT (No. 5)] |
M. |
Camshaft journal [EXH (No. 5)] |
|
N. |
Camshaft journal (INT) |
P. |
Camshaft journal (EXH) |
Q. |
Regulator valve |
