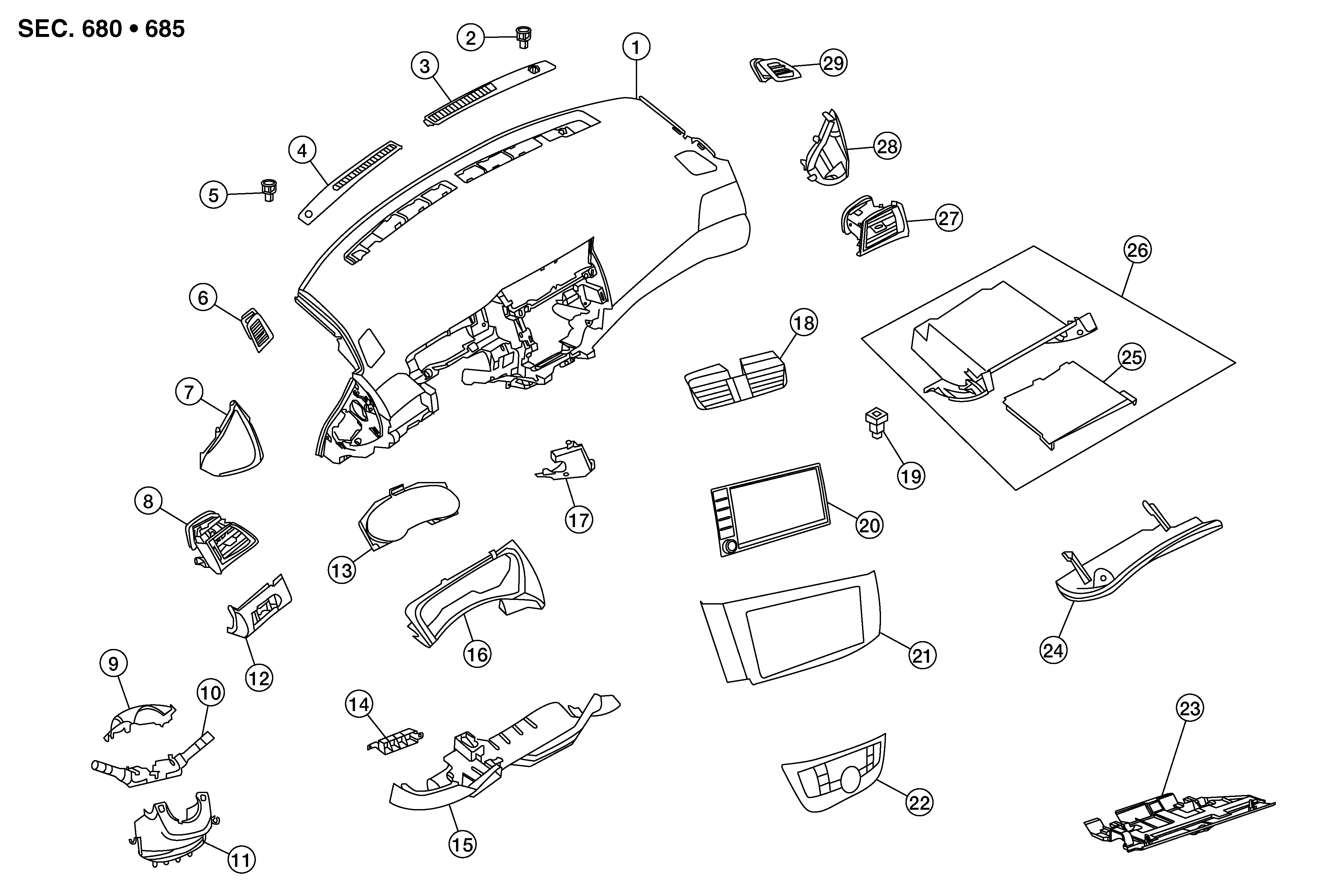

Exploded View

1.

Instrument panel assembly

2.

Sunload sensor (if equipped)

3.

Defroster grille (RH)

4.

Defroster grille (LH)

5.

Optical sensor (if equipped)

6.

Side defroster grille (LH)

7.

Instrument side finisher (LH)

8.

Side ventilator grille (LH)

9.

Steering column upper cover

10.

Combination switch

11.

Steering column lower cover

12.

Instrument finisher D

13.

Combination meter

14.

Switch carrier

15.

Instrument lower panel LH

16.

Cluster lid A

17.

Instrument finisher B

18.

Center ventilator grille assembly

19.

Hazard switch

20.

AV control unit/Audio unit

21.

Cluster lid C

22.

A/C switch assembly

23.

Instrument lower panel (RH)

24.

Glove box lid

25.

Glove box mat

26.

Glove box assembly

27.

Side ventilator grille (RH)

28.

Instrument side finisher (RH)

29.

Side defroster grille (RH)
